PSI Woodworking Products TEMPEST TEMP2PCX Manual

2hp portable cyclone dust collector

Advertisement

Quick Links

TEMP2PCX

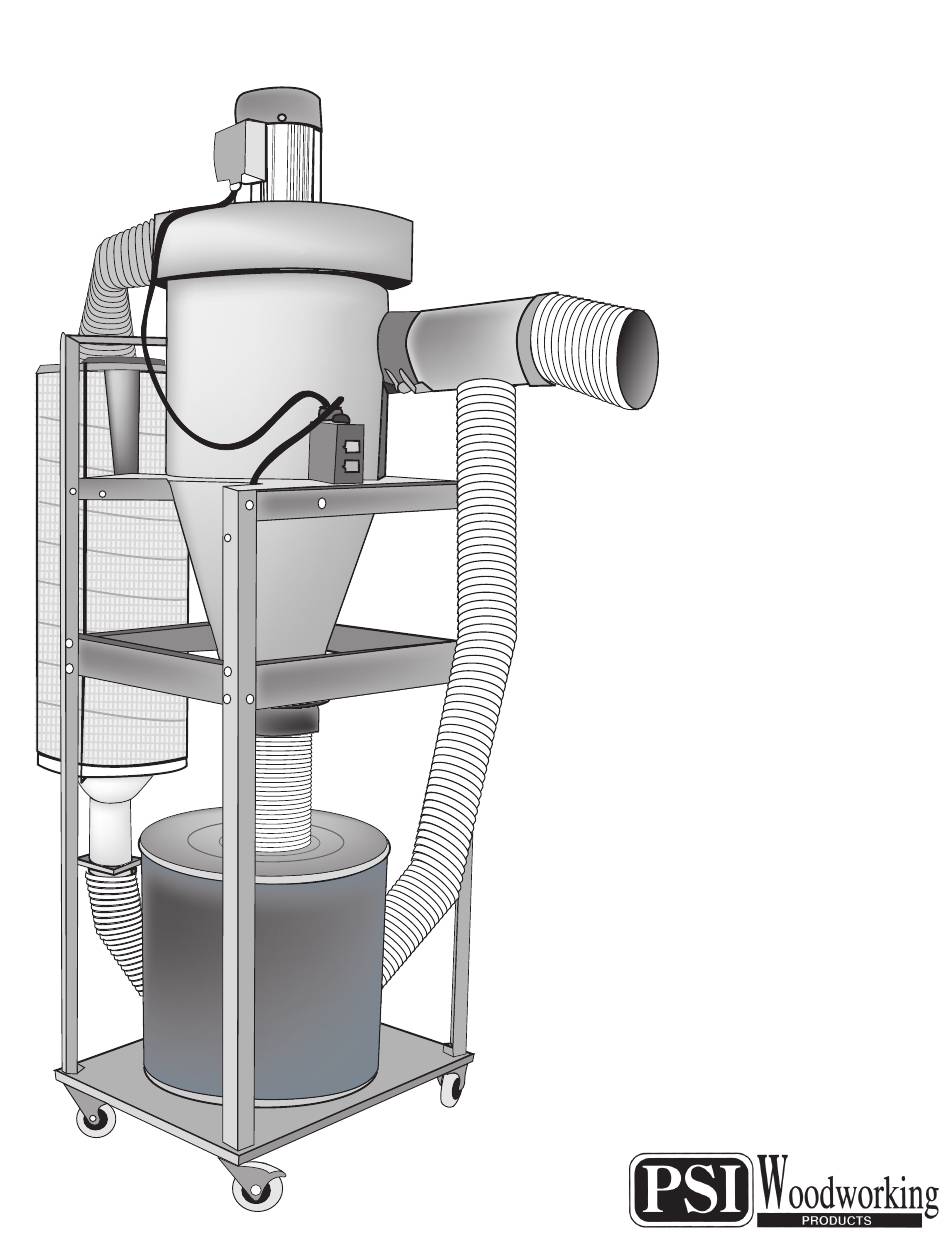

2HP PORTABLE CYCLONE
DUST COLLECTOR.
VERSION 1 • 3/10

Advertisement

loading
Need help?

Need help?

Do you have a question about the TEMPEST TEMP2PCX and is the answer not in the manual?

Questions and answers

Summary of Contents for PSI Woodworking Products TEMPEST TEMP2PCX

  • Page 1 TEMP2PCX 2HP PORTABLE CYCLONE DUST COLLECTOR. VERSION 1 • 3/10...
  • Page 2: Warranty

    Thank you for purchasing one of PSI’s growing family of woodworking products. This Portable TEMPEST™ cyclone system is engineered and manufactured to the highest standards of quality.You will find this unit to be a remarkable dust collection machine in your shop. Warranty This product is warranted against defects in material and workmanship for a period of five years on the motor and all other components.
  • Page 3: Specifications

    Features • Powerful motor blower unit has a proven flawless performance record • 1/2- micron filter cartridge for fine filtration • Captures over 99% of the dust and debris before it passes through the motor blower • Includes dolly with locking casters and 35 gallon fiber drum •...
  • Page 4 ASSEMBLY To begin assembly of your TEMP2CX you will need a pair of pliers, an adjustable wrench, a Phillips head screwdriver, a jig saw or snips, a drill with a HSS 1/8” bit and a couple of friends to assist. Lay out all of the components out to assure you know how parts connect as well as an account for all of the parts.
  • Page 5 C. Next, then attach the upper horizontal supports (10) using M8 x 20 carriage bolts (18) through followed by 8mm washer (14), follow with 8mm lock washer (17), then M8 nut (15). One support is for front; two are used for the back. The third upper support brace is attached at the highest holes of the long vertical supports (6).
  • Page 6 The Cyclone E. After the stand is assembled, attach the starter switch (22). The switch support plate (19) is placed on the front left side of the stand on the horizontal support (10). The switch plate is attached with one M8 x 20 carriage bolt (18) through the horizontal support and followed by 8mm washer (14), lock washer (17) and M8 nut (15).
  • Page 7 G. Now, with the assistance of one or two friends, bring the cyclone motor housing assembly (25, 26, 27, 28 and 39 — note that everything is assembled as a single piece) and align with cyclone cone (44) so that the holes align.
  • Page 8 Diagram #7 K. Use silicone sealer, duct tape or a metal sealing tape to seal all the connections for better air flow and performance. NOTE: This cyclone dust collector uses either 6” hose that can be reduced to most woodworking ma- chine port sizes as you move it to the machine you are using or can be a stationary unit where 6”...
  • Page 9 Using the Cyclone 1. Roll the cyclone to the proximity of your machine. 2. Connect the 6” hose to your machine port – adapt down to 4”, if necessary, with an appropriate 6” to 4” adapter. 3. Close the 4” recirculation blast gate to the bottom of the filter. 4.
  • Page 11 Pre-Assembled Motor Assembly...
  • Page 12 VERSION 1 • 3/10...
