Programming Guide
Contents:
Accessing the Main Menu..................... 2
Settings Menus................................... 4
System Settings............................ 6
Inverter Settings...........................10
Battery Monitor Settings................ 22
MATE3s Settings....................... 24

AGS.................................... 24

HBX.................................... 34

Grid Use Time....................... 36

Load Grid Transfer................. 37

AC Coupled Control................ 38

FLEXtime Schedule................ 39
Profile Wizard.................................. 40
Device Data Logs............................. 45
Event Logs...................................... 47
Firmware Update.............................. 48
Troubleshooting................................ 49
Specifications................................... 51
Navigation Keys (buttons)
Four navigation keys are located on the lower half of the MATE3s. They are protected by the front cover when it is
in place. The navigation keys allow the user to move around within the menu structure. They also provide access
to the Main Menu programming and the various components connected to the HUB.
o
The TOP navigation key (A) returns the operator to the top of the Main Menu for the selected device.
From the Main Menu, the TOP or LOCK keys return the operator to the Home screen.
o
The UP navigation key (B) returns to the menu item on the previous screen that was used to access the current screen.
It moves up, or back, one screen in the menu map for the selected device. See the MATE3s Menu Map.
o
The LOCK navigation key (C) locks the access to prevent unauthorized changes to the system settings. It also provides
access to the Enter Password screen. (See page 2.)
o
The PORT navigation key (D) cycles through each device connected to a port on the HUB Communications Manager.
See page 6 for OPTICS RE monitoring with this key.

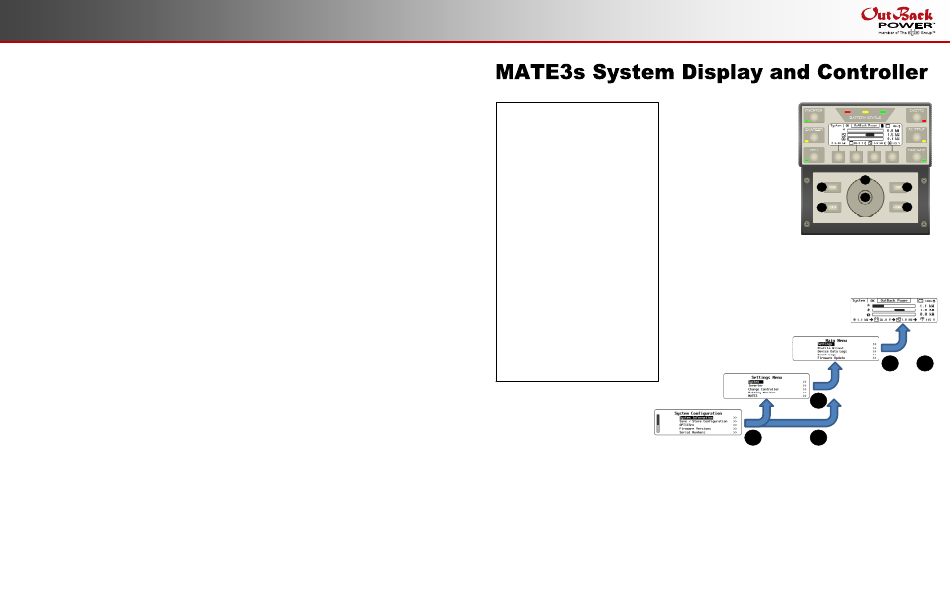

Features
A: TOP Navigation Key
B: UP Navigation Key
C: LOCK Navigation Key
D: PORT Navigation Key
E: Control Wheel
A
F: Center Button
C
NOTE: This document assumes knowledge of features, functions, and operation
of other OutBack products. Consult appropriate literature as necessary.
Main Menu
Settings Menu
B
B
System Menu
B
A
E
B
F
D
Home Screen
A
B
or
