Quick Installation Guide

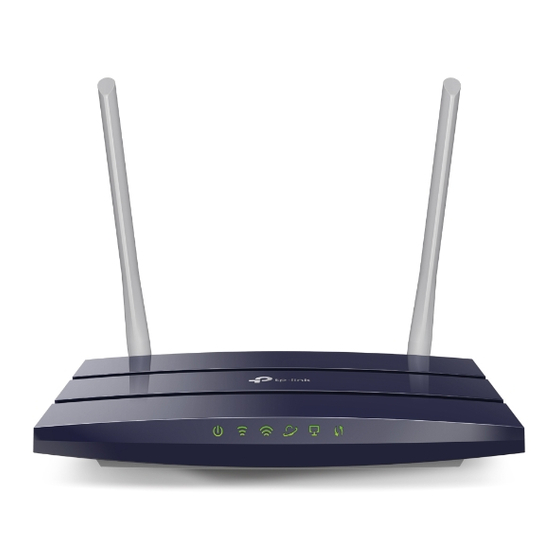

AC1200 Wireless Dual Band Router
7106506176 REV2.0.2
Connecting the Hardware
If your Internet connection is through an Ethernet cable from the wall
instead of through a DSL / Cable / Satellite modem, connect the Ethernet
cable directly to the router's Internet port, then follow steps 4 and 5 to
complete the hardware connection.
Internet
Modem
Power adapter
Router
1
Turn o the modem,
and remove the backup
battery if it has one.
2
Connect the modem to the
Internet port on your router
with an Ethernet cable.
3
Turn on the modem, and
then wait about 2 minutes
for it to restart.
Power adapter
4
Turn on the router.
5
Verify that the hardware
connection is correct by
checking these LEDs.
Power
2.4G
5G
Internet
On
On
On
On
Note: If the 2.4G LED
and 5G LED
are o , please press the Wi-Fi button
on the rear panel for 2 seconds, then
check the LEDs again in a few seconds.
