Modellbau Joost Tracer Construction Manual

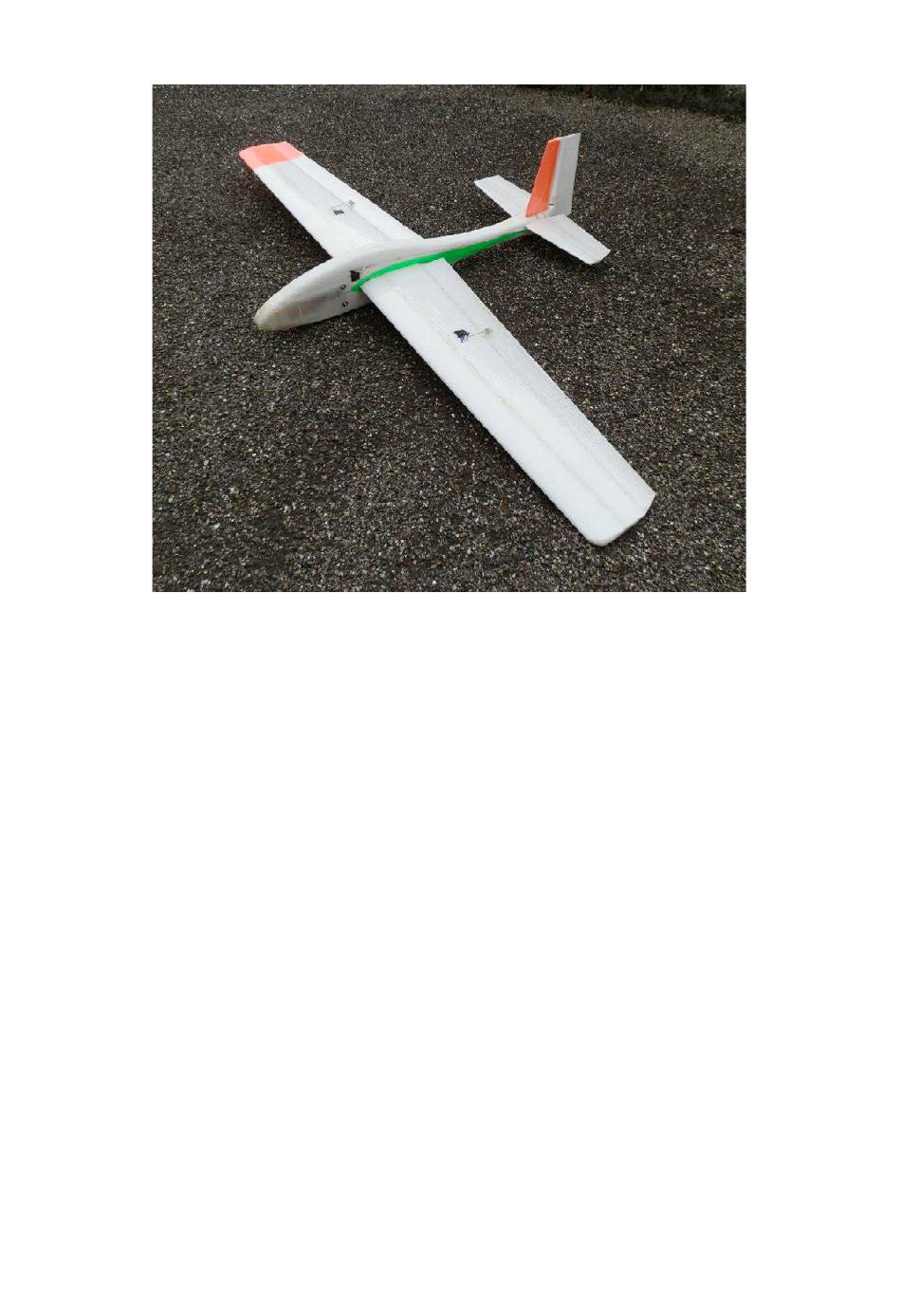

The Tracer is a top aerobatic glider, which is excellent for training all kind of aerobatic maneuvers. And all

without risk, because if it is crashes you can just fly on, without glueing!

Daten

Wingspan: 150 cm

Flyingweight: 550 g

Servos: 4 x 9g (Metalgear recommended)

Batterie: 4-5 Cells 1500-2000mAh

Receiver: min. 4 Channel

Attention: The construction requires technical understanding and care. Since we can not verify the correct

assembly of the model, we assume no liability for injury or damage that may arise from this model aircraft.

Close flybys of people or other disorders can lead to serious injury, and must be avoided.

Content of the kit

· EPP fuselage (2 parts)

· EPP wings (2 parts)

· EPP rudder

· EPP elevator (2 parts)

· 2 pc. 8x800mm CFK tube (wingspar)

· 2 pc. 6x750mm CFK tube (fuselage reinforcement)

· 4x500mm CFK rod (elevatorspar)

Construction manual

Was Sie zum Bau speziell benötigen:

- PU-Glue

- Jab Saw

- Iron

- a sharp knife

- Sanding block (80 grit)

· 250x6mm aluminium Tube (wingjoiner)

· 40x6mm CFK tube (elevatorbearing)

· 0,3m x 3 mm CFK rod (rudderspar)

· 4 Control horns

· 2m 75µ laminating film

Table of Contents

Need help?

Do you have a question about the Tracer and is the answer not in the manual?

Page 1 Construction manual The Tracer is a top aerobatic glider, which is excellent for training all kind of aerobatic maneuvers. And all without risk, because if it is crashes you can just fly on, without glueing! Daten Was Sie zum Bau speziell benötigen:...
Page 2 General EPP can be glued with many adhesives, e.g. UHU Por (very elastic), 5 min epoxy (high bond strength, very hard not to be recommended,) or super glue (very light, brittle). We recommend PU glue, because this is very gap-fil- ling, which is important for sticking in the spars.
Page 3 Wings The two remainig wooden ribs get glued on the inner side of the wings. Afterwards the EPP rests get remo- ved from the spar slot. The 8mm CFK tubes must be cut to length, that they flush with the wingtip and remain 20mm longer on the inner rib.
Page 4 Elevator The 40x6mm CFK tube get slided onto the 4mm CFK rod. Drill a 4mm hole in of the control horns and slide it also onto the rod besid the tube. Same with the two EPP elveator parts. The rod get cut in length so that it flushes with the tips of the EPP parts.
Page 5 +/- 60°. For the first flights we suggest dualrate to +/-25°. These are only suggestions and can be varried to the preferences of the pilot. Have fun and great flights! Modellbau Joost Ad.-Stifter Weg 18 95632 Wunsiedel info@modellbau-joost.de www.modellbau-joost.de...
