- Page 1 ® N-Tron Series 1000 Unmanaged Gigabit Industrial Mid-Span POE Injectors Hardware Guide | August 2016...
- Page 2 In no event shall Red Lion be liable for any incidental, special, indirect or consequential damages whatsoever included but not limited to lost profits arising out of errors or omissions in this manual or the information contained herein.
-
Page 3: Table Of Contents
Table of Contents Revised 2016-08-30 Drawing No. LP0986 Table of Contents Preface Disclaimer ..................iii Compliance Information . - Page 4 Red Lion Controls N-Tron 1000 Series Limited Warranty ....... . .
-
Page 5: Preface
While every effort has been made to ensure that this document is complete and accurate at the time of release, the information that it contains is subject to change. Red Lion Controls is not responsible for any additions to or... -
Page 6: Environmental Impact Statement
As needed, Documentation Notes and or Product Bulletins will be provided between major releases to describe any new information or document changes. The latest online version of this document and all product updates can be accessed through the Red Lion web site http://www.redlion.net/documentation. -
Page 7: General Safety Cautions And Warnings
Drawing No. LP0986 General Safety Cautions and Warnings CAUTION: If the N-Tron series equipment is used in the manner not specified by Red Lion, the protection provided by the equipment may be impaired. ATTENTION: Si l' N-Tron série équipement est utilisé d'une manière non spécifiée par Red Lion, la protection fournie par l'équipement peut être compromise. -
Page 8: Environmental Safety Cautions And Warnings
Revised 2016-8-30 Preface Drawing No. LP0986 WARNING: A Recognized or Listed fuse, rated maximum 3A, minimum 30VDC, must be installed on the line side of the device. Applies to 1000-POE4+ only. ALERTE: Un fusible reconnu ou classé, classé 3A maximale, 30VDC minimum, doit être installé sur le côté... - Page 9 Preface Revised 2016-8-30 Drawing No. LP0986 WARNING – Explosion Hazard – Do not connect or disconnect any connections while circuit is live unless area is known to be non-hazardous. ALERTE - Risque d'explosion - Ne pas brancher ou débrancher les connexions lorsque le circuit est sous tension sauf si la zone est connue pour être non dangereux.
- Page 10 Revised 2016-8-30 Preface Drawing No. LP0986 viii N-Tron® Series Unmanaged Gigabit Industrial Mid-Span PoE+ Injector Hardware Guide...
-
Page 11: Introduction And Specifications

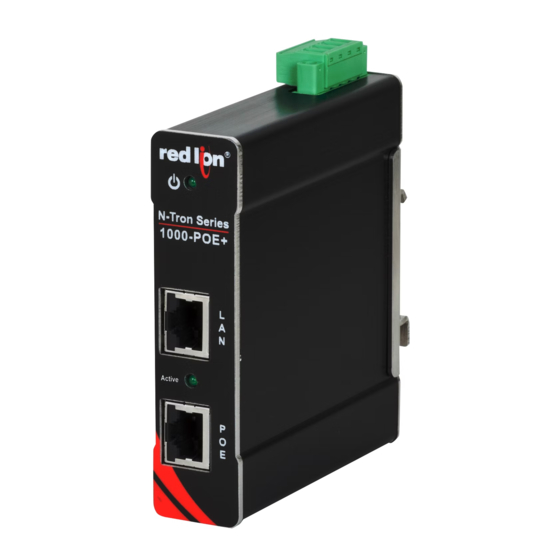

Section 1 Introduction and Specifications Introduction Red Lion’s 1000 POE+ injector series simplifies network device deployment by combining Gigabit data communications and power over a single Ethernet network cable. Ideal for deployment in industrial networks including oil and gas, water/wastewater, utility, transportation, mining, and factory floor applications, the 1000- POE+ and 1000-POE4+ injectors provide auto-sensing plug-and-play performance to PoE+ devices like video cameras and wireless access ports. -
Page 12: Key Specifications
Revised 2016-08-30 Introduction and Specifications Drawing No. LP0986 1000-POE+ Key Specifications 1000-POE+ Key Specifications Table 1. 1000-POE+ Key Specifications PHYSICAL ELECTRICAL Height 4.30 in. (10.92 cm) Input Voltage 10-30 VDC Width 1.00 in. (2.54 cm) Steady Input Current 1.32 A @ 24 VDC (UNDER FULL LOAD) Depth 3.63 in. -
Page 13: Dimensions
Introduction and Specifications Revised 2016-08-30 Dimensions Drawing No. LP0986 Dimensions N-Tron® Series Unmanaged Gigabit Industrial Mid-Span PoE+ Injector Hardware Guide... -
Page 14: Regulatory Approvals
Revised 2016-08-30 Introduction and Specifications Drawing No. LP0986 Product Ordering Guide Product Ordering Guide PART NO. DESCRIPTION 1000-POE+ Unmanaged Industrial Single-Port Gigabit Mid-Span PoE Injector URMK Universal Rack Mount Kit 1000-PM Panel Mount Assembly, 1000-POE+ NTPS-24-3 DIN-Rail Power Supply 24VDC @ 3 Amp Regulatory Approvals Safety For use in Class I, Division 2, Groups A, B, C and D Hazardous Locations. -
Page 15: 1000-Poe4
Introduction and Specifications Revised 2016-08-30 Drawing No. LP0986 1000-POE4+ The Industrial 4-Port Gigabit PoE+ midspan injector is designed to provide Power over Ethernet for multiple PoE capable devices where running a power line is either not possible or not cost effective. This feature allows an end user to power a PoE camera, wireless access point, or any other PoE capable device without the need for running separate wires for power. -
Page 16: Key Specifications
Revised 2016-08-30 Introduction and Specifications Drawing No. LP0986 1000-POE4+ Key Specifications 1000-POE4+ Key Specifications Table 2. 1000-POE4+ Key Specifications PHYSICAL ELECTRICAL Height 5.9 in. (14.99 cm) Input Voltage 22-49 VDC Width 2.01 in. (5.11 cm) Steady Input Current 5.25 A @ 24 VDC (UNDER FULL LOAD) Depth 5.68 in. -
Page 17: Dimensions
Introduction and Specifications Revised 2016-08-30 Dimensions Drawing No. LP0986 Dimensions N-Tron® Series Unmanaged Gigabit Industrial Mid-Span PoE+ Injector Hardware Guide... -
Page 18: Regulatory Approvals
Revised 2016-08-30 Introduction and Specifications Drawing No. LP0986 Product Ordering Guide Product Ordering Guide PART NO. DESCRIPTION 1000-POE4+ Unmanaged Industrial 4-Port Gigabit Mid-Span PoE Injector URMK Universal Rack Mount Kit 1K26-PMK Panel Mount Assembly, 1000-POE4+ NTPS-24-10 DIN-Rail Power Supply 24VDC @ 10 Amp Regulatory Approvals Safety ANSI/ISA 12.12.01-2015 Class I and II, Div. -
Page 19: Installation
Revised 2016-05-25 Installation Introduction Drawing No. LP0986 Section 2 Installation Introduction This section contains the information and procedures necessary to unpack, inspect, install and connect the N-Tron® Series Unmanaged Gigabit Industrial Mid-Span PoE+ Injector equipment. Unpacking Remove all the equipment from the packaging, and store the packaging in a safe place. Inspection Please ensure the shipping package contains the following items in undamaged condition: 1. -
Page 20: Din-Rail Mounting
1000-PM 1K26-PMK Most Red Lion N-Tron Series products are designed to be mounted on industry standard 35mm DIN-Rail. How- ever, DIN-Rail mounting may not be suitable for all applications. Our Universal Rack Mount Kit (P/N: URMK) can be used to mount the POE+ injectors enclosures to standard 19" racks, and our Panel Mount Assembly (P/N: 1000-PM) can be used to mount the 1000 Series enclosures to a panel or any other flat surface.The 1000-POE4+... -
Page 21: Connections
Revised 2016-05-25 Installation Installing/Mounting Drawing No. LP0986 Connections Power Connection (Top View) 1. Unscrew & Remove the DC Voltage Input Plug from the top header. 2. Install the DC Power Cables into the Plug (observing polarity on unit). 3. Plug the Voltage Input Plug back into the top header. 4. - Page 22 Revised 2016-05-25 Installation Drawing No. LP0986 Installing/Mounting Users may run a drain wire & lug from the screw provided on the top face of the enclosure(back face for the 1000-POE+). In the event the provided grounding screw has been lost, care should be taken to limit the penetration of the outer skin by less than 1/4”.
-
Page 23: Rj45 Connector Crimp Specifications
Revised 2016-05-25 Installation Drawing No. LP0986 RJ45 Connector Crimp Specifications RJ45 Connector Crimp Specifications Please reference the illustration below for your Cat5 cable specifications: Typical Application 2-13 N-Tron® Series Unmanaged Gigabit Industrial Mid-Span PoE+ Injector Hardware Guide... -
Page 24: Connecting The Unit
Revised 2016-05-25 Installation Drawing No. LP0986 Connecting the Unit Connecting the Unit For 10Base-T ports, plug a Category 3 (or greater) twisted pair cable into the RJ45 connector. For 100Base-T ports, plug a Category 5 (or greater) twisted pair cable into the RJ45 connector. Connect the other end to the far end station. -
Page 25: Operation And Maintenance
Operation and Maintenance Revised 2016-05-25 Introduction Drawing No. LP0986 Section 3 Operation and Maintenance Introduction The N-Tron Series® Unmanaged Gigabit Industrial Mid-Span PoE+ Injectors provide operating status information through the LED indicators located on their front panels. Controls and Indicators Front Panels From Top to Bottom V1 Power LED... -
Page 26: Maintenance
Revised 2016-05-25 Operation and Maintenance Drawing No. LP0986 Maintenance LEDs: The table below describes the operating modes (Port LEDs are not operational for PSE-style device and will not indicate link or activity.) Color Description Green Valid power is applied to corresponding voltage input. Invalid Power is applied to corresponding voltage input. - Page 27 LIMITED WARRANTY (a) Red Lion Controls Inc., Sixnet Inc., N-Tron Corporation, or Blue Tree Wireless Data, Inc. (the "Company") warrants that all Products shall be free from defects in material and workmanship under normal use for the period of time provided in "Statement of Warranty Periods"...
