Parallel Motion Fenders Handling, Storage, Installation and Maintenance Manual Trelleborg Marine Systems is a world leader contents in the design and manufacture of advanced marine fender systems. we provide bespoke solutions for large and complex PArAllel MoTion FenderS projects all over the world. best practice design and... - Page 4 A Smarter Approach at every stage A smarter approach to… Consultation ConCepts DesiGn ManufaCture consultation from the earliest conceptual design in your concepts are taken to our our entire product range project phase to ensure the local office – with full Engineering centers of is manufactured in-house, optimum fender, mooring,...
- Page 5 When you choose Trelleborg you ensure your expectations will be met, because we deliver a truly end-to-end service – retaining vigilance and full control at every stage.
-
Page 6: Parellel Motion Fender System

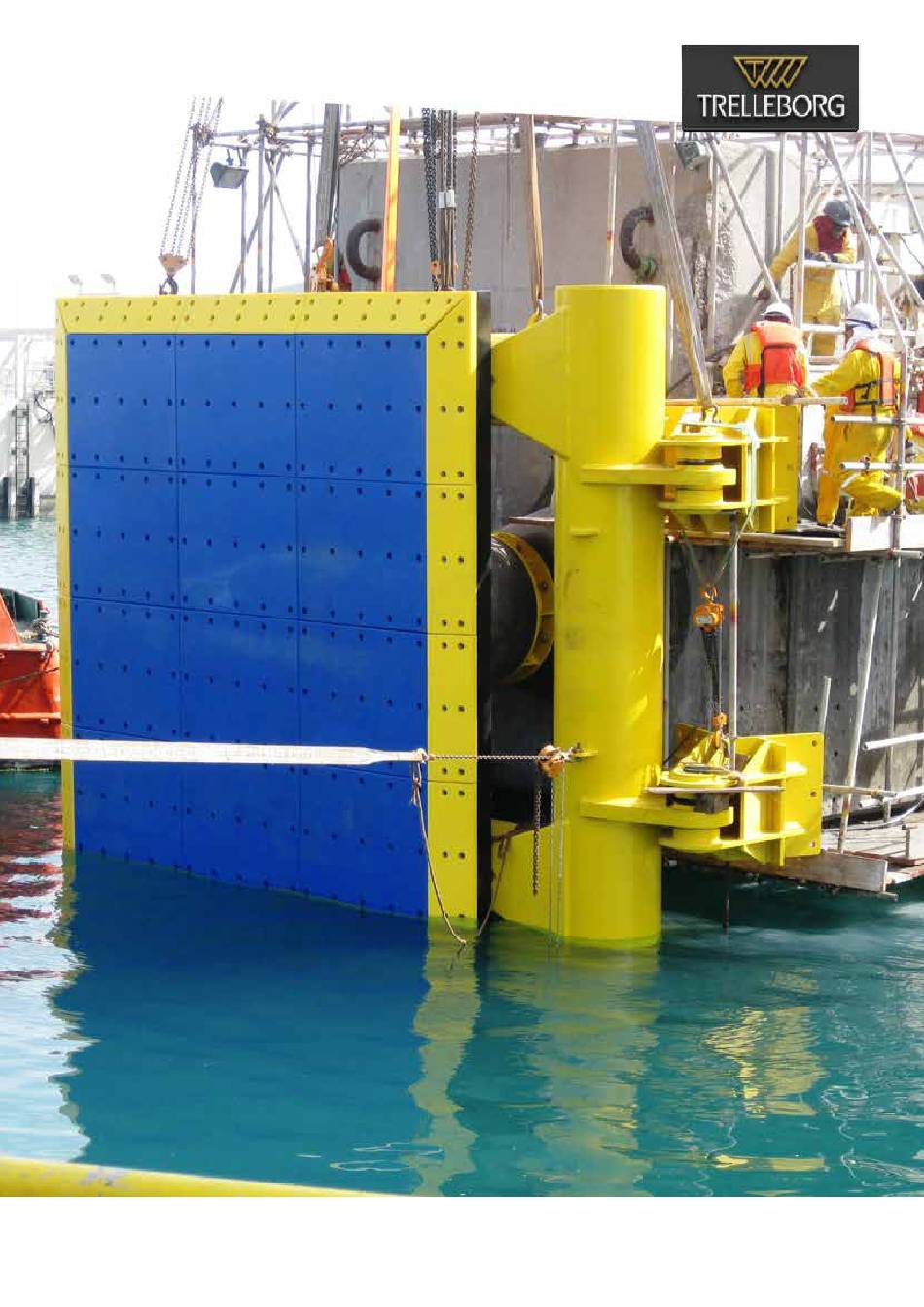

Parallel Motion Fender System Parallel Motion fender system keeps the panel vertical at all times – irrespective of where the impact loads are applied – but simultaneously allows the panel to rotate on plan to accommodate large berthing angles. Parallel Motion fenders can absorb the full design energy irrespective of impact level. As Parallel Motion fenders are mostly pre-assembled in the factory, installation is simple and fast. - Page 7 The maintenance-free stainless steel pins and bearings allow free rotation to accommodate berthing angles, also eliminating moments in the hinge pin. uHMW-Pe face pads Trelleborg ‘double sintered’ uHMw-PE face pads are standard to minimize friction and maximize service intervals. check chains (optional)
- Page 8 Parallel Motion Fender System ProVen in PrAcTice reverse mounted twin cone fender PMf system MV fender PMf system installed on concrete structure standard mounted twin cone fender PMf system reverse mounted twin cone fender PMf system installed on concrete structure installed on steel pile...
- Page 9 Parallel Motion Fender System ProVen in PrAcTice reverse mounted single cone fender PMf system MV fender PMf system installed on concrete structure...
-
Page 10: Handling
Handling The Parellel Motion fenders (PMf) unit will be delivered completely plastic wrapped and protected with suitable paddings at the base and corners. - Page 11 Handling MATeriAlS / conSuMABleS required inForMATion After unloading, all the equipment must be placed on Timber / rubber blocks timber / rubber blocks to avoid damage to the plastic or painted surfaces. equiPMenT required inForMATion refer to the general Arrangement drawing for the total crane weight of the equipment.
-
Page 12: Storage
Storage At all times, all equipment must be stored properly to avoid any damage, environmental damage or damage occurring from nearby moving equipment. - Page 13 Storage MATeriAlS / conSuMABleS required inForMATion All equipment must be placed on timber / rubber Timber / rubber blocks blocks to avoid damage to plastic or painted surfaces. Tarpaulin Heavy-duty waterproof plastic. ProcedureS Timber / rubber blocks must be placed on a dry ❙...
-
Page 14: Installation
Installation... - Page 15 The fender must be placed on timber / rubber blocks Timber / rubber blocks to avoid any damage to the rubber body. equiPMenT required inForMATion Fasteners supplied by Trelleborg Spanner suitable to the supplied bolt size recoMMended equiPMenT inForMATion general PPe As per site / plant requirements 2.1.1 Scn fenders to Steel Panel...
- Page 16 installation 2.1 Fender To STeel PAnel 2.1.1 Scn fenders to Steel Panel installing ”back-to-back” Scn fenders on Steel installing MV fenders panel of the PMF unit Place the frontal frame face down to the ground, ❙ The ”back-to-back” scN fenders are to be fixed supported on timbers.
- Page 17 The PMf must be placed on timber / rubber blocks Timber / rubber blocks to avoid any damage to the rubber body. equiPMenT required inForMATion Fasteners supplied by Trelleborg Spanner suitable to the supplied bolt size recoMMended PerSonAl ProTecTiVe inForMATion equiPMenT...
- Page 18 installation 2.2 PMF uniT To STrucTure 2.2.1 installation on concrete structure Pivot the PMf unit and position it in vertical ❙ orientation. Move PMf unit to the structure where it is to be ❙ installed with the assistance of a crane. Align the fender / spool holes with the anchor ❙...
- Page 19 2.2 PMF uniT To STrucTure 2.2.2 installation on steel pile equiPMenT required inForMATion Fasteners supplied by Trelleborg recoMMended PerSonAl ProTecTiVe inForMATion equiPMenT general PPe As per site / plant requirements While installing on steel pile: Mounting of the hole locations and connecting plate sizes of the pile structure must be in accordance to the approved anchor layout drawing.
-
Page 20: Maintenance And Inspection
Maintenance and Inspection... - Page 21 for maintenance of steel panel and chains, refer to MN-I&M-fEN-sYs-v1.0-EN, 2017. for inspection, repair and maintenance of rubber fenders, refer to MN-I&M-rub-scN&scK-v1.0- EN, 2017 / MN-I&M-rub-MV&uE-v1.0-EN, 2017. PMf units are equipped with orkot bearings which do not require any periodic maintenance other than regular checks that the bearings are still in place and are operating normally without excessive clearance.
-
Page 22: Appendix
Appendix Torque table based on Anchor loading Scn FenderS (F1.9 To F3.1) AXiAl Force co-eFFicienT Torque (T) n.m Fender BolT SiZe (kn) (F) T =KFd scN 2250 4614 scN 2250 3765 scN 2000 3190 scN 1800 2812 scN 1600 2281... - Page 23 Torque table based on Anchor loading Scn FenderS (F0.7 To F1.8) AXiAl Force co-eFFicienT Torque (T) n.m Fender BolT SiZe (kn) (F) T =KFd scN 2250 2190 scN 2250 2035 scN 2000 1508 scN 1800 1338 scN 1600 1259 scN 1400...
-
Page 24: References
References This section contains references of other associated installation and maintenance manuals as mentioned below. docuMenT no. deScriPTion MN-I&M-fEN-sYs-v1.0-EN, 2017 Handling, storage, Installation, Inspection & Maintenance Manual for fender system. MN-I&M-rub-scN&scK-v1.0-EN, 2017 Handling, storage, Installation, Inspection & Maintenance Manual for scN/scK rubber fender. MN-I&M-rub-MV&uE-v1.0-EN, 2017 Handling, storage, Installation, Inspection &... - Page 26 Trelleborg Ab has made every effort to ensure that the technical specifications and product descriptions in this catalog are correct. The responsibility or liability for errors and omissions cannot be accepted for any reason whatsoever. customers are advised to request a detailed specification and certified drawing prior to construction and manufacture.
