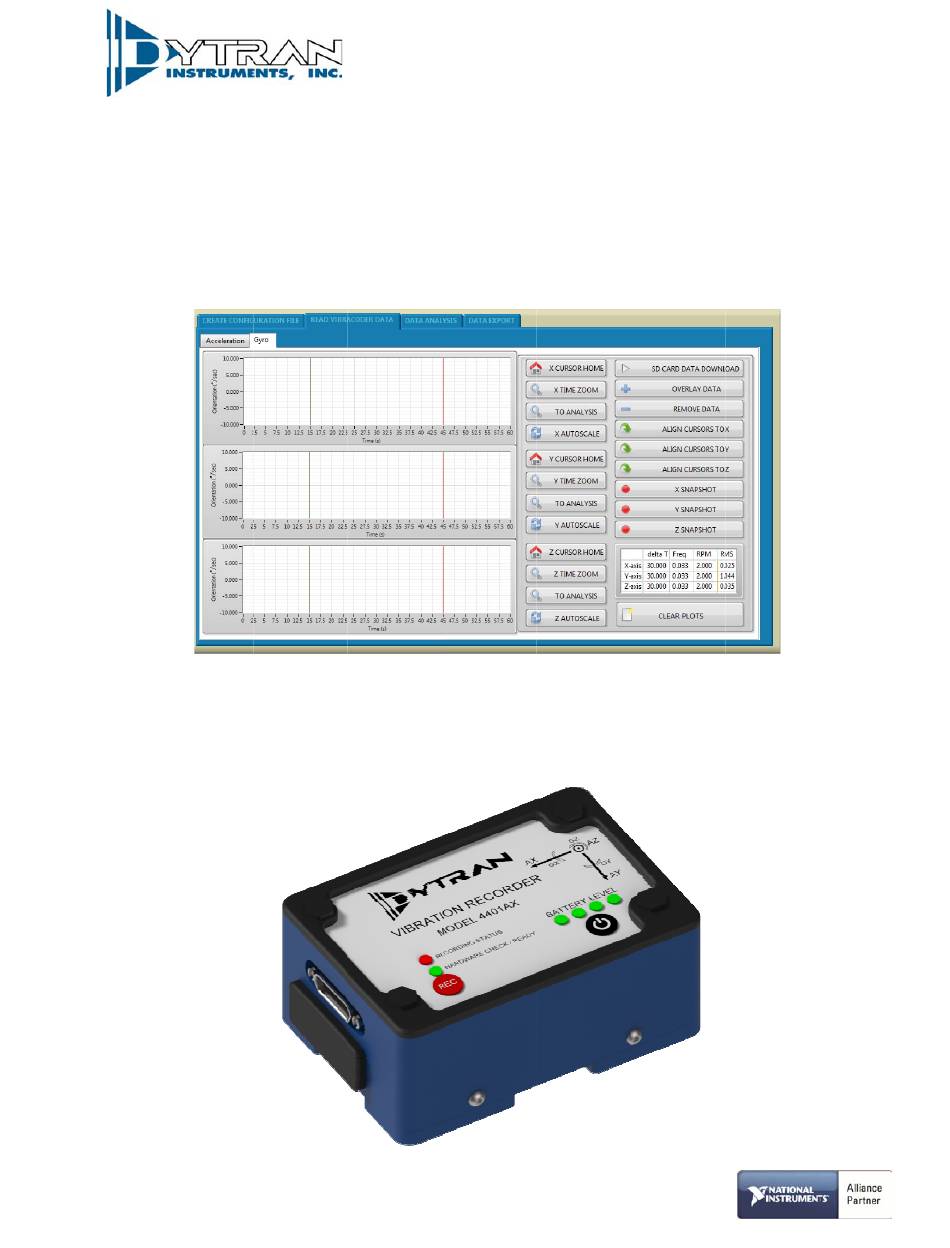

  • Page 1 . c o m • e - m a i l : i n f o @ d y t r a n . c o m OG4401AX  Rev A, ECN 1344 4 2  OPERATING G GUIDE – O OG4401AX  4401AX VI IBRATION R ECORDER           ...
  • Page 2: Table Of Contents

    Device Features .............................. 3  II.  Software Features ............................. 3  III.  Acronyms used in this manual .......................... 3  IV.  Minimum System Requirements  ........................ 4  V.  Installation  ................................. 4  VI.  Operation ................................ 6  VII.  Mechanical configuration and mounting ...................... 11  VIII.  Data recording considerations ........................ 12  IX.  Software License, Restrictions, and Disclaimer  .................... 13                      Note: As part of our commitment to continuous product improvement, Dytran shall make  modifications to this document without notice or restriction.       Rev A, ECN 12775    Page | 2 ...
  • Page 3: Device Features

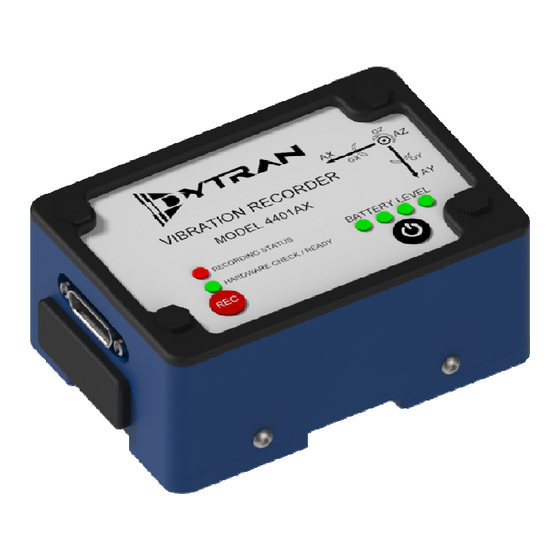

      Dytran Instruments Model 4401AX is a vibration recorder with built‐in 3‐axis MEMS  accelerometer and 3‐axis Gyroscope capable of measuring and recording acceleration and  orientation in three orthogonal directions and pitch, yaw, and roll. This data is written to a  standard micro SD card.  Device Features ‐System components:  4401AX Vibration Recorder  Approved SD card ‐ Sandisk Extreme Plus 32GB ‐ SDSQXVF‐032G‐GN6MA  9009 Software Toolkit (Can be downloaded from Dytran Vibration Recorder Product Page )  ‐4401AX is powered through a rechargeable li‐po battery or external power from 8–32 V DC.  ‐Built‐in firmware handles acceleration in three axes acceleration and gyroscope data storage  on the SD card.  Software Toolkit Features ‐ Immediate data retrieval from the SD card to the PC  ‐ Easy cursor operation for data selection, zoom, and cursor alignment  ‐ Snap Shot with the press of a button  ‐ Data overlay  ‐ Anti‐Alias Filtering  ‐ Oversampling  ‐ FFT analysis  ‐ Data export  ‐ Real Time Stamp  III. Acronyms used in this manual GUI‐ Graphical User Interface  FFT‐ Fast Fourier Transform  JPG‐Joint Photographic File format  ASCII‐American Standard Code for Information Interchange  TDMS‐Technical Data Management Solution (Binary and ASCII file saving option for smaller file  sizes with stored header information) ...
  • Page 4: Minimum System Requirements

    Operating System: Windows Vista/Seven/Win8 32/64‐bit   CPU:  Intel i3 or better  RAM: 1 GB   Hard Disk space: 1 GB   Display Resolution 1280×780.  Installation   Insert  the  included  Sandisk  Extreme  Plus  32GB  into  MicroSD  Card  Reader.  Double  click  on  the  drive  letter, navigate to Autorun.exe. Additionally, if this drive has already been formatted, the software can  be downloaded from the Vibration Recorder Product Page on the Dytran Website.      Figure 1: Autorun Menu  There are two additional installations that are required prior to installing the 9009 software.  Install Data  Plug‐ins by clicking the button on the Autorun menu.  This will install plug‐ins for data export.   To install the runtime software, click on 9009 to start the installation of the 9009 4401AX VibraCorder  software. Make sure that no other applications are open and proceed.   1. When the installer initialization is completed, click on “Next”. In the following window, the user can  define the directories in which the 4401AX VibraCorder software and the National Instrument libraries  will be saved. Click on “Browse” to select a different folder if desired, and click on “Next” to proceed.    Rev A, ECN 12775    Page | 4 ...
  • Page 5     Figure 2: Install Destination Directory   2. In the next window, select “I accept the license agreement...” to accept Dytran 4401AX VibraCorder  license conditions and then click on “Next”.  3. Select “I accept the license agreement...” to accept National Instrument license conditions and then click  on “Next”.   4. At this point, select “I accept 2 license agreement(s)...” to accept Microsoft Silverlight 5 EULA and  Microsoft Silverlight Privacy Statement conditions. Click on “Next” to proceed.   5. The “Start Installation” window will appear. It indicates whether a component will be upgraded or  installed for the first time. Click on “Next” to start the installation. This process may take a few minutes.  Please wait until the installation is complete.   6. When the installation is complete, click on “Next” to proceed.   7. If asked, reboot your PC by clicking on “Restart” in the following window.      Figure 3: Restart after Installation Completed.     Rev A, ECN 12775    Page | 5 ...
  • Page 6: Operation

      Operation   WARNING: Do not connector or disconnect the 25 pin external micro d‐sub connector while the  4401 is powered. This may result in damage to the unit and/or loss of data.    1. After the computer is restarted, the user will find the “9009 VibraCorder” icon in the Windows menu, as  shown in Figure  below. A Shortcut will also be created on the Desktop for ease of access.    Figure 4: VibraCorder Icon.   2. Insert the SD card into your PC and launch the software.    Figure 5: 9009 Software   3. Create configuration file – this tab allows the creation of the configuration file for the data acquisition.  Rev A, ECN 12775    Page | 6 ...
  • Page 7     3.1 It is recommended to format your SD card before every use. Use SD card drive navigation window to             select the card and press “Format SD card” button.  3.2 Free run is determined by switch on hardware on. Default value of 40 pre‐triggered samples is  provided.  3.3 Three different sampling rates are available. The measurements bandwidth is effectively half of the  selected sampling rate. These rates are 250, 1200, and 4280 Hz.  3.3 “Keep running after triggering” check box will allow for continuous recording once the triggered value  is reached (Triggered acquisition has to be selected for this feature).  3.6 After the popup “Config.txt created” appear, press “Ok” button and safely eject the SD from the slot  Insert the Micro SD card into the 4401AX Micro SD card slot and press the “Power” button. Ensure  Vibracorder is powered off before inserting or removing Micro SD Card. If SD Card is removed  during any operation, a format of the card in a PC may be required as the card file system can  become corrupted.    4.  The firmware of the VibraCorder will verify the Micro SD card operation. The green “Ready Indicator”   LED will remain illuminated if the system passes built in self tests and SD card is present. Dytran  Instruments, Inc. specifies using only the included Sandisk Extreme Plus 32GB ‐ SDSQXVF‐032G‐ GN6MA. Other cards may operate, but have not been tested and are not guaranteed to work with the  system.     4.1  After the accelerometer is verified operational, the firmware will check for the presence of the  configuration file. Three beeps prior to startup sound will indicate the configuration file is not found.  HARDWARE CHECK/READY LED STATUS INDICATIONS  Unlit : System Powered Off  Ready Indicator  GREEN  Lit : Passed Self‐Test, Ready to Record  Unlit:  System not Recording  Recording Indicator  RED  Lit : Recording In Progress  4 GREEN  Four Lit – 100%, 3 Lit – 75%, 2 Lit – 50%, 1 Lit 25% Battery  Battery Charge Indicators  Remaining   ...
  • Page 8   6.3 Ad ditional data  files can be o overlaid using g “OVERLAY D DATA” button n. Once presse ed, it will pro mpt the  er to select a dditional dat a files. If one  data file is gr reater than an nother, the m missing data w will be  dded with 0s s. “REMOVE D DATA” button  will remove  the latest ad ded data.  6.4 If o one particular r event is sele ected using cu ursors on any y axis, the oth her two axis d ata for the sa ame time  terval can be  selected by t he user using g “ALIGN CUR RSOR TO X PO OSITION”,  “AL LIGN CURSOR R TO Y ...
  • Page 9   overlaid. When selected new, all the previously displayed data shall be erased and substituted  with newly imported data set.  7.2 “RELOAD SELECTED DATA” button shall reload the original set of data into the analysis window.  7.3 “LOW PASS FILTER” and “HIGH PASS FILTER” buttons shall apply specified filter to the data, user  shall be prompted for corner frequency and filter order. Butterworth topology is used.  7.4 “SINGLE INTEGRATION” and “DOUBLE INTEGRATION” buttons will apply either single or double  numerical integration. The software shall automatically apply a high pass filter before performing  integration (to avoid any data run off). User shall be prompted for corner frequency of the filter.  7.5 “OVERSAMPLING” button shall perform non‐linear interpolation on the data set, calculating  additional data point in between the existing one. The user will be prompted for  the  oversampling frequency:      Figure 7: Same data set before and after oversampling with 32,000Hz frequency  Rev A, ECN 12775    Page | 9 ...
  • Page 10     Figure 8a - TSA analysis results     Figure 8b: TSA analysis results for 5 periods  7.6        “FFT ANALYSIS” button will perform Fast Fourier transform.  “PLOT VERTICAL UNIT” selector allows selection of acceleration units between English and  Metric.  Rev A, ECN 12775    Page | 10 ...
  • Page 11: Mechanical Configuration And Mounting

      “RPM” control requires user input for TSA calculations and cursor location.  “PLOT HORIZONTAL UNITS” allows the change between Hertz, Orders, and RPM for FFT  graph.  7.10  “GET RMS” button shall show the RMS signal value for each axis.    8. “DATA EXPORT” tab allows the export of the data to conventional file formats: .csv, .mat, .tdms, .uff,  and .sqlite  User shall define the location of the file on the PC using the explorer.  If “EXPORT ALL RAW DATA” is checked, the software will export all the raw data from the  measurements file. If the “EXPORT ALL RAW DATA” is not checked, the software will export  only the content of the analysis screen.    Note: If running from external power through the 25 pin micro D‐sub external connector, the Vibracorder  should be powered on and off via an external power supply.  Please ensure that external power is off when  performing any connection or disconnection to D‐sub connector.  Turning the Vibracorder on with tactile  buttons (battery powered operation) will not allow remote power cycling of the Vibracorder.  VII. Mechanical configuration and mounting   1. Refer to 127‐4401A2 outline drawing for physical dimensions of the device.  2. Model 4401AX must be mounted using the supplied removable mounting plate and screws.   Select a desired hole pattern as outlined on 127‐4401A2 drawing (2.00” x 2.00”, 2.00”x 1.00” or 1.00”x1.00”),  drill and tap four 10‐32 holes x 0.35” minimum depth. Mount the plate to the test surface using the supplied  four 10‐32 low profile head screws as shown in Figure 9. Torque screws to 28 lb‐in.      Figure 9    Rev A, ECN 12775    Page | 11 ...
  • Page 12: Data Recording Considerations

        Mount model 4401AX onto mounting plate as shown in Figure 10. Secure the unit to the mounting plate from  both sides using the four 4‐40 button cap screws supplied. Torque screws to 8 lb‐in.      Figure 10  VIII. Data recording considerations The Vibracorder is powered by a non‐replaceable lithium ion battery. The minimum continuous  recording time is defined as 24 hours. During freerun, the recording will be automatically broken  down to 4gb files. That means if the recorder is left in free run, it will record the into VR‐00001.BIN,  then it will close VR‐00001.BIN, open new file VR‐00002.BIN and continue the recording. It will  perform that operation until battery runs out.                    Rev A, ECN 12775    Page | 12 ...
  • Page 13: Software License, Restrictions, And Disclaimer

    Software) available for download via the Dytran website, via email, or made available on portable storage devices shipped with Dytran products is a free license for Dytran customers to use with Dytran products. Dytran encourages you to know the possible risks involved in the download and use of software from the internet.
