- Page 1 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...

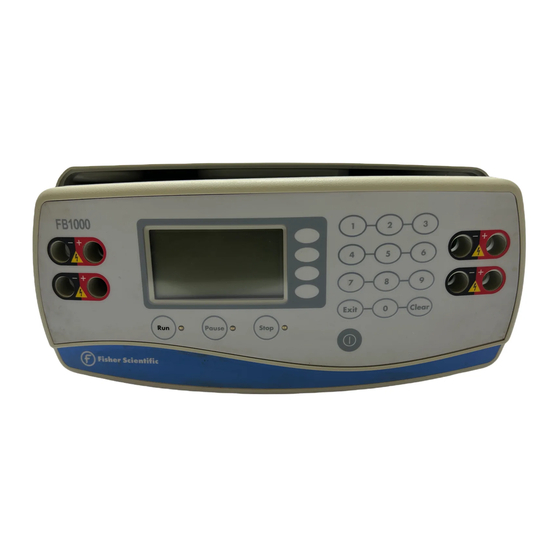

- Page 2 FB1000 Electrophoresis Power Supply 7608139 • 9/13/06 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 3: Table Of Contents
Table of Contents Introduction................................3 Features................................3 Safety Information ..............................4 Alert Signals..............................4 Specifications ..............................5 AC Input Power ............................5 Environmental ..............................5 DC Output Power............................5 Unpacking and Installation ..........................6 Operation ................................7 Location ................................7 Using the Power Supply ..........................8 Constant Voltage Operations........................9 Constant Current Operations........................9 Constant Power Operations........................10 Timed Operations ............................10 Volt-Hour Operations ..........................11... -
Page 4: Introduction
Introduction The FB1000 power supply is designed to provide con- stant voltage, current, or power in both Manual and Programmed modes of operation commonly used in elec- trophoresis applications. One to four sets of elec- trophoresis cells can be connected in parallel and run simultaneously. -
Page 5: Safety Information
Do not use any other AC line cord with this instrument. The FB1000 is a high voltage power supply capable of Note generating dangerous levels of voltage and current during Notes alert you to pertinent facts and operation. -
Page 6: Specifications
Specifications AC Input Power 95-265VAC, 50-60Hz, 350VA Max Environmental Operating temperature: 0-40°C, 0-95% R.H. non-condensing Altitude: 2000m Overvoltage category: II, IEC664 Pollution degree: 2, IEC664 DC Output Power 5-1000VDC, 250W Max 1-500mA, 250W Max Ripple: ± 1% Drift: ± 1%, after 30-minute warm-up Artisan Technology Group - Quality Instrumentation ... -
Page 7: Unpacking And Installation
Unpacking and Installation When unpacking your FB1000 power supply, be sure you have received the following items. • FB1000 unit • AC line cord • This manual Inspect your equipment and packaging material for signs of damage. Damage to the shipping container may indi- cate rough handling which could cause internal damage to the power supply. -
Page 8: Operation
Attach a temperature probe to the FB1000 rear located connector and the electrophoresis apparatus if you intend to perform temperature monitoring for a run. Power the unit on using the AC power switch located at the rear of the unit, next to the AC line cord entry. -
Page 9: Using The Power Supply
(see Programming section for programming mode description). In manual mode, the FB1000 preserves the constant setpoint each time you start a run. The constant parameter is saved independently for each mode; constant voltage, current, and power. -
Page 10: Constant Voltage Operations
To change a parameter, press the function key located to the right of the display, next to the parameter you wish to change. The FB1000 will allow a new value to be entered using the keypad numeric keys. Press the function key labeled "Enter"... -
Page 11: Constant Power Operations
F1. To change a parameter, press the func- tion key located to the right of the display, next to the parameter you wish to change. The FB1000 will allow a new value to be entered using the keypad numeric keys. -
Page 12: Volt-Hour Operations
If a power-fail restart occurs during the running of a pro- gram the FB1000 will complete the interrupted step, and then advance to the next step in the program. Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 13: Programming
FB1000 will automatically run the next pro- gram step (if there is one). After all program steps are completed in a program the FB1000 will shut down. Any sequence of control mode and timed/volt-hour steps can be contained in a program. Note that a program step can... - Page 14 EDIT, pressing Exit when complete. To delete a program or step, press the Clear key from the program or step screen as desired. After confirmation the FB1000 will remove the selected program or step from memory. Method number...
-
Page 15: Maintenance
Before servicing the unit, be sure to always turn off AC power using the switch at the rear of the unit, and then Caution disconnecting the AC line cord. The FB1000 power sup- The FB1000 uses double pole neutral ply requires no periodic servicing and should provide fusing. -
Page 16: Troubleshooting
"ERROR XX" where XX is one of the below listed errors. When the FB1000 is displaying an error indication, press the gray ON/OFF key to clear the error and return to setup mode, or press the Run key to resume the run (after correcting the cause of the error). Note that loss of AC power during a run is considered an error condition. -
Page 17: Replacement Parts
FBTEMPQ Replacement Parts AC line cord FBCORD1 Fuse, T5A, 250V FBFUSE3 For replacement parts contact Fisher Scientific at: Fisher Scientific 2555 Kerper Blvd. Dubuque, IA 52003 1-800-926-0505 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 18: Compliance
This equipment has been designed and tested to conform to CSA1010 safety standards, as applicable to laboratory instrumentation. This applies only to the FB1000 when used as specified in the documentation, in its intended applications, with Fisher Biotech approved electrophore- sis apparatus only. - Page 19 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 20 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 21: Warranty
Warranty The Fisher Scientific Company ("Fisher") warrants to the direct purchaser that the FB1000 will be free from defects in material or workmanship for a specified warranty period. During that period, Fisher will repair or replace the product or provide credit, at its sole option, upon prompt notification and compliance with its instructions. - Page 22 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
