GUTH LABORATORIES, INC.
M
Wet Simulator
odel 12V500
"DUPLEX"
U.S. PATENT NO. 7,895,878; 8,667,829
CANADIAN PATENT NO. 2684266
OPERATOR'S MANUAL
www.guthlabs.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 12V500 DUPLEX and is the answer not in the manual?

Questions and answers

Related Manuals for Guth Laboratories 12V500 DUPLEX

Summary of Contents for Guth Laboratories 12V500 DUPLEX

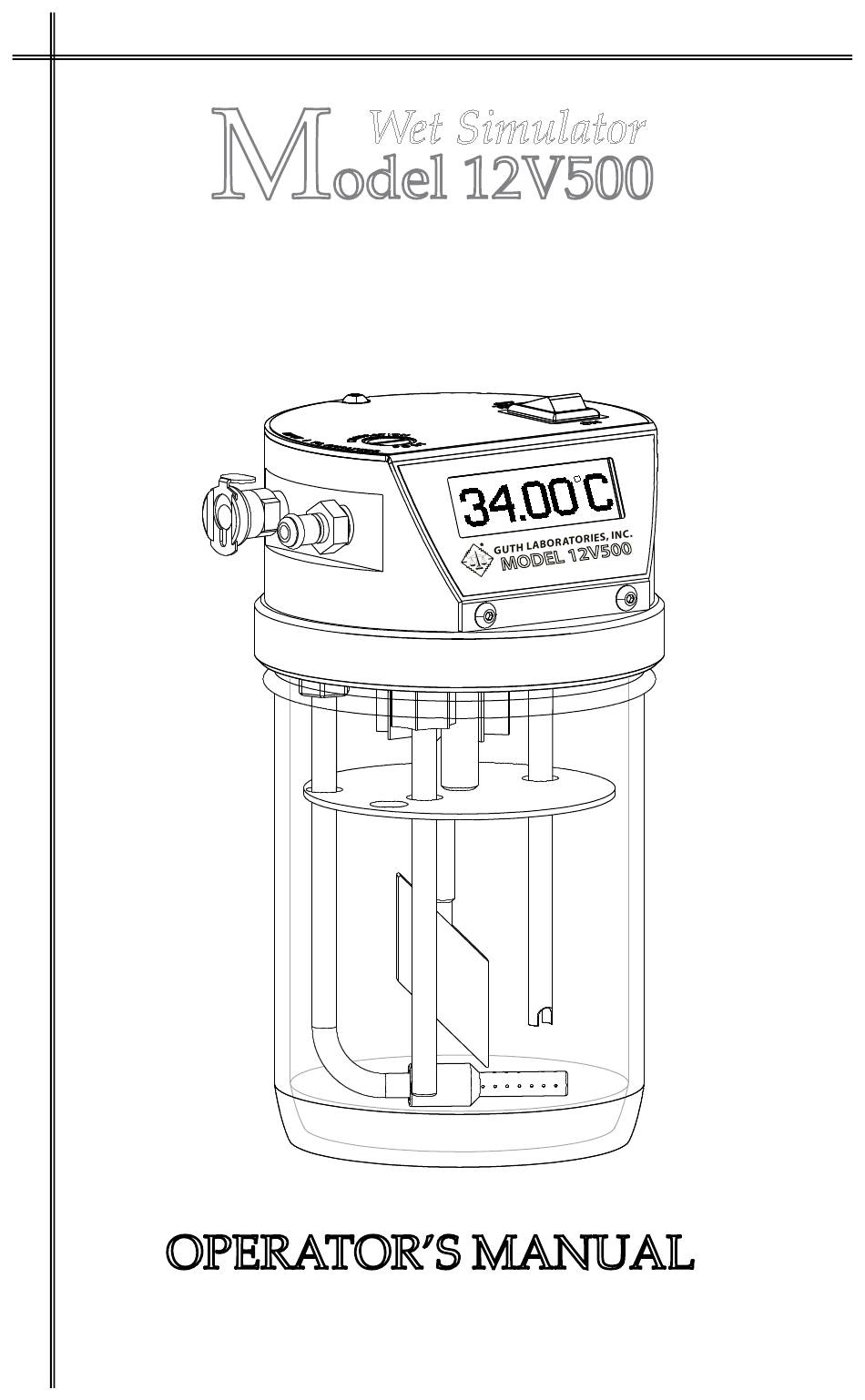

  • Page 1 GUTH LABORATORIES, INC. Wet Simulator odel 12V500 “DUPLEX” U.S. PATENT NO. 7,895,878; 8,667,829 CANADIAN PATENT NO. 2684266 OPERATOR’S MANUAL www.guthlabs.com...
  • Page 2 ©2015 Guth Laboratories, Inc./all rights reserved...
  • Page 3 To establish a precise and accurate calibration standard when using a Guth Simulator, GUTH LABORATORIES, INC. recommends using Guth Certified Simulator Solu- tion. Guth Laboratories, Inc., a pioneer and leader in the science of alcohol breath testing, has provided Certified Simulator Solution to state, municipal, and local law enforcement agencies for many years.

  • Page 4: Components And Functions

    5. BAFFLE PLATE - The baffle plate prevents excess solution from entering the head space or outlet port during a test. 6. AGITATOR - The agitator designed by Guth Laboratories, Inc. stirs the solu- tion to help maintain a uniform temperature. If the motor fails a status message will be displayed on the screen.

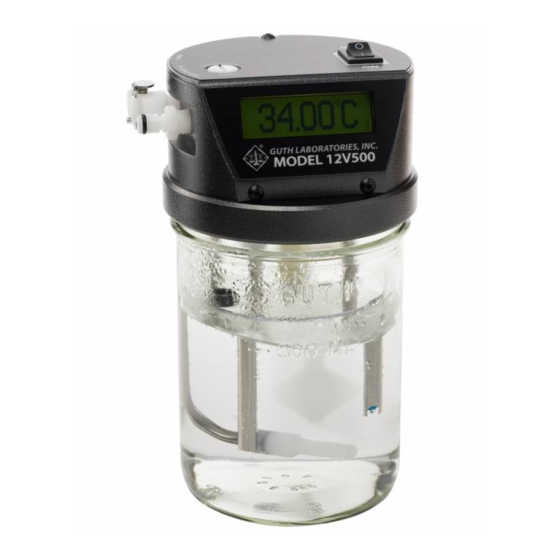

  • Page 5 MODEL 12V500 (Front View) 1. TOP HOUSING 2. BACKLIT NONMAGNETIC / EPOXY POWDER COAT LCD GRAPHICS INTERNAL MANIFOLD DESIGN DISPLAY GUTH LABORATORIES, INC. 5. BAFFLE PLATE 8. LABORATORY GLASS CONTAINER 9. SOLUTION LEVEL 6. GUTH MARK AGITATOR 500 ml ± 5% 4.
  • Page 6 MODEL 12V500 (Rear View) 12. RS-232 COMMUNICATIONS PORT 11. INPUT POWER JACK (12VDC @ 8 amps) 10. U.H.C. (Uniform Headspace Conditioner) 11. INPUT POWER JACK - The power jack serves as the input connector for the external power supply. The 12V500 can be run from the included desktop switching power supply or any 12VDC source capable of supplying 8 amps.
  • Page 7 MODEL 12V500 (Top View) 15. 1/8”FLOW FEMALE INPUT CONNECTOR 13. POWER SWITCH 16. 1/8” FLOW MALE OUTPUT CONNECTOR - 14. CALIBRATION PORT BREATH ANALYZER 13. POWER SWITCH - The power switch is used to turn the simulator ON/ OFF. It also functions as a RESET switch. 14.

  • Page 8: Power Supply

    MODEL 12V500 POWER SUPPLY 20b. IEC 60320-C13, Female Connector 17. External Switching Power Supply 20. AC Power Cord 20a. AC PLUG, NEMA 5-15P* 18. Power 19. IEC60320-C14, Output Connector Male (12VDC @ 8.33 A) Inlet 17. POWER SUPPLY - The included UL listed desktop switching power supply is capable of accepting an input from 100 - 240 VAC and providing an output of 12 VDC at 8.33 amps.
  • Page 9 OPERATING INSTRUCTIONS 1. Unscrew the glass container from the simulator top housing. Pour 500 ml of Certified Simulator Solution into the container. The Guth laboratory glass container has a 500 ml ± 5% fill mark. 2. Reassemble the simulator with the glass container. Be sure the container is properly seated to the top housing.
  • Page 10 Several precision models of pumps are available for purchase through Guth Laboratories, Inc.

  • Page 12: Care And Maintenance

    Thoroughly rinse the dispersion tube before reassembling. TEMPERATURE CHECK Guth Laboratories, Inc. recommends that the temperature of the 12V500 be checked at least once per year.

  • Page 13: Troubleshooting

    Trouble Shooting The Model 12V500 provides internal diagnostics that monitor proper simula- tor operation. If a monitored system detects a condition that is outside of the normal operation parameters, the simulator will deactivate the solution and head space heaters as well as the agitator motor. The simulator will emit an audible alarm and display the detected condition code number on the LCD followed by a message and icon detailing the condition.
  • Page 14 PROBLEM: The temperature sensor for the thermometer circuit is either open or shorted. REMEDY: Cannot be remedied in the field. Requires service.* PROBLEM: Temperature of solution is above 34.20°  C after initially reaching 34.00°  C . REMEDY: Turn off the simulator and allow the solution to cool. Turn the simulator on.
  • Page 15 PROBLEM: Temperature of solution has dropped below 33.80°  C after ini- tially reaching 34.00°  C . REMEDY: Turn off the simulator. Wait a few minutes then turn back on. If the condition continues to occur the simulator needs to be recalibrated or re- quires service.* PROBLEM: The temperature control circuit and the thermometer are reporting different temperatures.
  • Page 16 PROBLEM: Temperature of top housing has dropped below 34.5°  C after initially reaching set point. REMEDY: Turn off the simulator. Move simulator into a warmer environ- ment. Wait a few minutes then turn back on. If the condition continues to occur the simulator requires service.* PROBLEM: Temperature of top housing has risen above 36.0° ...
  • Page 17 * REQUIRES SERVICE - Simulator must be repaired by a Guth certified technician or returned to Guth Laboratories, Inc. Please call our Product Service Department for assistance or a RMA (Return Material Authorization) number. Return the simulator to the following address: GUTH LABORATORIES, INC.
  • Page 18 UNDERWRITERS LABORATORIES, INC. UL SYMBOLS AND WARNINGS Power Supply: Input : 100-240 VAC 47-63Hz. Output: 12VDC @ 8.33 Amps Max Power Output of 100 Watts Model 12V500 Power: 12VDC, 82Watts Mains supply uctuation not to exceed ±10% of the nominal voltage. Do not position instrument so that it is di cult to disconnect the power cord.
  • Page 19 RECORDS (SERIAL NUMBERS, CALIBRATION AND NOTES) NIST TRACEABLE THERMOMETER – SERIAL NUMBER___________________ CERTIFIED BY________________________________DATE_____________ TEST TEMPERATURE_______ NIST TRUE TEMPERATURE_______ MODEL 12V500 – SERIAL NUMBER_________________________________ CALIBRATION CHECK DATE CHECKED BY NOTE: Only a Guth Laboratories, Inc. certi ed technician shall perform Field calibration.

  • Page 20: Warranty

    Simulators manufactured by GUTH LABORATORIES, INC. are guaranteed to be free from defects in workmanship and material for a period of one year from the date of purchase. GUTH LABORATORIES, INC. will repair or replace, at its option, any unit becoming defective within that period, except when such defects result from obvious abuse or improper use of the instrument.
  • Page 21 GUTH LABORATORIES, INC. 590 North 67th Street Harrisburg, PA 17111-4511 Telephone: (717) 564-5470 / USA (800)-233-2338 Fax: (717) 564-2555 Email: customerservice@guthlabs.com www.guthlabs.com Revision 1F, 08/15...
