Summary of Contents for JOWA Ag-S

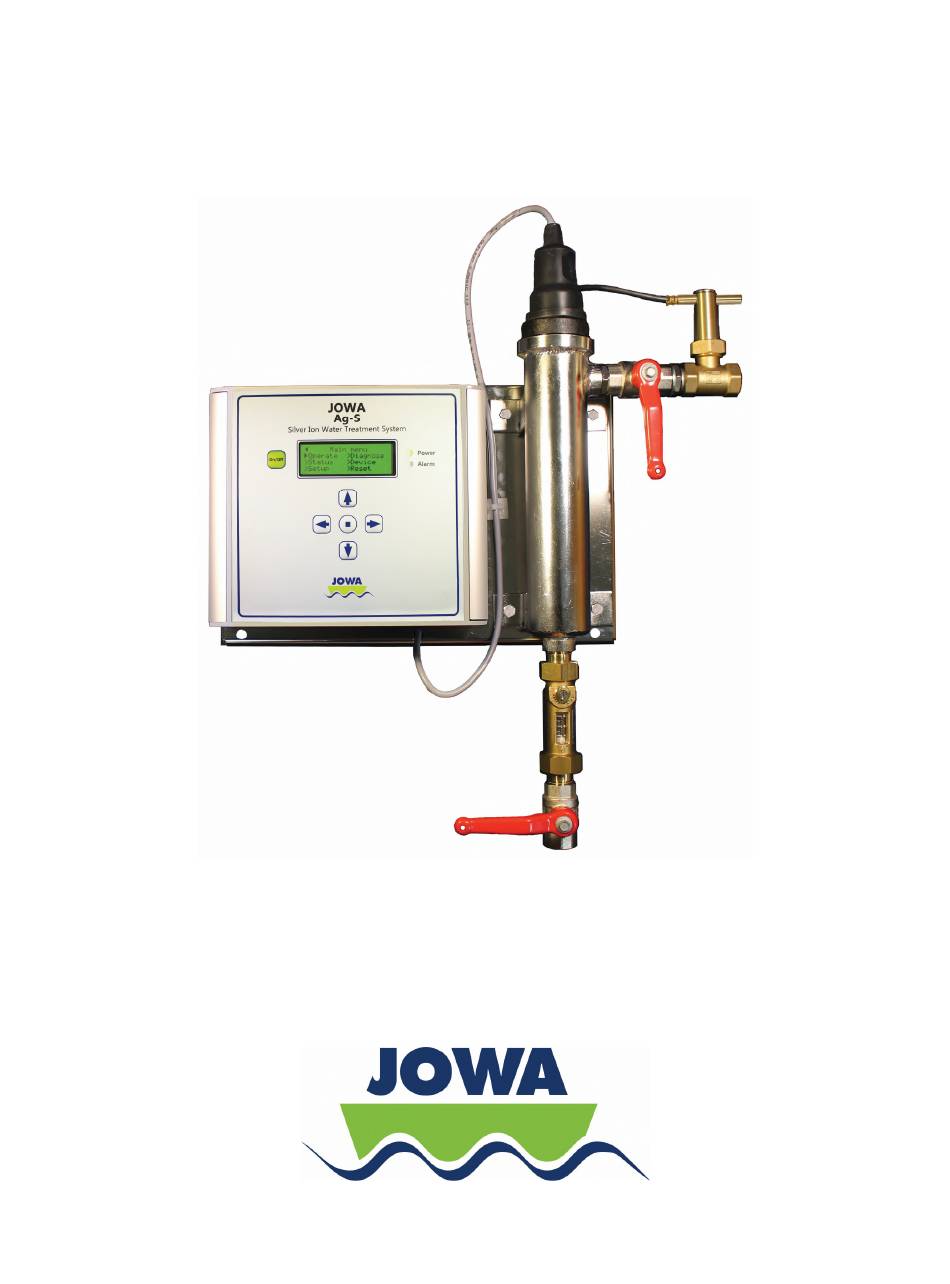

- Page 1 Ag-S Manual Silver Ion Water Treatment System M395 February 4, 2020...
-
Page 3: Table Of Contents
Replacement of the Electrode............21 Maintenance ..................22 Flash Pattern for Power LED ............. 22 Trouble Shooting ................. 23 Resetting the Ag-S ................25 Spare Parts List ................... 26 Flow Diagrams ..................27 Mechanical Drawings ................29 10.0 Electrical Drawings................30... -
Page 4: Introduction
Electrolysis with Water Flow The JOWA Ag-S electrode unit consists of two high purity (99.99%) silver plates. The water passes through the center of the electrode and between the two silver plates. The released silver ions, following the current direction between the plates, are forced by the water to flow out of the electrode chamber and into the piping system. - Page 5 Today silver is used in thousands of products to prevent biological growth. The JOWA Ag-S can have the concentration of silver ions set for any value between 0.025 mg/l (25 ppb) and 0.10 mg/l (100 ppb). The most common settings are either 0.04 mg/l (40 ppb) or 0.10 mg/l (100 ppb) silver.
-
Page 6: General
Standard General To obtain all the advantages from operating a JOWA Ag-S, ensure that all users have adequate education of the equipment, that the installation is correct and that the Ag-S is maintained and operated in accordance with the instructions in this manual. -
Page 7: Technical Specification
DN10 BSPP Female G⅜” (Optional NPT) Empty Weight 8.0 kg (17.6 lbs) Chamber Material AISI 316L Flowmeter (optional) Pulse Type, L/pulse adjustable within Ag-S Operating Temperature 5 - 60°C (41 - 140°F) Ingress Protection for Enclosure IP64 EN 60529 Color (Control Cabinet) -
Page 8: Treatment Of Water
Pressure for the Ag-S is provided by the hydrophore pump. The Ag-S unit doses silver into the branch line. This branch line is then directed back to the ship’s storage tank where the silver ions can treat the entire ship’s fresh water supply. -
Page 9: Direct Flow Mode
The Ag-S can be controlled by a remote signal. A signal from a watermaker can start the unit and the Ag-S can send a signal to the watermaker to stop if the Ag-S unit stops. This can happen with certain error conditions. -
Page 10: Installation

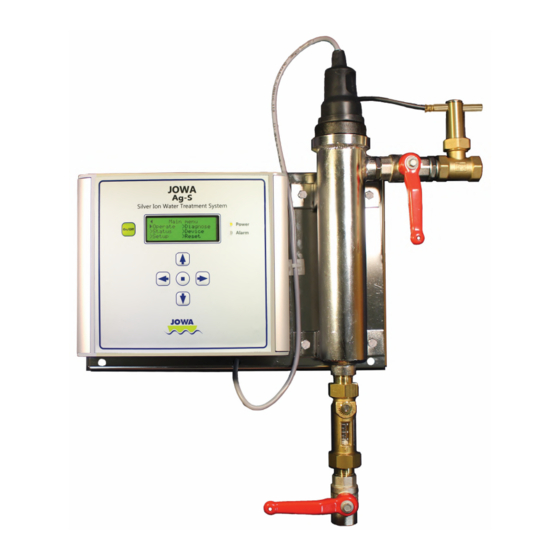

Installation Mounting The JOWA Ag-S consists of a standard cabinet with all the electronics, an electrode chamber made with high grade electro-polished stainless steel, shut off valve, flow setting valve with flow indicator, flow switch, and two ball valves to isolate the chamber. -
Page 11: Electrical Connections
Silver Ion Water Treatment System Rev: Standard Electrical Connections The Ag-S is designed to be connected to 100 - 240 VAC, 50/60 Hz. Terminals (Left to Right at bottom of PCB) 100 – 240 VAC ~ Label 100 – 240 VAC ~... -
Page 12: Typical Connections
Unused Select when the relay is not used Pump When a pump is used for water flow through the Ag-S chamber (the bypass is not connected to a pressurized line). Alarm If an Alarm condition is active the Relay will close... -
Page 13: Tank Recirculate Mode
2. Set the desired silver dosage level. See Setup Menu section 5.4.3 3. The input for fixed flow must be setup along with flow rate entered. See Setup Menu section 5.4.8 The chart below shows the flows that are acceptable for the Ag-S in this mode. Fig 5.1.2 10/32... -
Page 14: Final Setup
See Setup Menu section 5.4.6 Operating the Menu System When power is first applied to the unit the application program of the Ag-S is started. It will search for any optional systems (such as remote Ag-S units) that are connected. -
Page 15: Operating Modes
Date: 2020-02-04 JOWA Ag-S Manual: M395 Silver Ion Water Treatment System Rev: Standard Operating Modes (Under the Setup menu Tank recirculate Direct Flow must be first selected) Volume Mode – You enter the amount of water to be treated. (Tank recirculate Mode) -
Page 16: The Menu Structure
Date: 2020-02-04 JOWA Ag-S Manual: M395 Silver Ion Water Treatment System Rev: Standard The Menu Structure In the menu system there are multiple screens to setup, operate, and if needed, diagnose the equipment. The general way to move within the menu structure is as follows: The up and down arrows move among the possible choices. - Page 17 Date: 2020-02-04 JOWA Ag-S Manual: M395 Silver Ion Water Treatment System Rev: Standard Operate Menu - Tank Recirculate Mode Main Menu Operate Status Setup Diagnose Device Reset Untreated water Errors electrode Show Reset Error List Sec. 5.5 Liters Liters Cancel...
- Page 18 Date: 2020-02-04 JOWA Ag-S Manual: M395 Silver Ion Water Treatment System Rev: Standard Diagnose Menu Main Menu Operate Status Setup Diagnose Device Reset Firmware Pwr supp Inputs Outputs LEDs Buttons Device Menu Main Menu Operate Status Setup Diagnose Device Reset...
-
Page 19: Water System Tank Size Entry
Date: 2020-02-04 JOWA Ag-S Manual: M395 Silver Ion Water Treatment System Rev: Standard Reset Menu Main Menu Operate Status Setup Diagnose Device Reset Control Panel Ag-S Device Ag-S to factory def 5.4.1 Water System Tank Size Entry (Tank recirculate Mode) -
Page 20: Setting Final Silver Dosage Level
Date: 2020-02-04 JOWA Ag-S Manual: M395 Silver Ion Water Treatment System Rev: Standard Select the units of measure and press Enter Input the flow rate from the watermaker and press enter Select the watermaker Polarity; Closed=On is normal and then press enter 5.4.3... -
Page 21: Setup Relays (Optional - When Using Outputs)
Enter Pump – Activates the relay when the Ag-S is treating water with Silver. Used most commonly to turn on a pump if the Ag-S is not connected to a pressurized tank. Typically Relay 1. Alarm – Activates the relay during an alarm condition. The relay remains active until the alarm is acknowledged. -
Page 22: Error List
Select the flow signal Polarity; Closed=On is normal and then press enter Error List When running the Ag-S a number of errors can occur. The possible errors are listed below. To view this list select Operate under the main menu and then Errors... - Page 23 Date: 2020-02-04 JOWA Ag-S Manual: M395 Silver Ion Water Treatment System Rev: Standard Below are examples of the different conditions for the Errors page. The status column will show a – when that item is not an active error. Error Screen without any active errors The status symbol will change to a when the error is active.
-
Page 24: Replacement Of The Electrode
Date: 2020-02-04 JOWA Ag-S Manual: M395 Silver Ion Water Treatment System Rev: Standard The status symbol will change to a – when the error is not active, however, the indicates that the alarm condition was not acknowledged. This allows you to determine the error and alarm even if the error is no longer active. -
Page 25: Maintenance
Flash Pattern for Power LED The power LED will either be steady or flashing when power is supplied to the Ag-S. Flashing On On once every 2 seconds indicates that the Ag-S has power and ready to produce silver ions. -
Page 26: Trouble Shooting
See section 5.5 for additional details on how to handle errors. Problem Cause Correction No power to the Ag-S. Check the power Green Power (LED) not illuminated or flashing A fuse is defective... - Page 27 Check signal from There is no signal from watermaker. LED by input watermaker. terminal will indicate the status or on the display by The Ag-S cannot be selecting Diagnose, Inputs started remotely The signal is not connected (Tank recirculate mode)
-
Page 28: Resetting The Ag-S
No setup data is lost during this reset. Ag-S to factory def – This is a reset of all the settings within the device to the factory default. All user settings will be erased and must be reentered. A second warning screen is displayed if this option is selected to confirm that you want to reset to factory defaults. -
Page 29: Spare Parts List
92000-00023 Flowmeter, G1” union connection, nominal 6 m /h rate, 10 L/Pulse *Silver electrode is the only recommended spare part for 2 years operation Contact your local JOWA office for Spare Parts or go to www.jowa.com for more information. 26/32... -
Page 30: Flow Diagrams
Date: 2020-02-04 JOWA Ag-S Manual: M395 Silver Ion Water Treatment System Rev: Standard Flow Diagrams Tank Recirculate Mode 27/32... - Page 31 Date: 2020-02-04 JOWA Ag-S Manual: M395 Silver Ion Water Treatment System Rev: Standard Direct Flow Mode 28/32...
-
Page 32: Mechanical Drawings
Date: 2020-02-04 JOWA Ag-S Manual: M395 Silver Ion Water Treatment System Rev: Standard Mechanical Drawings 29/32... -
Page 33: 10.0 Electrical Drawings
Date: 2020-02-04 JOWA Ag-S Manual: M395 Silver Ion Water Treatment System Rev: Standard 10.0 Electrical Drawings Below is the PCB layout for the main board. The area most important for the user is the terminal connections at the bottom of the board. -
Page 34: 11.0 Additional Items
Date: 2020-02-04 JOWA Ag-S Manual: M395 Silver Ion Water Treatment System Rev: Standard 11.0 Additional Items Shut off Solenoid Valve; PN 9801007 Standard type Valve normally closed - NC. When energized, the pressure decomposes on the secondary side of the diaphragm via the pilot hole. - Page 35 Date: 2020-02-04 JOWA Ag-S Manual: M395 Silver Ion Water Treatment System Rev: Standard Flow Switch Model; PN 9801010 Description Technical Details Depending on the flow velocity, the baffle Rising flow rate: 2.0 l/min. ±15% plate is deflected and it moves the balance...
