Matrix ANT+ Assembly Manual

Prepared by:
ICG Service Department;
Christopher Lueck
D
ESCRIPTION

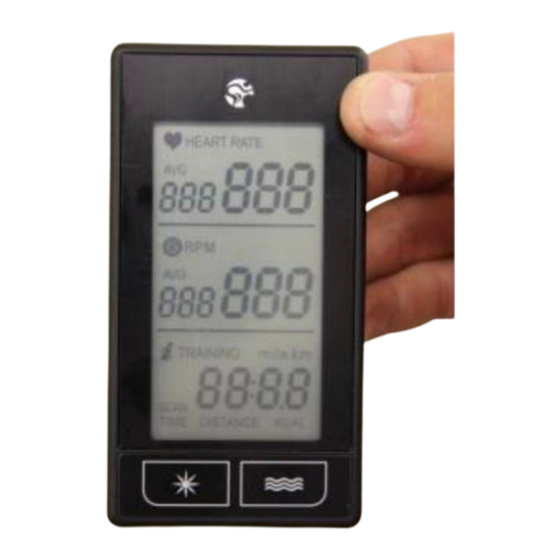

Use this guide to pair an ANT+ console with an RPM transmitter. These steps are also available in the
ANT+ console owner's manual on pages 8 through 10.
R T
EQUIRED OOLS
PH2 Phillips Screwdriver
S
OLUTION

1. Attach the transmitter to the frame:

•
On IC5 bikes, remove the transmitter cover screws at the bottom of the frame. Locate the
transmitter wire. Install the transmitter batteries and securely attach the transmitter wire,
but do not insert the transmitter into the frame. Gently lower and release the transmitter
and allow it to hang freely.
•
On most other models, the transmitter attaches to the outside of the frame, near the
flywheel. Insert the batteries, and then attach the transmitter with two screws.
1| Revision Date: 12/22/2015 | Revised by: Emilie McWilliams
Assembly Guide:
Pair Console and Transmitter
Original Date: Last Revision:
8/30/2013 12/22/2015
3mm Allen wrench
Models Affected:
ANT+ Console
