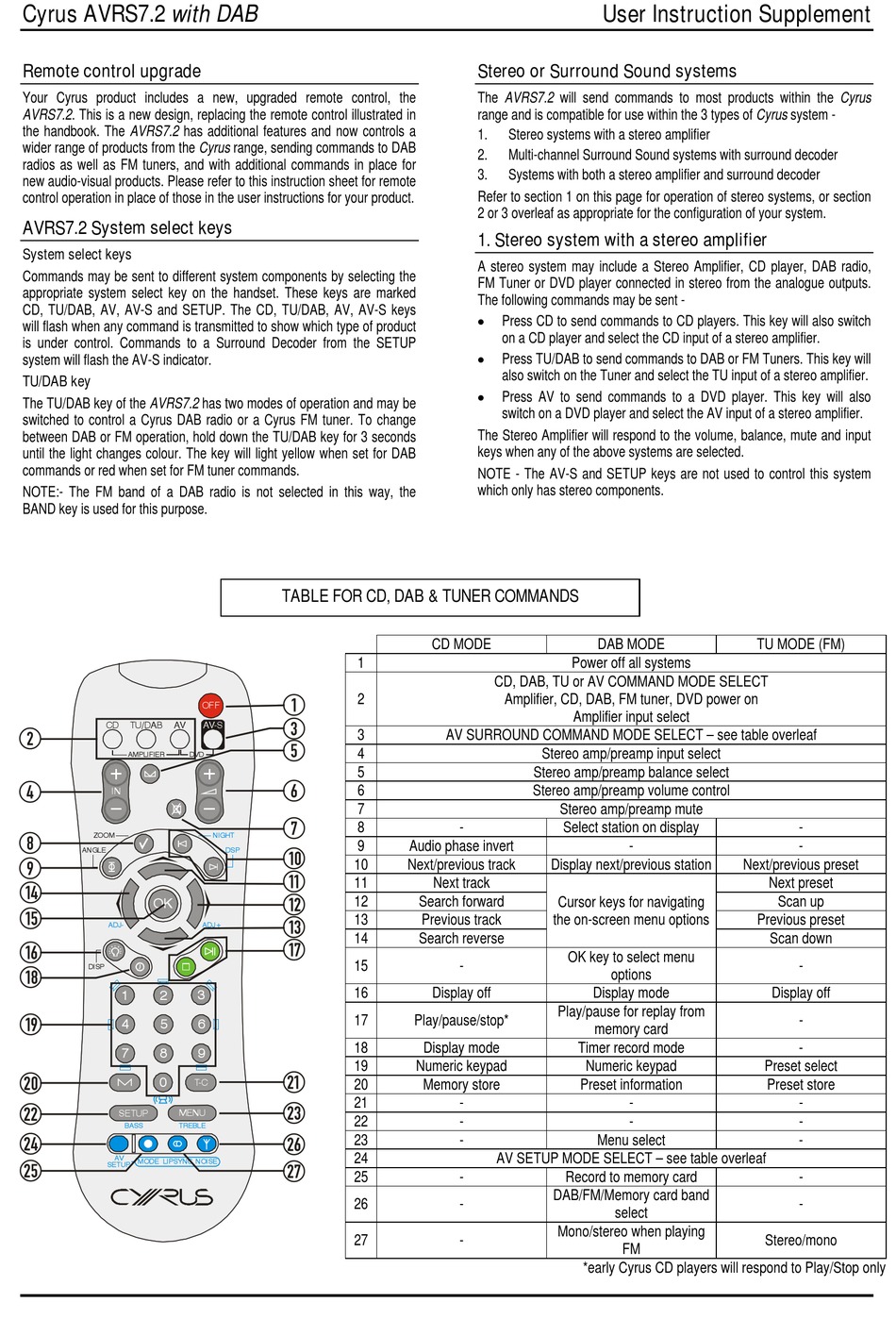

Cyrus AVRS7.2 User Instruction Supplement

Cyrus AVRS7.2 with DAB
Remote control upgrade
Your Cyrus product includes a new, upgraded remote control, the
AVRS7.2. This is a new design, replacing the remote control illustrated in
the handbook. The AVRS7.2 has additional features and now controls a
wider range of products from the Cyrus range, sending commands to DAB
radios as well as FM tuners, and with additional commands in place for
new audio-visual products. Please refer to this instruction sheet for remote
control operation in place of those in the user instructions for your product.
AVRS7.2 System select keys
System select keys
Commands may be sent to different system components by selecting the
appropriate system select key on the handset. These keys are marked
CD, TU/DAB, AV, AV-S and SETUP. The CD, TU/DAB, AV, AV-S keys
will flash when any command is transmitted to show which type of product
is under control. Commands to a Surround Decoder from the SETUP
system will flash the AV-S indicator.
TU/DAB key
The TU/DAB key of the AVRS7.2 has two modes of operation and may be
switched to control a Cyrus DAB radio or a Cyrus FM tuner. To change
between DAB or FM operation, hold down the TU/DAB key for 3 seconds
until the light changes colour. The key will light yellow when set for DAB
commands or red when set for FM tuner commands.
NOTE:- The FM band of a DAB radio is not selected in this way, the
BAND key is used for this purpose.
CD TU/DAB AV
b
AMPLIFIER
d
IN
h
ZOOM
ANGLE
i
1$
OK
1%
ADJ-
1^
1*
DISP
1 2
1(
4 5
7 8
2)
0
2@
SETUP MENU
BASS TREBLE
2$
AV
2%
MODE LIPSYNC NOISE
SETUP
TABLE FOR CD, DAB & TUNER COMMANDS
1
a
2
OFF
c
AV-S
3
e
4
DVD
5
f
6
7
g
8
NIGHT
9
1)
DSP
10
1!
11
1@
12
1# 13
ADJ+
14
1&
15
16
3
17
6
18
9
19
2!
20
T-C
21
2#
22
2^
23
24
2&
25
26
27
Stereo or Surround Sound systems
The AVRS7.2 will send commands to most products within the Cyrus
range and is compatible for use within the 3 types of Cyrus system -
1. Stereo systems with a stereo amplifier
2. Multi-channel Surround Sound systems with surround decoder
3. Systems with both a stereo amplifier and surround decoder
Refer to section 1 on this page for operation of stereo systems, or section
2 or 3 overleaf as appropriate for the configuration of your system.
1. Stereo system with a stereo amplifier
A stereo system may include a Stereo Amplifier, CD player, DAB radio,
FM Tuner or DVD player connected in stereo from the analogue outputs.
The following commands may be sent -
•
Press CD to send commands to CD players. This key will also switch
on a CD player and select the CD input of a stereo amplifier.
•
Press TU/DAB to send commands to DAB or FM Tuners. This key will
also switch on the Tuner and select the TU input of a stereo amplifier.
•
Press AV to send commands to a DVD player. This key will also
switch on a DVD player and select the AV input of a stereo amplifier.
The Stereo Amplifier will respond to the volume, balance, mute and input
keys when any of the above systems are selected.
NOTE - The AV-S and SETUP keys are not used to control this system
which only has stereo components.
CD MODE
Power off all systems
CD, DAB, TU or AV COMMAND MODE SELECT
Amplifier, CD, DAB, FM tuner, DVD power on
Amplifier input select
AV SURROUND COMMAND MODE SELECT – see table overleaf
Stereo amp/preamp input select
Stereo amp/preamp balance select
Stereo amp/preamp volume control
Stereo amp/preamp mute
- Select station on display
Audio phase invert
Next/previous track Display next/previous station
Next track
Search forward Cursor keys for navigating
Previous track the on-screen menu options
Search reverse
OK key to select menu
-
Display off
Play/pause for replay from
Play/pause/stop*
Display mode
Numeric keypad
Memory store
-
-
-
AV SETUP MODE SELECT – see table overleaf
- Record to memory card
DAB/FM/Memory card band
-
Mono/stereo when playing
-
User Instruction Supplement
DAB MODE
-
Next/previous preset
options
Display mode
memory card
Timer record mode
Numeric keypad
Preset information
-
-
Menu select
select
FM
*early Cyrus CD players will respond to Play/Stop only
TU MODE (FM)
-
-
Next preset
Scan up
Previous preset
Scan down
-
Display off
-
-
Preset select
Preset store
-
-
-
-
-
Stereo/mono
