Good-Lite 700009 Mounting Instructions

Mounting Instructions For Wall Bracket
Part Number: 700009

Mounting Holes

IMPORTANT:
For situations calling for cabinet to swing open to the right, mount
the wall bracket with the swing hinge in the up position. To swing
open to the left, mount the wall bracket with the swing hinge down.
To lock bracket into the open postion, slide locking sleeve towards
middle of locking bar.
Wall
Bracket
Post
Wall
Bracket
www.good-lite.com | 1.800.362.3860 | 1.888.362.2576 fax
Mount the wall bracket to the wall using all four mounting holes.

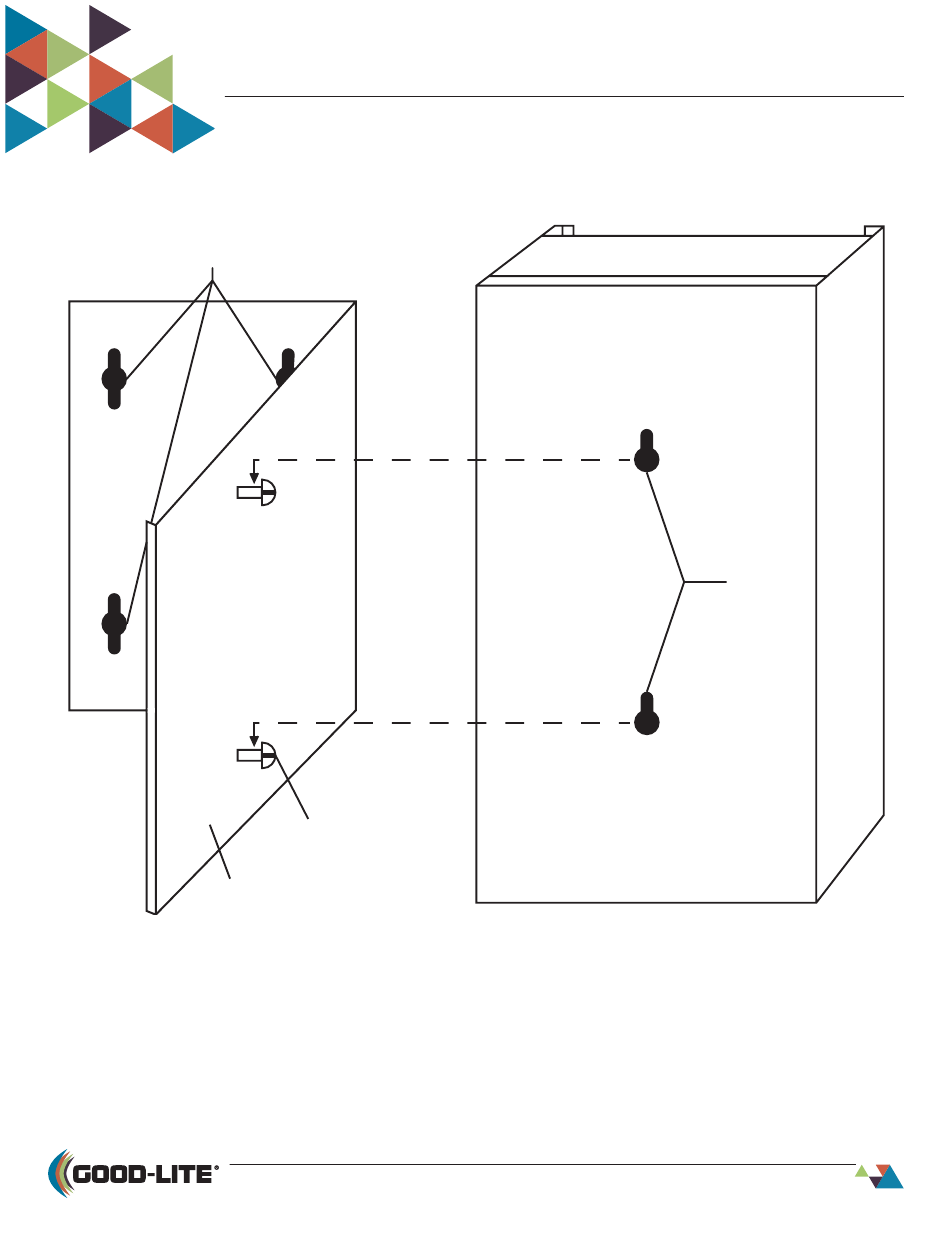

Mount cabinet to wall bracket (see drawing). Position key hole slots
on back of cabinet onto wall bracket posts. Slide down into place.
To remove cabinet from wall bracket, reverse process.
Key
Holes
1
