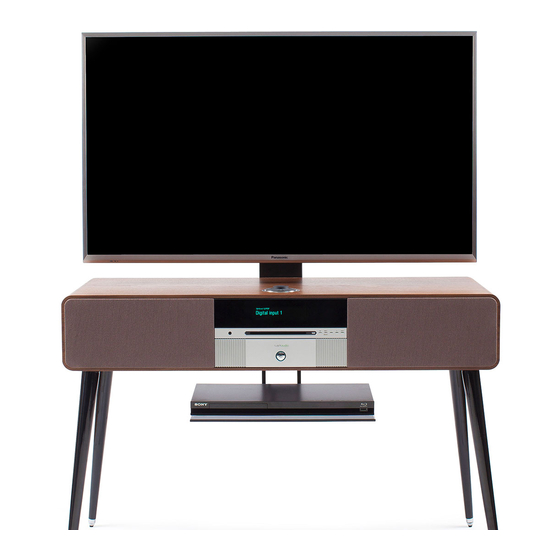

R7 AV Mount assembly instructions
Warning
If this product is not used correctly it may result in
damage or serious injury.
If you do not understand these instructions, or have any
doubts about your ability to install this product safely,
please call your Ruark Audio dealer or a qualified installer.
Both the R7 and AV Mount are heavy. To avoid injury, we
recommend two people install this product.

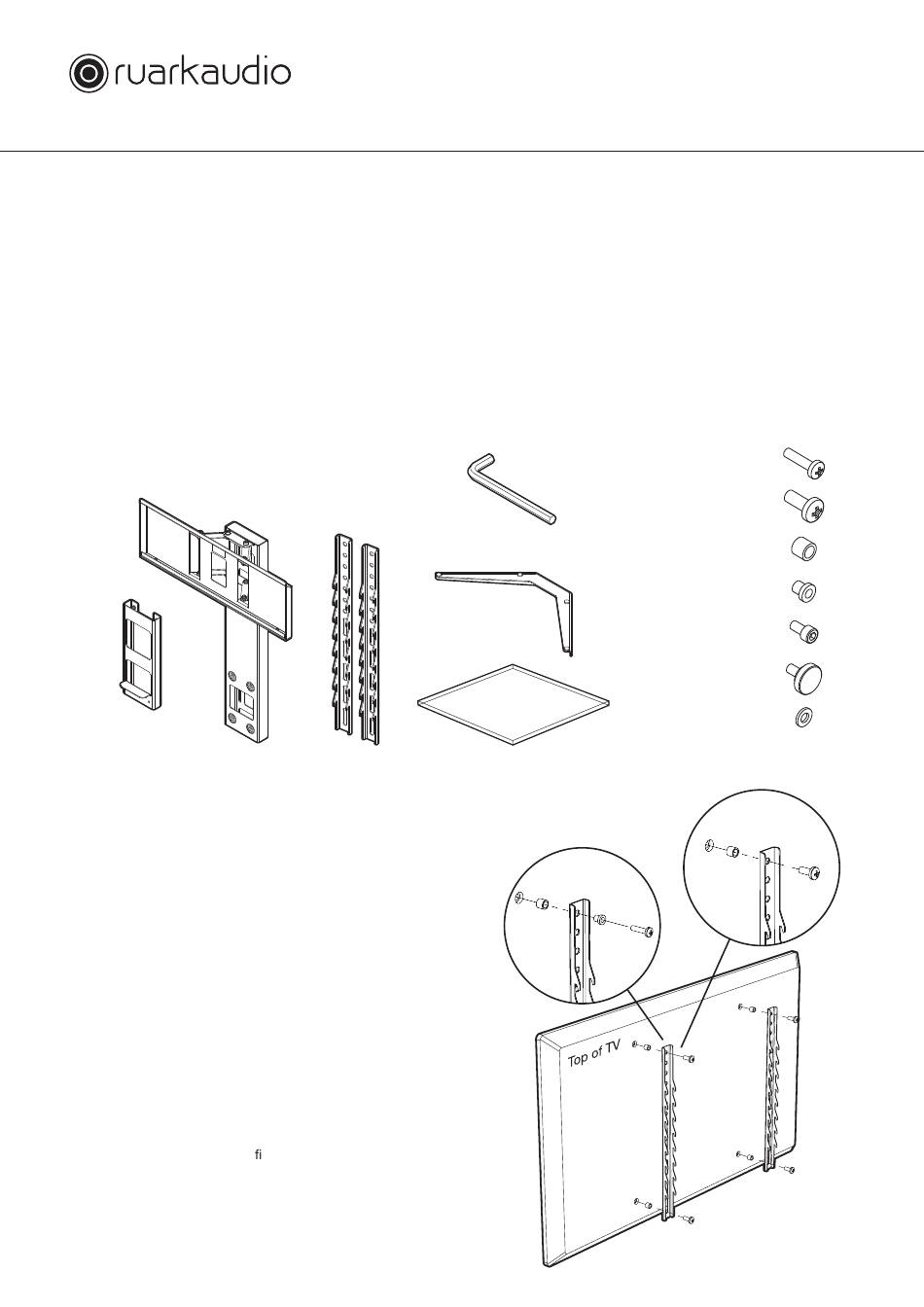

Supplied parts
1x TV post
1x shelf post
1
Secure TV brackets to rear of TV
Do not use this prouct with a television larger than
50" or heavier than 25kg.
You will need a suitable Pozidrive screwdriver.
Place your TV face down on a stable cloth-covered
surface ensuring all cables are disconnected.
Determine the size of screw required for your TV. Secure
the TV brackets to the back of your TV using correct
screws and spacers as shown.
Make sure the TV brackets are vertically centred and
level with each other, and that the four screws are
correctly tightened.
If the supplied screws do not t your TV, contact your
Ruark Audio dealer.
Do not apply any load other than the television to the TV
brackets and TV post.
The glass shelf is only intended for normal AV equipement
like blulray players, satellite TV boxes and game consoles.
This product is only for use with a Ruark Audio R7.
2x TV brackets
1x shelf bracket
1x shelf
4x M6x25 screw
1x hex key
4x M8x20 screw
2x M6x12 screw
2x thumbscrew
spacer
reducer
M6x25
screw
4x spacer
4x reducer
2x washer
spacer
M8x20
screw
