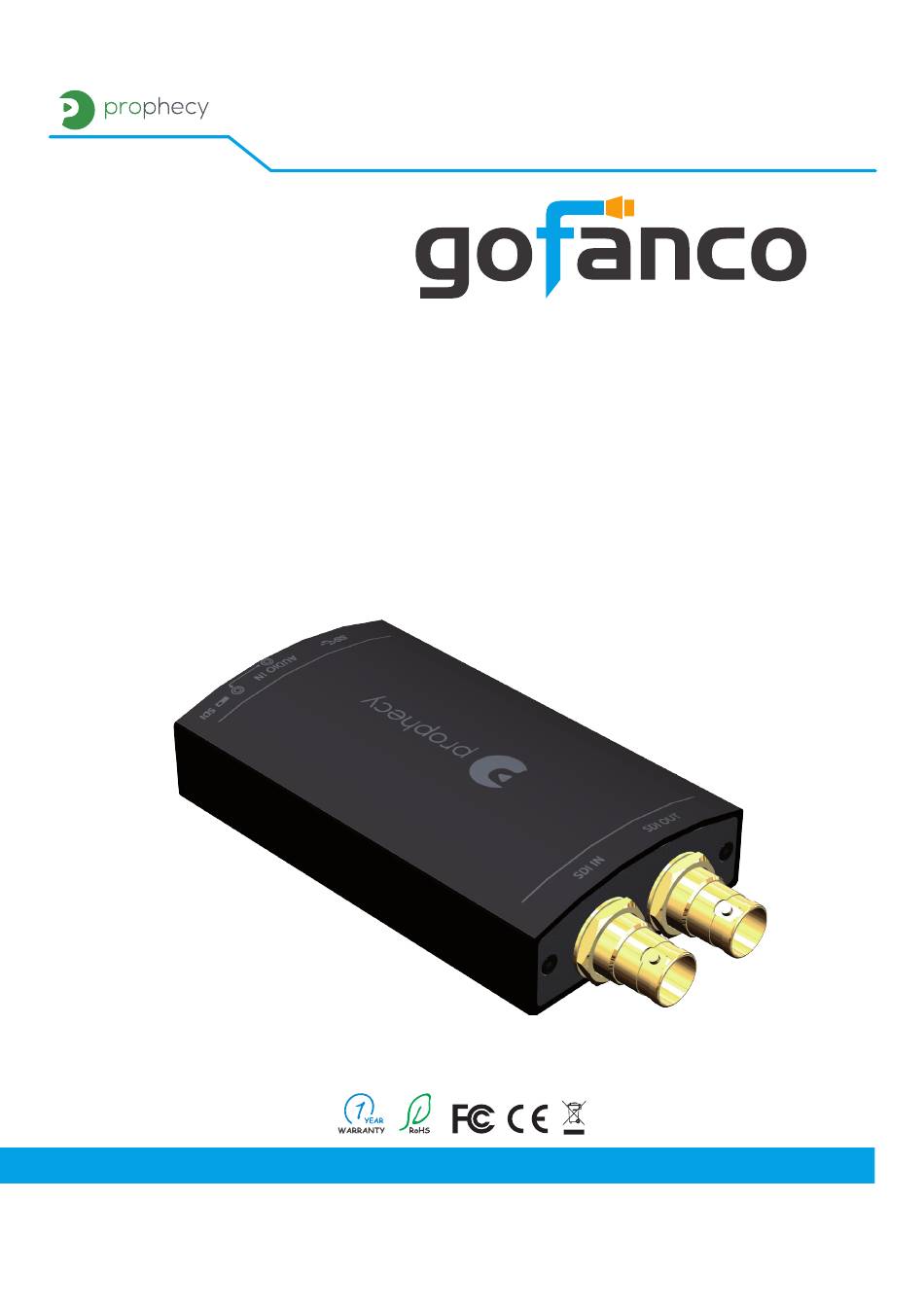

- Page 1 ® PRO-CaptureSDI USB 3.0 3G-SDI Capture Device with Audio in User‘s Guide Made in Taiwan...
- Page 2 ® PRO-CaptureSDI Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
- Page 3 ® PRO-CaptureSDI 1. Introduction The PRO-CaptureSDI USB 3.0 3G-SDI Capture Device with Audio in provides a professional way to capture 3G/HD/SD- SDI signals. It adopts USB 3.0 interface, which can realize high-speed transmission. Users can capture 3G/HD/SD-SDI signals by this capture device. Besides, PRO-CaptureSDI can capture and display original uncompressed 3G/HD/SD-SDI with more realistic color rendition. PRO-CaptureSDI also uses large volume image buffer technology which effec- tively avoids the video tearing. The high sampling rate and high sampling accuracy assure images with high sharpness, rich details, and less color edges.
-
Page 4: Package Contents
® PRO-CaptureSDI • Supports USB 3.0 (MJPG/YUY2) and USB 2.0 (MJPG) • Low Latency • System Requirements (Recommended) Windows® 7(SP1) / Windows 8.1 / Windows 10 PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher 4GB RAM or higher 1. Video quality is influenced by the system’s capability and soft- ware settings. 2. Please use the included USB 3.0 cable to protect the device and avoid compatibility issues. 3. Package Contents • 1x PRO-CaptureSDI • 1x USB 3.0 A to A Cable (host to device) • 1x User Manual... -
Page 5: Specifications
® PRO-CaptureSDI 4. Specifications Item Description Role of usage Video Capture Device SDI standards SD-SDI, HD-SDI & 3G-SDI Input Video bandwidth 2.970 Gbit/s, 2.970/1.001 Gbit/s Up to 350MBps (USB 3.0) Output Video bandwidth Video support Up to 1080p60 Audio Input SDI Embedded Audio/ 3.5mm Analog Stereo Audio Audio Format 2CH 16bit PCM Recording Mode Software Compression Recording Video Format YUV2 (USB3.0), MJPG (USB2.0/3.0) Human body model — ±15kV [air-gap discharge] & ESD protection ±8kV [contact discharge] 6-layer board [impedance control — differential 100Ω; PCB stack-up single 50Ω] Firmware update Feasible via USB port Input 1x SDI + 1x 3.5mm stereo Output 1x USB + 1xSDI(Loopout) BNC connector 3G 75Ω inter-locked socket USB connector USB 3.0 Type A (SuperSpeed USB) OBS Studio (Windows, Linux), AMCap (Windows), Potplayer Software compatibility (Windows)¸ VLC (OS X, Linux), XSplit Boardcast (Windows),... -
Page 6: Connection Diagram
® PRO-CaptureSDI 5. Connection Diagram... -
Page 7: Panel Description
® PRO-CaptureSDI 6. Panel Description 1. USB OUT: Connect to a USB host (PC, NB, MAC…)and Firmware update 2. Line IN: Connect to analog stereo audio source 3. Slide Switch: Select the audio source from SDI embedded audio or analog stereo audio [Left] Analog Stereo Audio [Right] SDI Embedded Audio 4. SDI IN: Connect to a 3G/HD/SD-SDI source 5. SDI LOOPOUT: Connect to a 3G/HD/SD-SDI display... -
Page 8: Usb Pin Definition
® PRO-CaptureSDI 7. USB Pin Definition VBUS StdA_SSRX- StdA_SSRX+ StdA_SSTX- StdA_SSRX+ Shield SHELL SHELL... - Page 9 ® PRO-CaptureSDI 8. Limited Warranty The SELLER warrants the PRO-CaptureSDI USB 3.0 3G-SDI Capture Device with Audio in to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges. Unit that fails under conditions other than those covered will be repaired at the current price of parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a return authorization number. The warranty is in lieu of all other warranties expressed or implied, including without limitations, any other im- plied warranty or fitness or merchantability for any particular purpose, all of which are expressly disclaimed. Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible for shipping charges to and from the SELLER. Cables are limited to a 30 day warranty and cable must be free from any markings, scratches, and neatly coiled. The content of this manual has been carefully checked and is believed to be accurate. However, The SELLER assu- mes no responsibility for any inaccuracies that may be contained in this manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the PRO-CaptureSDI features and specifications is subject to change without further notice.
- Page 10 ® PRO-CaptureSDI...
- Page 11 ® PRO-CaptureSDI Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products. We reserve the rights to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
- Page 12 ® Thank you for choosing gofanco www.gofanco.com March, 2018 Ver. B Copyright © 2018 by gofanco, LLC. All rights reserved.
