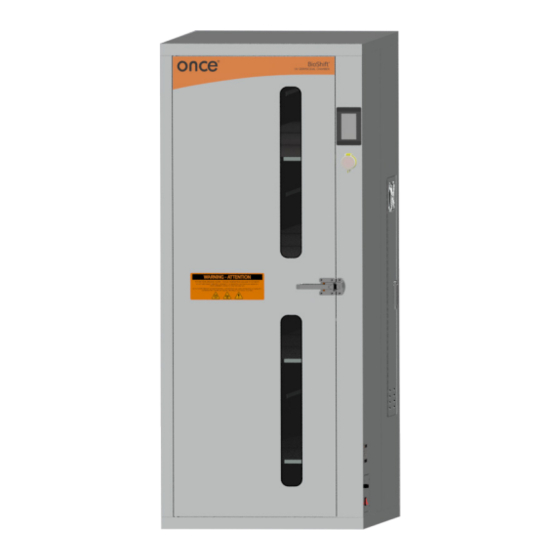

BioShift Pass-Through UV-C Germicidal
Chamber - Instruction Manual
This manual provides user guidelines and additional operation
instructions for the Large BioShift Pass-Through UV-C Germicidal Chamber.
(Model 24-0201, 12NC: 929002100323)
For service or parts call your
sales representative, visit our website:
www.once.lighting/uv-c
Or contact us at:
Once Inc.
United States
Germany
Poland
15255 23rd Ave N
Am Südfeld 7
Wloclawska 167
Plymouth, MN 55447
49377 Vechta
87-100 Tourn
+1 (763) 381-5621
+49 (0) 4441 8898-10
+48 (56) 699-5330
info@onceteam.com
info.germany@onceteam.com
info.poland@onceteam.com
Advertisement
Table of Contents
Related Manuals for Once BioShift Pass-Through UV-C Germicidal Chamber Large
Summary of Contents for Once BioShift Pass-Through UV-C Germicidal Chamber Large
- Page 1 Large BioShift Pass-Through UV-C Germicidal Chamber. (Model 24-0201, 12NC: 929002100323) For service or parts call your sales representative, visit our website: www.once.lighting/uv-c Or contact us at: Once Inc. United States Germany Poland 15255 23rd Ave N Am Südfeld 7...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ..............................2 Specifications .............................. 3 Safety ................................. 4-5 Installation ..............................6 Touchscreen Display ..........................7-9 Home Screen Components ....................7 Maintenance Screen Components .................. 8 Settings Screen Components .................... 9 Programming ............................10 Cycle Time ..........................10 Sleep Timer .......................... -
Page 3: Introduction
INTRODUCTION Health and wellbeing is a critical component to sustain an enjoyable life. It’s why the quality of the air we breathe and cleanliness of the items we touch every day matters. The germicidal properties featured in the BioShift Pass-Through UV-C Germicidal Chamber offer a proven and effective way to disinfect and destroy harmful micro- organisms. -
Page 4: Specifications
SPECIFICATIONS Dimensions Outside 30” wide x 46.5” deep x 72” high (762 x 1180 x 1828 mm) Weight 375 lbs. (170 kg) Functional Operating Power / Current 110V: 785W / 7.2 A, 240V: 755W / 3.3 A Standby Power / Current 110V: 19W / 175 mA, 240V: 21W / 158 mA Input Voltage 110-240VAC, 50/60 Hz (voltage fluctuation ±10%) -
Page 5: Safety
SAFETY Definition of Symbols RISK OF UV CAUTION BIOHAZARD EXPOSURE Warning • It is possible that emissions from this product may interfere with some sensitive appliances when placed nearby or in the same circuit as those appliances. The user should be aware of this potential and take appropriate measures to avoid interference. - Page 6 SAFETY Features Emergency Stop The safety switch can be found on either side and inside of the chamber and can be used at any time to stop the operation. Pressing EMERGENCY STOP disconnects all power. Open Door(s) BioShift chamber will not operate when the doors are open. The doors cannot be opened during cycle time unless EMERGENCY STOP is pressed.
-
Page 7: Installation
INSTALLATION The BioShift chamber can be installed on its own or inside a wall to utilize its pass- through function. A minimum wall cutout of 30’’ x 72’’ is recommended for installation. Note: The BioShift chamber can be installed in dry locations only (Pour emplacements secs seulement). -
Page 8: Touchscreen Display
TOUCHSCREEN DISPLAY The touchscreen display is located on the clean side of the BioShift chamber. Home Screen Components (1) Cycle Time Display (2) Chamber Start / Stop (3) Chamber Status (4) Settings (5) Maintenance... -
Page 9: Maintenance Screen Components
TOUCHSCREEN DISPLAY Located under the Maintenance Button. Maintenance Screen Components (1) View Lamp Life Remaining (2) Reset Lamp Life (3) View Lamp Replacement Info (4) Run 100mJ/cm² Dose Test (5) Run 250mJ/cm² Dose Test (6) Run 1000mJ/cm² Dose Test... -
Page 10: Settings Screen Components
TOUCHSCREEN DISPLAY Located under the Home Screen Settings button. Settings Screen Components (1) View Set Lamp Cycle (2) Set Lamp Cycle (3) Set Sleep Time (4) Expired Lamp Life (5) Contact ONCE ®... -
Page 11: Programming
Choose the Set Cycle button. Note: The time is set by arrowing up or down, programmed in MM:SS. • Once desired lamp life cycle has been chosen, select the check mark to set. PROGRAMMING ITEMS TO NOTE: • Controller cannot be programmed if EMERGENCY STOP button(s) are pressed in. -
Page 12: Maintenance
Replacement lamps have been installed and Lamp Life needs to be reset. Simply follow the red exclamation point to the source of the issue. Note: Lamp life remaining will never go negative. Once it reaches zero, it will remain until Lamp Life is reset. -
Page 13: Check Lamp Life
Maintenance menu (see Maintenance Screen Components). Order Replacement Lamps and Ballasts The information required for ordering new lamps include the lamp part number and ONCE contact information. This information can be found from the Maintenance screen ® under Lamp Replacement Info. -
Page 14: Cleaning
It is important to regularly verify the UV-C dose output of the BioShift chamber to ensure proper disinfection. Every 50 cycles or once per month, whichever comes first, the operator shall verify that the UV-C dose exceeds a minimum of 100 mJ/cm in a short, programmed test cycle. -
Page 15: Operating
OPERATING Ensure power switch is turned on and all Emergency Stop buttons are released. Place objects in chamber following guidelines below. • Do not stack items / supplies in the chamber. • Leave 6” between each product in the chamber with no more than 3 across. •... -
Page 16: Warranty
Corrosion due to use of improper solvents or detergents. Repair or modification performed by anyone other than ONCE or authorized ® person. Use of spare parts supplied by anyone other than ONCE or authorized person. ® Components not covered under warranty: Door Magnets... - Page 17 Corrosion due à l’utilisation de solvants ou de détergents inappropriés. Réparation ou modification effectuée par une personne autre que ONCE” ou une personne non autorisée. Utilisation de pièces de rechange fournies par toute personne autre que ONCE “ou non autorisée. Composants non couverts par la garantie:...
- Page 18 • If a Product fails to operate in accordance with this warranty, ONCE, at its discretion, will repair or replace the Product or the defective part thereof or reimburse warranty holder for the purchase subject to the terms and conditions set forth below.
- Page 19 • With respect to products sold to the Purchaser by ONCE but not bearing the ONCE name or sub-brands, ONCE makes no warranty of any kind, express or implied, including,...
- Page 20 • In addition to those limitations and exclusions of liability of ONCE as set forth in any agreements that ONCE enters, has entered or may have entered into with any party in relation to the supply, provision, donation and/or otherwise making available of BioShift Chambers, ONCE explicitly excludes any and all liability towards any party –...
- Page 21 À la demande de ONCE, les produits non conformes ou défectueux deviendront la propriété de ONCE dès qu’ils auront été remplacés. • ONCE se réserve le droit de prendre la décision finale sur la validité de toute demande de garantie. Termes et conditions supplémentaires •...
- Page 22 • ONCE ne sera en aucun cas tenu responsable des coûts ou des dépenses de retrait ou de réinstallation, y compris, sans s’y limiter, des coûts ou des frais de main-d’œuvre, des frais d’expédition et de manutention, ou des frais de retour.
- Page 23 En plus des limitations et exclusions de responsabilité d’ONCE énoncées dans tout accord que ONCE conclut, a conclu ou peut avoir conclu avec toute partie en ce qui concerne la fourniture, la fourniture, le don et / ou la mise à disposition de BioShift Chambers, ONCE exclut explicitement toute responsabilité...
-
Page 24: Contact Information
Pass-Through UV-C ® Germicidal Chamber For more information and references visit us online at www.once.lighting/uv-c Manual valid for all 24-0201 models Model number can be found on product nameplate For service or parts call your sales representative, visit our website: www.once.lighting/uv-c...
