Ecomist EcoProC Instructions

6
Solenoid ON/OFF Switch
The EcoProC needs constant battery power to enable the LCD clock
to continue running. Therefore, the SOL ON/OFF switch on the
Circuit Board only turns off the solenoid valve, not the entire unit.
To ensure the EcoProC will spray, the SOL ON/OFF switch must be in
the ON position. Note: To completely switch off the unit , remove the
batteries.
7
Installation
Where to install
• Install in a location where air currents will circulate the aerosol
spray to areas where it is most required.
• Mount dispenser approximately 2 meters above the fl oor
preferably where there is a clear area between the dispenser and
the fl oor
DO NOT install near or next to an open window or extractor fan as
aerosol spray will be lost.
DO NOT install near sources of ignition. (Aerosols are fl ammable)
DO NOT spray Insect Killer aerosols directly on humans, pets, exposed
food, food preparation areas or food utensils.
CAUTION: Do not install over appliances or furniture, e.g.
Refrigerators, items made of plastic or polished surfaces. Ensure
adequate ventilation and airfl ow as excessive inhalation or
exposure may cause respiratory and/or skin irritation
8 Mounting Dispenser
To open dispenser separate the front cover from the back plate by
pressing on the bottom of the dispenser and pull apart gently.
Fix back plate to wall with screws provided.
If using the free standing option fi x inside the recess in the back plate
with the screws supplied.
9
Ecomist Warranty
Ensure you have fi lled out your EcoProC warranty
card and mailed it to your local Ecomist distributor.
Please keep your receipt as a proof of date of
purchase.
fi g 4
Program
Dip Switches
New Zealand – 0800 75 75 78
nty
r.
of
South Africa - 0861 ECOMIST
Inside Front Cover
Solenoid Valve
Insert can in here and screw
clockwise to tighten
Solenoid
OFF/ON
Circuit
Switch Board
SOL OFF/ON
ON
1 2 3 4 5 6 7 8
MO
HOUR MINUTE DAY RESET
Contact Ecomist
www.ecomistsystems.com
Australia – 1800 243 500
www.ecomist.com.au
www.ecomist.co.za
Korea - 080 918 5100
www.ecomist.co.kr
Philippines - 687-2161

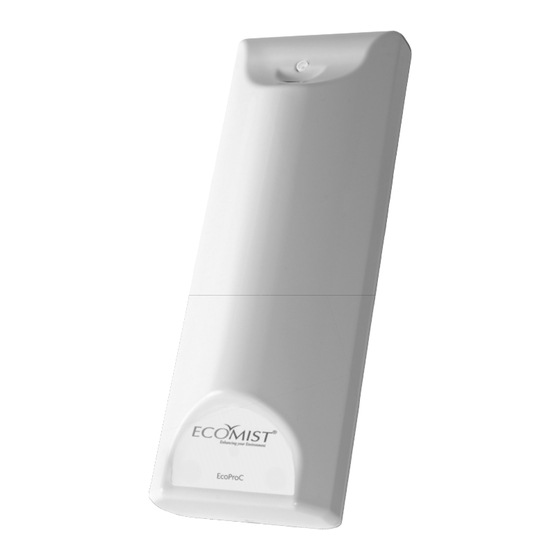

EcoProC
COMMERCIAL AUTOMATIC
AEROSOL DISPENSER
INSTRUCTIONS
