Summary of Contents for Dingheng DHM-15

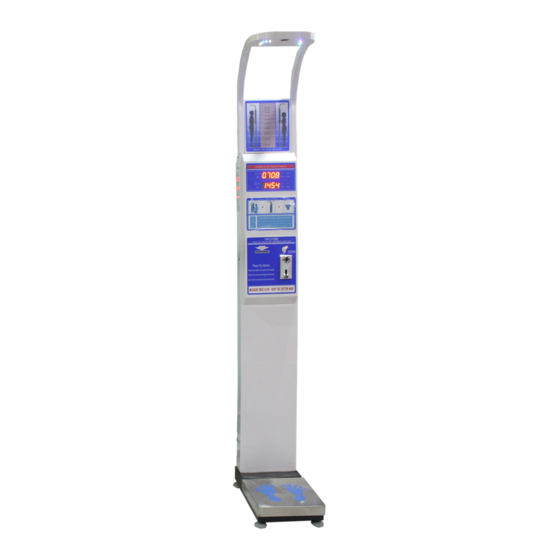

- Page 1 DHM-15 HEIGHT AND WEIGHT MACHINE The Standard Basic Unit of DHM-15 Height and Weight Machine: Mainframe- -Saddle- Picture 2 Picture 1 Height measuring component Picture 3 picture 4...
- Page 2 DHM-15 HEIGHT AND WEIGHT MACHINE Installment instruction: First: Open the packaging bag and check all the components. Second: Connect mainframe and saddle with M8 screw (picture1), insert the sensor to the bottom of the saddle. (picture2) Third: Insert height-measuring component to the two holes on the top of the mainframe, then fix them with four M4 screws.
- Page 3 DHM-15 HEIGHT AND WEIGHT MACHINE saddle. Measurement: the scale enters into the measurement state when puts in fixed number of coins. The scale begins to measure the height and weight after person standing on the saddle. After the measurement of height and weight, some sound will hint you.
- Page 4 DHM-15 HEIGHT AND WEIGHT MACHINE All functions are set and adjusted by keys on the main board( ENT ESC ）.Please look at the diagram of the main board. Menu Introduction: There are 12 items in the menu and you can enter into the main menu codes selection by pressing + or under the state of waiting.
- Page 5 DHM-15 HEIGHT AND WEIGHT MACHINE Press ENT store and exit. Press ESC exit without store. The division is 0.01kg.After the adjustment, please see the corrected value, if it reaches the maximum figure, there may be something wrong with the scale.
- Page 6 DHM-15 HEIGHT AND WEIGHT MACHINE the results after measurement. 0 means scale will not pronounce.1 means the scale only speaks out the results after measurement. 2 means the scale pronounces “welcome” while in the waiting state but does not speak out the results.
- Page 7 DHM-15 HEIGHT AND WEIGHT MACHINE Display 2 in the weight screen is the present print parameter(scope:0-3).The present parameter 2 means print.0 means no need to be printed out, 1 means no print of the normal weight scope,3 means print out the former result.
- Page 8 DHM-15 HEIGHT AND WEIGHT MACHINE Press + or - will adjust the present value into that of needed. Press + continuously will increase the volume: Press - continuously will decrease the volume. Press SEL can adjust the pronunciation or set the outside volume.
- Page 9 DHM-15 HEIGHT AND WEIGHT MACHINE Changing print paper instruction: First: Make the axis threads the printing paper and fix them on the frame (picture 1) Second: Open the paper roll, tear the opening place and make sure the tearing place is...
- Page 10 DHM-15 HEIGHT AND WEIGHT MACHINE The Settings of Coin Acceptor 1. Setting Turn on the machine Move the switch of “MGM, NOM, MAX” at the rear part of the coin acceptor to the position of “NOM”, and then move the switch of “set, start” to the position of “set”.
