Summary of Contents for Ovideon LC2700w

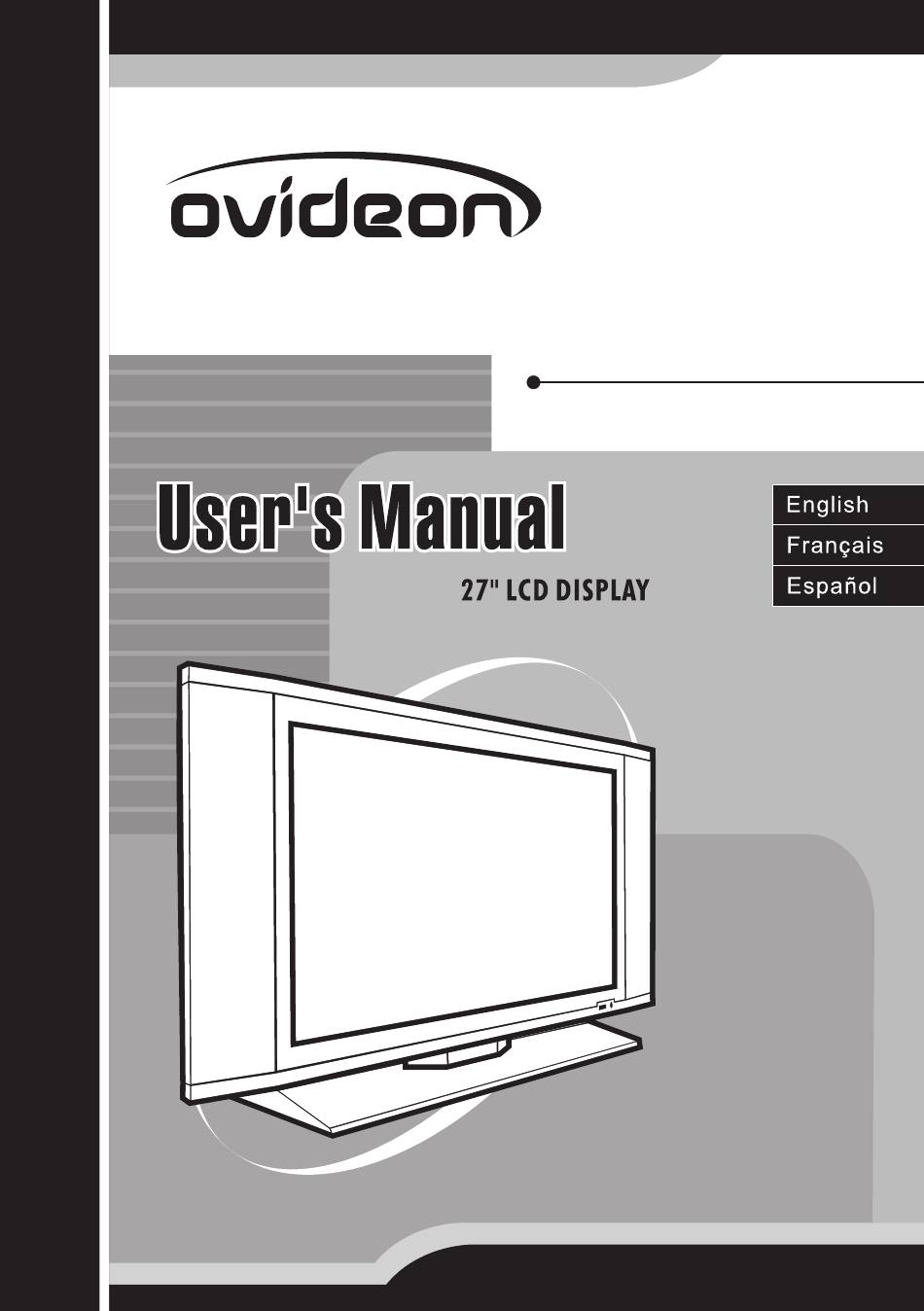

- Page 1 LC2700w...
-
Page 2: Table Of Contents
User's Manual 27" LCD display Table of contents Cautions Accessories and descriptions LCD display installation English The connectors and sockets Remote controller Display Menu How to display modes How to use the advanced menu Other information Trouble-shooting VGA/DVI mode specification Specifications TV signal system... -
Page 3: Cautions
Cautions Warning To protect the device from fire or electric shock, keep your LCD CAUTION display away from rain or moisture. RISK OF ELECTRIC SHOCK DO NOT OPEN Caution ATTENTION To protect your device from electric shock, be sure to plug RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR into socket securely. - Page 4 Cautions Tips for your LCD display maintenance Maintenance If any of following occurs, unplug your LCD display and contact your distributor or qualified technician to repair your LCD display: Power cord or plug is damaged. Liquid dropped inside your LCD display. LCD display is damp or wet.
-
Page 5: Accessories And Descriptions
Accessories and descriptions 1. Audio / Video cable (optional) 2. VGA cable 3. Power cord (USA or England or Europe) 4. Remote controller (optional) 5. Remote controller battery (optional) 831.3 648.9 (mm) The best reception angle for remote controller and infrared line receiver (The exceeding angle results in unstable reception) -
Page 6: Lcd Display Installation
LCD display installation method The connectors and sockets Connection ports VGA input VGA (Analog) Scart DVI (Digital) (Euro Region) PC Audio Input RS232 Input Audio Output (L/R) S-Video Video Subwoofer Output Tuner Power input Turning on the LCD display Power Panel control Menu Source... - Page 7 LCD display installation method The connectors and sockets Connection ports' functions Port Functions Power Input Supply power for LCD display VGA Input (analog) Inputs VGA analog signals; and can be used together with IBM or compatible computers. DVI Input (digital) Inputs Digital signals;...
-
Page 8: Remote Controller
LCD display installation method Remote controller Installation of battery Insert 2 AAA batteries into the remote controller. Make sure + and - are facing proper directions. If the remote controller is not used for a long time, please take the batteries out to avoid damages caused by the leaking liquid. - Page 9 LCD display installation method Remote controller POWER To turn on LCD display or enter into standby mode. MUTE Press the button to shut down the voice of LCD display. Press again or press volume +/- to restore the original volume. Press the button to activate Picture In Picture mode (Please refer to P10 for details) SOURCE (select the small picture's signal source) Press the button to select the small picture's signal source (Please refer to P10 for details)
- Page 10 LCD display installation method Remote controller SLIDE COVER Press the slide cover to the end. Teletext is ready to use. Teletext (for PAL/SECAM system only, not applicable for NTSC) ON/OFF Press this button to activate Teletext. Press again to turn off this function. R/G/Y/C Press this button to select the pictures with various colors of text.
-
Page 11: How To Display Modes
Pop-out menu How to display modes Main picture mode 1.You can change the signal source of the main picture through the MAIN MODE of your remote control. The signal source you choose appears on the upper left corner of the screen (Diagram 1). 2.The main picture will be changed in the sequence as follows: TV/CVBS(AV)/S-VIDEO/SCART (for Europe only)/YPbPr1/YPbPr2 or D4 (for Japan only)/VGA/DVI. -
Page 12: How To Use The Advanced Menu
Pop-out menu How to use the advanced menu 1. Users can use either the MAIN MODE button or the quick selection button on the remote control to select the proper mode. Once the signal source is detected, the system mode selected by users appears on the upper left corner of the screen. - Page 13 Pop-out menu How to use the advanced menu Items Range Activation mode CONTRAST TV/S-VIDEO/AV/YPbPr1/YPbPr2/SCART/D4/PC/DVI DISPLAY BRIGHTNESS TV/S-VIDEO/AV/YPbPr1/YPbPr2/SCART/D4/PC/DVI COLOR-TEMP High / Middle / Low / User GREEN BLUE WHITE BALANCE COLOR TV/S-VIDEO/AV/YPbPr1/YPbPr2/SCART/D4 TV/S-VIDEO/AV/YPbPr1/YPbPr2/SCART/D4 SHARPNESS TV/S-VIDEO/AV/YPbPr1/YPbPr2/SCART/D4 FOCUS YPbPr1/YPbPr2/SCART/D4 RESET< or > TV/S-VIDEO/AV/YPbPr1/YPbPr2/SCART/D4/PC/DVI CC1~CC4 / T1~T4 / OFF TV/AV ( For NTSC) V-CHIP...
- Page 14 Pop-out menu How to use the advanced menu DISPLAY 1. Press MENU button on the remote controller to display the main menu. 2. Press button on the remote controller to select the Display to be adjusted. 3. Press button on the remote controller to select the item to be adjusted. 4.
- Page 15 Pop-out menu How to use the advanced menu GEOMETRIC GEOMETRIC CLOCK PHASE H-POSITION V-POSITION RESET < or > 1. Press MENU button on the remote controller to display the main menu. 2. Press button on the remote controller to select the main item (Geometric) to be adjusted. 3.
- Page 16 Pop-out menu How to use the advanced menu (for American NTSC) 1. Press MENU button on the remote controller to display the main menu. 2. Press button on the remote controller to select the main item (TV) to be adjusted. 3.
- Page 17 Pop-out menu How to use the advanced menu (for Europe) 1. Press MENU button on the remote controller to display the main menu. 2. Press button on the remote controller to select the main item (TV) to be adjusted. CH SCAN 3.
- Page 18 Pop-out menu How to use the advanced menu PR-Edit SKIP ++++ ++++ ++++ ++++ ++++ ++++ ++++ ++++ ++++ SELECT MENU EXIT ENTER (Diagram 3) 1. Use the button on the remote controller to select what's PR you want to edit and press the button on the remote controller to enter the PR (Diagram 4).
- Page 19 Pop-out menu How to use the advanced menu AUDIO 1. Press the MENU button on the remote controller to display the main menu. AUDIO 2. Press button on the remote controller to select the VOLUME main item (Audio) to be adjusted. BASS 3.
-
Page 20: Other Information
Other information Trouble-shooting The following table contains the common problems and the solutions to these problems. Please check this list before you contact technicians. Problems Reasons Solutions No picture 1.Did you connect the power cord? 1.Connect power cord correctly. 2.Did you turn on power? 2.Turn on power. -
Page 21: Vga/Dvi Mode Specification
Other information VGA/DVI mode specification Active Refresh Pol. Horizontal Vertical Range Rate Clock Sync Back Front Total Sync Back Front Total Width Porch Porch Width Porch Porch 31.5 25.175 31.469 59.940 25.175 37.861 72.809 31.5 37.5 31.5 43.269 85.008 31.46 70.08 28.32 35.156... -
Page 22: Specifications
Other information Specifications Display panel Screen Size 597.12(H) X 335.88(V)mm (diagonal 26.97 inches) 16:9 WIDE Aspect Ratio Pixel Pitch 0.4665(H) X 0.4665(V)mm Number of Pixels 1280(H) X 720(V) Luminance 500cd/m (Typical) Contrast 500:1(Typical) Response Time 16ms Viewing Angle Typical 170 Degree(Horizontal/Vertical) Signals Input/out Video in RCA Jack X 1... -
Page 23: Tv Signal System
Other information TV signal system Colour and Broadcasting System by Country Country Colour Stereo Subtitles Albania Argentina PAL-N Australia FM-FM Teletext FM-FM Austria Teletext Azores(Portugal) Bahamas NTSC Bahrain Barbados NTSC Belgium Nicam Teletext Bermuda NTSC Brazil PAL-M Bulgaria SECAM Canada NTSC Canary Is China... - Page 24 Other information TV signal system Country Colour Stereo Subtitles Iceland India Indonesia Iran SECAM Ireland Nicam Teletext Israel Nicam Teletext Italy FM-FM Teletext Jamaica SECAM Japan NTSC Matrix Jordan Kenya Korea NTSC Luxembourg Nicam Teletext Madeira Madagascar SECAM Malaysia Malta Mauritius SECAM Mexico...
- Page 25 Other information TV signal system Country Colour Stereo Subtitles Portugal Nicam Teletext Romania Russia SECAM Saudi Arabia SECAM Seychelles Singapore South Africa South Korea NTSC Spain Nicam Teletext Sri Lanka Sweden Nicam Teletext Switzerland FM-FM Teletext Tahiti SECAM Taiwan NTSC Thailand Trinidad NTSC...
