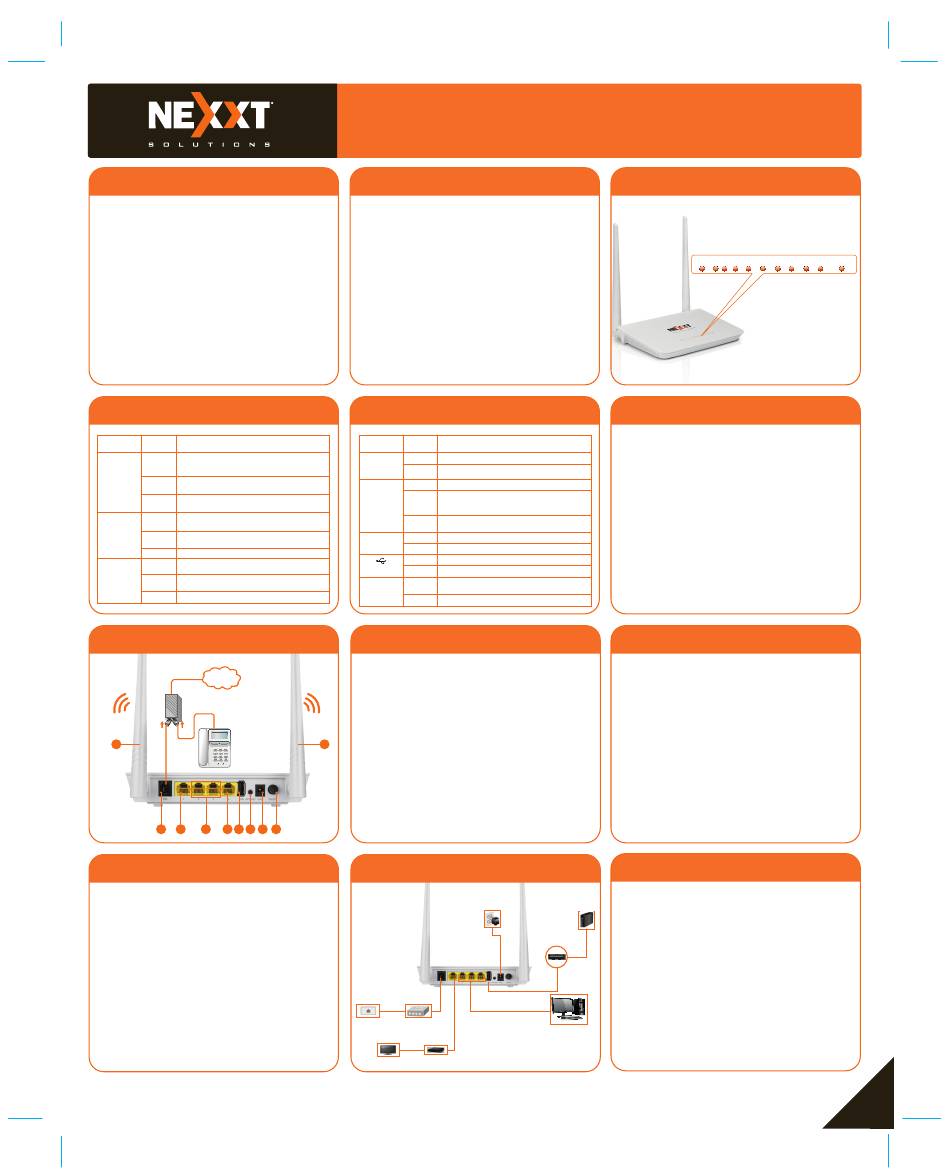

Nexxt Solutions Nova300 Quick Installation Manual

1
Thank you for purchasing the new Nova300 ADSL
Modem and Wireless Router from Nexxt Solutions™.
If any of the following items are mismatched, missing
or damaged, please contact the merchant from
whom you purchased the unit for immediate
replacement.
• AML02304U1 ADSL modem/router
• Network cable
• Telephone cable
• Line filter/splitter
• Power adapter 110/220V
• Quick installation guide
4
LED
Status Description
indicator
The link between the modem/router and a
On client device is established through that port
LAN 1/
ITV, 2, 3, 4 The device is actively sending or transmitting
Blinking
/WAN data over that port
No active connection is detected in that
Off
LAN port
Blinking
The physical connection failed
slowly
DSL
Blinking
The device is synchronizing
fast
On The ADSL connection has been established
The WLAN LED lights up when the wireless
On
feature is enabled
The device is actively sending or transmitting
WLAN Blinking
data packets
Off The wireless connection is disabled
7
Internet
1
2 3 4 5 6 7 8 9
10
4.
Connect your network devices to the LAN ports of
the router.
5. Connect the ADSL line from the service provider to
the single port of the splitter using one of the RJ-11
cables provided. From the dual port side, use the
second RJ-11 cable to connect to the DSL jack on
your modem/router. The open available port then
can be used to connect a phone line.
6. Finally, power on the modem/router and your PC.
7. The PWR, SYS, DSL, WLAN and any active LAN
LEDs will initially light up on the modem when the
hardware connections have been successfully
completed, as shown in the diagram below.
2

Preliminary steps

This advanced network device combines the functionality
of an ADSL+ modem, Wi-Fi router, and a four- port
switch. Before setting up the modem/router, you must
have a high speed subscriber line available, known as
DSL. The set up procedure used in this guide is based
on this type of internet connection.

Product layout

1 unit
1 unit

Front panel

2 units
LED indicators on the front panel provide information
1 unit
about network activity, the connection and link status
1 unit
of the ports in real time. They also facilitate activity
1 unit
monitoring and troubleshooting the performance of
the device.
5
LED
Status
indicator
Blinking The system is operating properly
SYS
Solid
The system fails or is not operating properly
or off
On The client is connected successfully
The LED starts blinking during WPS
Blinking authentication on a client, which is enabled
WPS
through the device button or interface
When no wireless clients are connected,
Off
the WPS turns off after two minutes
On The device is powered on
POWER
Off The device is powered off
On The USB port is active
USB
Off The USB port is not in use
The device is actively connected to
On
the internet
INTERNET
Off No internet connection is detected
8
1. Omnidirectional antennas
2. DSL: This asymmetric digital subscriber line port
provides the connection to the ADSL line.
3. LAN 1/ IPTV: This IPTV port can be used for
connecting an Internet Protocol TV receiver, and as
a LAN port, when the IPTV feature is not enabled.
4. LAN ports (2-3): Connect your laptop or desktop
computers in your network to any of these RJ45
1
Ethernet ports
5. LAN 4/WAN: This port can be used to establish a
WAN link, and as a LAN port, when the former feature
is not being used.
6. USB 2.0 port: Multifunctional USB port supports
printer sharing, file sharing and mass storage devices.
7. WPS/Reset: Press this button for about one to three
seconds to enable WPS encryption. Press this button
for about seven seconds to restore the device to its
factory default values.
11
RJ-11
Phone Cable/xDSL
Jack Modem
A/V
TV TV receiver
Quick Installation Guide
3
6
Note:
Description
Port 1 can be used interchangeably as an IPTV or
•
LAN connection.
Port 4 can be used interchangeably as a LAN or
•
WAN connection.

Back panel

The rear panel provides the physical connectors
for power and the client network devices.
9
8. DC input: Connect the supplied power adapter to
this jack.
9. Power switch: Press this button to turn the device
on and off.

Hardware installation

1. Power off your PC, and the DSL modem/router.
2. Find the optimum location for the router. The best
place is usually at the center or your wireless
network with the antennas in the upright position.
3. Connect one end of the supplied power adapter to
the AC input jack located on the rear panel of the
router, before plugging the other end to a standard
electrical wall outlet.
12
Power

Modem/router configuration

Shared USB
storage or
1. After all connections have been properly done,
printer port
access the modem/router web interface by typing
Power
USB http://192.168.1.1 on the address bar. Press
Adapter
Line
enter to continue.
2. The login window will come up. The system will then
prompt you to enter the default user name and
password. Type admin in both cases. Click Login
to continue.
RJ-45
4/WAN 2 3 1/iTV DSL WLAN SYS WPS PWR USB INTERNET
