Summary of Contents for VOSS XD 3900

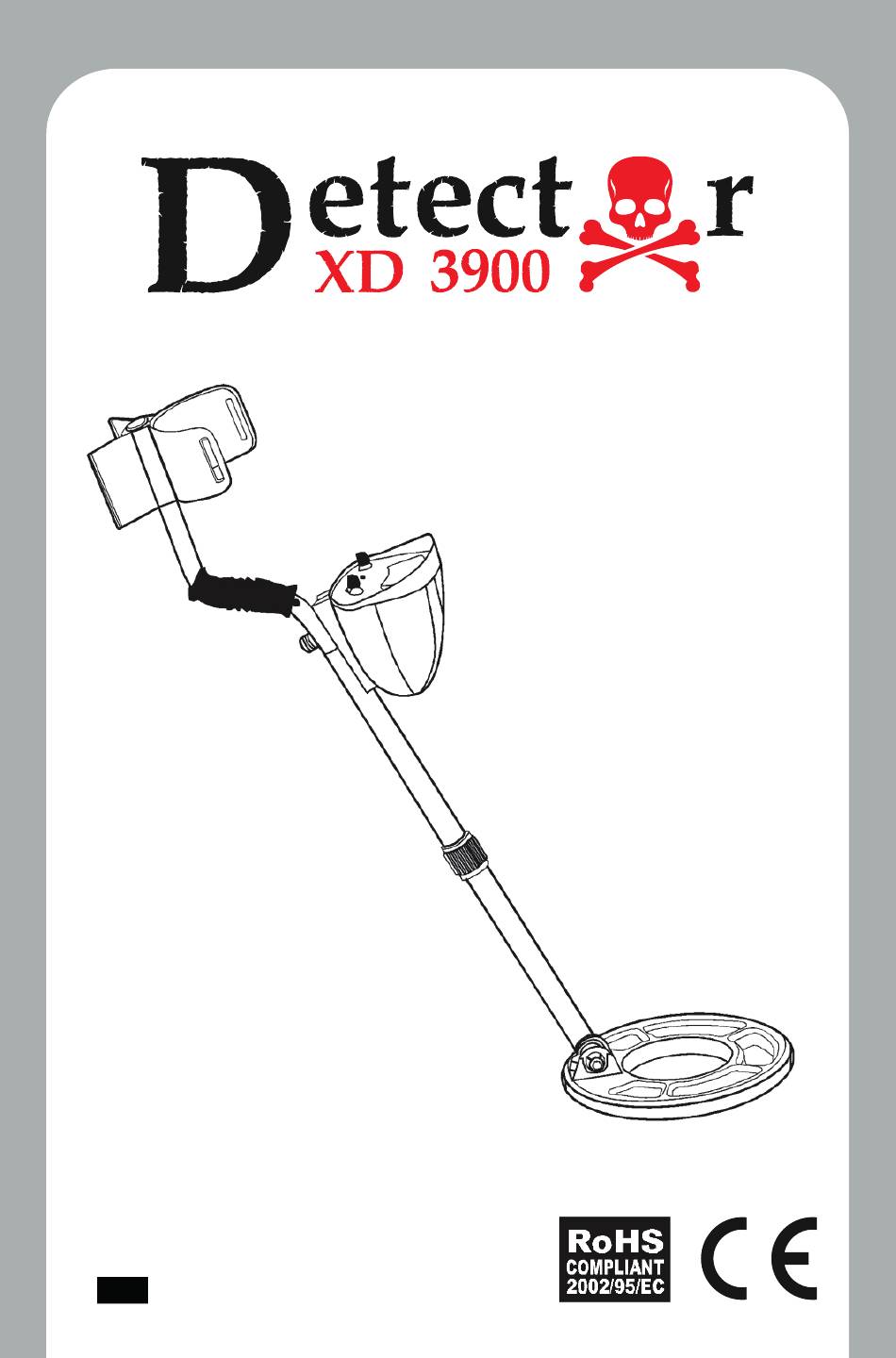

  • Page 1 Manual...

  • Page 2: Table Of Contents

    CONTENT INTRODUCTION 1.1 FEATURES OF YOUR DETECTOR 2. PARTS AND NAMES 3. PREPARATION 3.1 ASSEMBLING THE DETECTOR 3.2 INSTALLING BATTERIES 3.3 LOW BATTERY ALARM 3.4 USING A HEADPHONE 4. FUNCTIONS AND INDICATORS 4.1 VIEW METER 4.2 DISC 4.3 SENC 4.4 MODE SWITCH 4.5 TARGET 5.

  • Page 3: Introduction

    1. INTRODUCTION Thank you for purchasing our metal Detector. With this powerful and versatile device, you can hunt for coins, relics, jewelry, gold, and silver just about anywhere. The detector is versatile and easy to use. This unit has an auto ground balance used in Disc and All Metal Modes.
  • Page 4 1.SEALING 8.KNOB NUT 2.ARMREST 9.MAIN ENGINE 3.ARMREST STEM 10.UPPER STEM 4.ADJUSTMENT 11.STENLOCK NUT 5.CONTROL PANEL 12.LOWER STEM 6.HANDLERY COMPARTMENT 13.SEARCH COIL KNOBS 7.CONTROLLER UNIT 14.SEARCH COIL ASSEAMLY...
  • Page 6 3.2.Turn the Disc dial anticlockwise to the OFF position to make sure that the detector is OFF. DISC 3.2.2 Slide the battery cover away from the BATTERY COMPARTMENT (9).

  • Page 7: Low Battery Alarm

    3.3low battery alarm when indicator twinkles and speak do do , user has to replace the battery.

  • Page 8: Functions And Indicators

    4. FUNCTIONS AND INDICATORS 4.1 VIEW METER The pointer will swing to the right as the unit has made a detection. SENSITIVITY 4.2 DISC You can rotate the control from low to high to discriminate between metals. 4.3 SENC When you rotate the SENS from on to high, the sensitivity is gradually increased. In general use, you can set the SENC to a higher position.

  • Page 9: Operation

    5. OPERATION our detector has 3 operation modes: ALL, DISC, TARGET. This three s are motion modes. You have to move the search coil to find your target. 5.1 ALL. Usually is used in general searching. In this mode, the unit will respond all kinds metal.
  • Page 12 VOSS GmbH & Co. KG Ohrstedt-Bhf Nord 5 D- 25885 Wester-Ohrstedt www.voss-group.eu...

This manual is also suitable for:

Hd 3900
