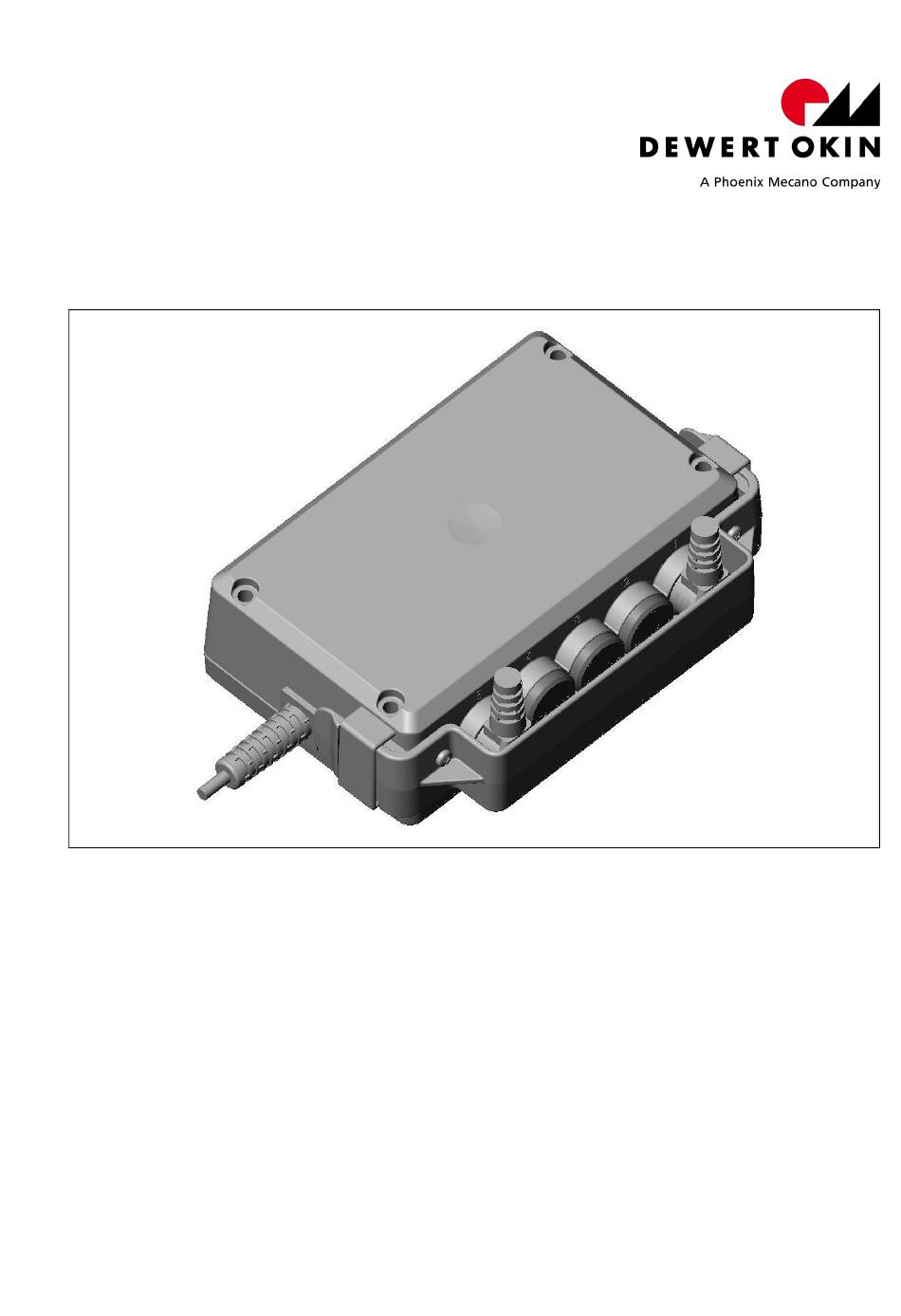

- Page 1 CU 155 DC Adapter CU155 DC-ADAPTER Installation Instruction (Original installation instruction, translation) 1 / 24 72810(a)
- Page 2 CU 155 DC Adapter 72810(a) 2 / 24...
- Page 3 CU 155 DC Adapter Foreword Disclaimer and exclusion of liability DewertOkin is not responsible for damage resulting from: failure to observe these instructions, changes made to this product which have not been approved by DewertOkin, or the use of replacement parts which have not been approved or manufactured by DewertOkin.
-
Page 4: Table Of Contents
CU 155 DC Adapter Table of Contents Table of Contents General About these installation instruction Conventions used Safety Notices Proper and intended usage Selection and qualification of personnel Notice on safety during operation Product labelling Description of component Device components Layout of the CU155 DC-Adapter connections Technical Specifications CU155 DC-ADAPTER... -
Page 5: General
CU 155 DC Adapter General About these installation instruction This installation instruction must be followed in order to install the CU155 DC-ADAPTER suc- cessfully and safely in the end product. This instruction is not an operating manual for the end product. -
Page 6: Safety Notices
CU 155 DC Adapter Safety Notices Proper and intended usage The CU155 DC-ADAPTER is intended to be installed in an end product. It can be used as fol- lows: for connecting an additional peripheral device (e.g. a weighing system) using a DIN- 41529 plug for connecting a LED lamp with DIN 41529 plug (for example, for reading lamps). -
Page 7: Selection And Qualification Of Personnel
CU 155 DC Adapter Selection and qualification of personnel The CU155 DC-ADAPTER should only be installed into the end product by someone who has completed training in electronic motor assembly or has equivalent qualifications. You should only install the CU155 DC-ADAPTER when you are qualified to do so. Otherwise, a properly qualified person should be found for this task. -
Page 8: Product Labelling
CU 155 DC Adapter Product labelling 2.4.1 Type label A type label on each CU155 DC-ADAPTER specifies the exact name and serial number, it also states the technical specifications valid for that particular CU155 DC-ADAPTER. The fol- lowing illustration shows where the specifications are located on the type label of the CU155 DC-ADAPTER. -
Page 9: Description Of Component
CU 155 DC Adapter Description of components The CU155 DC-ADAPTER is a component that is connected to a controller for supplying power to an additional peripheral device (such as a weighing system) and/or to an LED lamp. A peripheral device (5 VDC / 9 VDC / 12 VDC or 24 VDC / max. 600 mA) can be con- nected to the CU155 DC-ADAPTER using a DIN-41529 plug. -
Page 10: Layout Of The Cu155 Dc-Adapter Connections
CU 155 DC Adapter Layout of the CU155 DC-Adapter connections Refer to the sticker on the CU155 DC-Adapter for details about layout and positioning of the connections. The sticker is located above the sockets. It indicates the proper type of connec- tions. -
Page 11: Technical Specifications
CU 155 DC Adapter Technical Specifications CU155 DC-ADAPTER Input voltage 29VDC Current consumption max. 1,5A Output voltage on socket 1 24VDC Output current on socket 1 max. 350mA Output voltage on socket 5 5VDC, 9VDC, 12VDC or 24VDC adjustable using a rotary control switch max. - Page 12 CU 155 DC Adapter Figure 5 Top view CU155 DC-ADAPTER, (dimensions in mm) Figure 6 Front view CU155 DC-ADAPTER, (dimensions in mm) 72810(a) 12 / 24...
-
Page 13: Installation
CU 155 DC Adapter Installation Safety notices to observe during installation Basic safety rules must be followed in order to ensure that the end product can be continually operated in a safe manner. These rules must be observed while using the end product and while installing the CU155 DC-ADAPTER. - Page 14 CU 155 DC Adapter 5.2.1 Installation and dismounting for the CU155 DC-ADAPTER CAUTION Assembly and disassembly should only be done where the drive is not supporting a load! There are four mounting holes in the CU155 DC-ADAPTER which can be used to attach it to the end product with the appropriate screws (for example, M4 x 50 screws).
- Page 15 CU 155 DC Adapter 5.2.2 Mounting the shield cover over the sockets The shield cover is attached to the CU155 DC-ADAPTER by snapping it into the guide slots. It can also be attached more securely to the CU155 DC-ADAPTER using suitable screws (ST 2.9 x 6.5;...
- Page 16 CU 155 DC Adapter 5.2.4 Elektrischer Anschluss CAUTION Electrical components should be connected or disconnected only when the mains power cord is unplugged. Routing electrical cables When routing the cables, be sure that: the cables cannot get jammed, no mechanical load (such as pulling, pushing or bending) will be put on the cables, and the cables cannot be damaged in any way.
- Page 17 CU 155 DC Adapter Adjust the output voltage for the peripheral devices 5.2.6 Figure 10 CU155 DC-Adapter with rotary control switch A Adjustable connection for peripheral device B Rotary control switch for setting voltage on on socket 5 socket 5 1 If necessary, unscrew both screws on the shield cover.
-
Page 18: Notices For Operation
CU 155 DC Adapter Notices for operation The factual information contained within may be used when you are creating the end-product manual. The installation instructions do not contain all information required for the safe opera- tion of the end product. They only describe the assembly and operation of the CU155 DC- ADAPTER as a partially assembled piece of machinery. -
Page 19: Troubleshooting
CU 155 DC Adapter Troubleshooting This chapter describes troubleshooting methods for fixing problems. If you experience an error that is not listed in this table, please contact your supplier. CAUTION Only qualified specialists who have received electrician training should carry out troubleshooting and repairs. -
Page 20: Maintenance
CU 155 DC Adapter Maintenance CAUTION You should only use spare parts which have been manufactured or approved by DewertOkin. Only these parts will guarantee a sufficient level of safety. Maintenance Type of check Explanation Time interval Check the function and safety A qualified electrician should Periodic inspections can of the electrical system... -
Page 21: Disposal
CU 155 DC Adapter Disposal The CU155 DC-ADAPTER consists of electronic components, cables and metal and plastic parts. You should observe all corresponding national and regional environmental regulations when disposing of the CU155 DC-ADAPTER. The disposal of the end product is regulated in Germany by Elektro-G, internationally by the EU Directive 2012/19/EC (WEEE), or by any applicable national laws and regulations. -
Page 22: Eu Declaration Of Conformity
EU Declaration of Conformity EG-Konformitätserklärung In compliance with Appendix IV of the EMC-Directive Nach Anhang IV der EMV-Richtlinie 2014/30/EU 2014/30/EU In compliance with Appendix IV of the LVD-Directive Nach Anhang IV der EU-Niederspannungsrichtlinie 2014/35/EU 2014/35/EU Nach Anhang VI der RoHS-Richtlinie 2011/65/EU In compliance with Appendix VI of the EU RoHS (inkl. - Page 23 DewertOkin GmbH Weststraße 1 32278 Kirchlengern - Germany Tel: +49 (0)5223/979-0 Fax: +49 (0)5223/75182 http://www.dewertokin.de Info@dewertokin.de ID-Nr.: 72810...
