One Control CrocEye User Manual

Hide thumbs

Table Of Contents

Thank you for your purchase of the CrocEye by One Control.

CrocEye is an accessory of One Control Crocodile Tail Loop (OC10), it expands the midi

capability of OC10.

Features:

• Expand the midi capability of OC10.

• Total 70 presets which map to the 70 programs in OC10.

• Handle 16 midi devices on 16 midi channels.

• Full range PC# and CC# control.

• Editable name for each preset.

• POL(Power On Link cable) Technology.

Preview

User's Manual

CrocEye

Table of Contents

Need help?

Do you have a question about the CrocEye and is the answer not in the manual?

Questions and answers

Summary of Contents for One Control CrocEye

Page 1 User's Manual CrocEye Thank you for your purchase of the CrocEye by One Control. CrocEye is an accessory of One Control Crocodile Tail Loop (OC10), it expands the midi capability of OC10. Features: • Expand the midi capability of OC10.

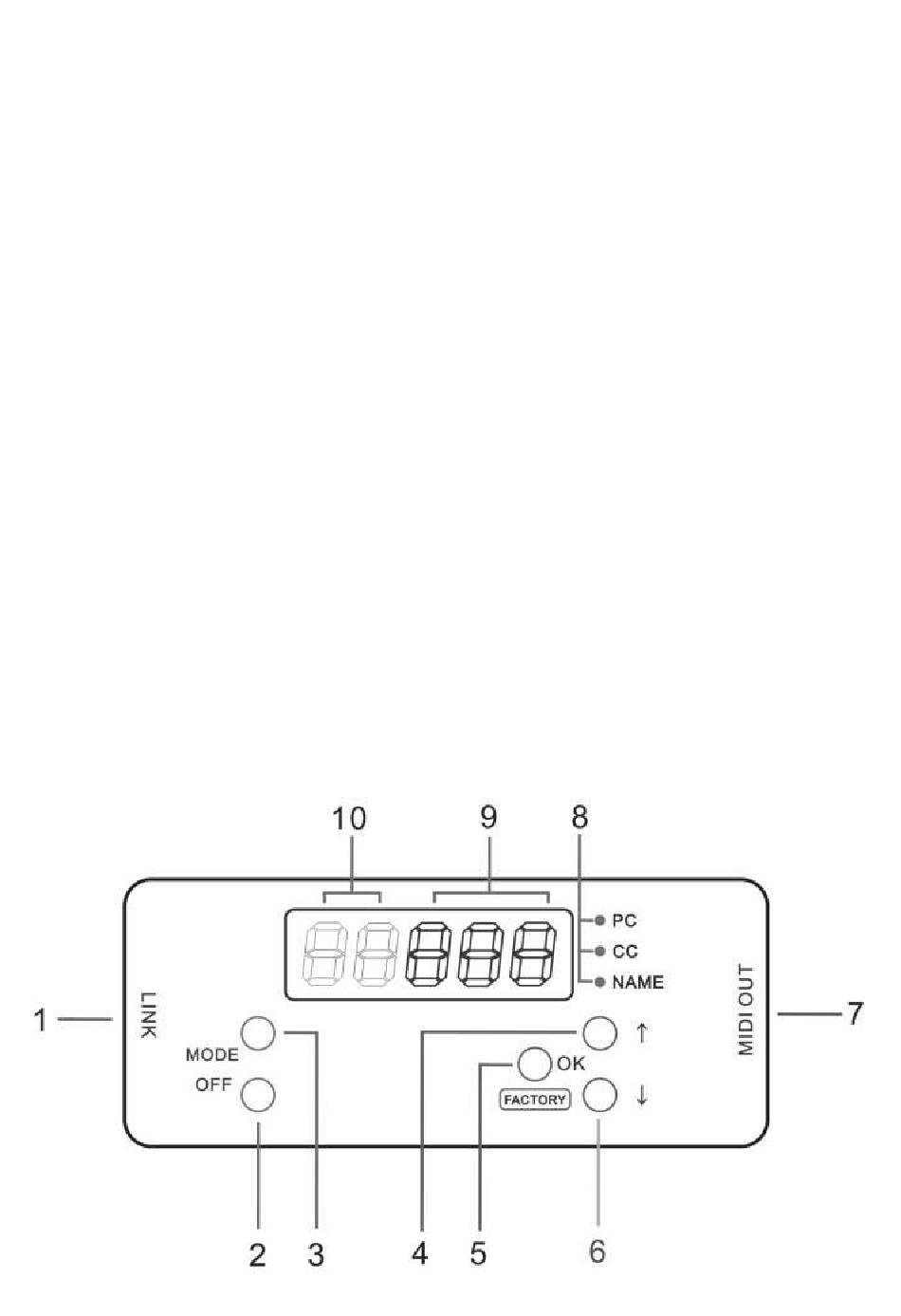

Page 2 1. LINK Connect to OC10 with a link cable. 2. OFF In edit mode, this button turn off the PC# and CC#. In recall mode, the button adjusts the screen brightness. 3. MODE In recall mode, hold this button to enter edit mode. In edit mode, press this button to select edit mode of PC#/CC#/NAME.
Page 3 CC# are stored into presets, which syncronize to programs (0~69) of OC10, when a program of OC10 is recalled, the corresponded CrocEye preset will send the stored PC# and CC# via the MIDI OUT jack. Chart 1 shows the structure of a CrocEye preset. Chart 1 Structure of a CrocEye Preset...
Page 4 Edit a Preset Chart 2 Symbols used in diagram short press a button hold a button for 2 seconds Note: When a PC#/CC#/NAME is changed by “UP”/“DOWN” button, the PC#/CC#/NAME will not be stored untill “OK” button is pressed.
Page 5 Edit PRE CC# Pre CC# is normally used to engage/bypass a midi device before its program/patch is changed by CrocEye. User can define 16 Pre CC# on 16 midi channels. The factory default Pre CC# value is as below. Chart 3 Default Pre CC#...
Page 6 Factory Reset Factory reset will restore the factory value to presets, Pre CC#, and screen brightness. keep holding , till the timer counts down from 5 to 0, CrocEye starts a factory reset. Chart 4 Factory PC#, CC#, NAME...
Page 7 Typical Connection...
Page 8 Specifications Dimensions: 94(W) x 39(D) x 35(H) mm / 3.7(W) x 1.54(D) x 1.38(H) inch Weight: 100g / 3.52 oz Power Supply: Power by Link Cable (POL) Current Drain: Less than 50mA...
