Supervision
✓ Form "C" AC fail relay output < 32VDC, < 240VAC @ 3A, resistive load only
✓ Form "C" battery trouble relay output < 32VDC, < 240VAC @ 3A, resistive load only
✓ Internal battery cut-off relay to protect batteries from deep discharge 9VDC & 18VDC
Environmental
✓ For indoor use only
✓ Operating temperature -0˚C to 49˚C - (32˚F to 120˚F)
Maintenance Procedure
The power supply & standby batteries should be tested at least once a year as follows:
• Check LEDs for normal state: AC ON Green, DC ON Green
• Check output voltage with normal load:
(assures proper voltage to float charge batteries)
For a 12V setting, voltage should read between 13.6 VDC and 13.8 VDC
For a 24V setting, voltage should read between 27.1 VDC and 27.6 VDC
• Disconnect AC input:
AC LED should be off, and all other LEDs should remain normal with battery back-up
• Check DC output (checks for operational standby batteries)
to be above 12.0 VDC for 12V setting and 24.0 VDC for 24V setting
• Apply AC and verify AC LED ON
Troubleshooting Guide
Problem
No DC output from terminals.
Output voltage is not correct for the
connected equipment.
Trouble output relay is de-energized.
(Relay terminals are labeled shown
in the Normal, energized, "no trouble"
condition. Relays are energized when
no trouble is detected.
For Technical Support:
1-800-265-6630 or 519-621-7651 www.dormakaba.us
ISPS10-4
© 2019 dormakaba Canada Inc.
www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • Email: sales_RCI@dormakaba.com
Solution
- Check AC and DC LED's on power
supply board. Both should be on for
proper operation AC ON –GREEN,
DC ON - GREEN.
- If LED's are not on, check AC power.
- Disconnect AC power, battery(s) and all
connected equipment IMMEDIATELY.
- Change voltage selection jumper to
desired voltage.
- Reconnect equipment & reapply AC
power.
- Check battery voltage.
I NS TAL L AT I O N
RCI 10-4

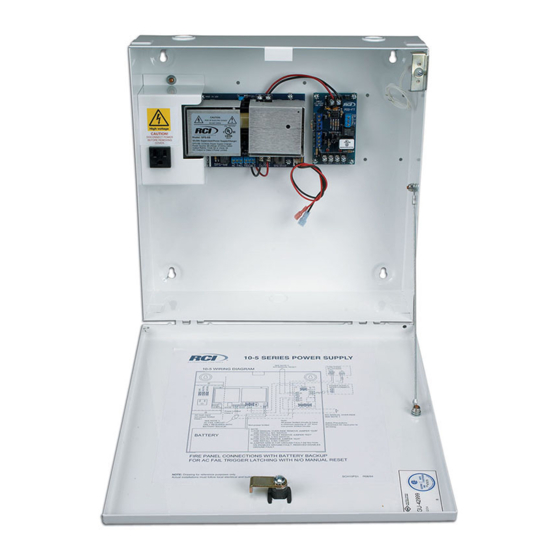

Power Supply Board c/w Charging
Installation and Specifications Manual
PCN17035
R08-19GR
RCI 10-4
Class 2 Power Limited
Advertisement
Summary of Contents for Dormakaba RCI 10-4
- Page 1 Normal, energized, “no trouble” condition. Relays are energized when no trouble is detected. Installation and Specifications Manual For Technical Support: 1-800-265-6630 or 519-621-7651 www.dormakaba.us PCN17035 ISPS10-4 © 2019 dormakaba Canada Inc. R08-19GR www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • Email: sales_RCI@dormakaba.com...
- Page 2 Base Features Lead acid batteries are typically used for stand by power in security applications, as they float charge well and have no usage memory. When float charged, they typically last 4-5 years. A precision power supply/charger will provide the proper voltage for any given •...
