TECHNICAL DOCUMENT
INSTALLATION GUIDE: TOUCH SCREEN KIT
Product Identification: 17" Touch Screen Kit (PN 35575)
Purpose: This document details the installation and calibration of the Touch Screen Kit.
.
17" Touch Screen Kit
Qty
1
Monitor
1
VESA Mount Plate, 75 mm
1
USB Extension Cable, 10 ft
1
SVGA Video Extension Cable, 15 ft
2
M4 x 10 mm Machine Screw
2
M4 x 10 mm Thread-forming Screw
3
Cable Tie Holder
5
Cable Tie, 4 in.
NOTE: If any of these items are missing, contact
Tormach Customer Service at (608) 849-8381 for a
replacement.
NOTE: This document assumes that the machine arm has already been installed.
Installation
1. Using a Phillips screwdriver, remove four
screws on existing monitor mounting plate
(see Figure 1); set screws aside and discard
monitor mounting plate.
2. Using four screws set aside in Step 1, mount
VESA Mount Plate to machine arm.
©Tormach® 2019. All rights reserved.
Specifications subject to change without notice.
TD10383_Touch_Screen_Kit_0919A
PN
37761
35496
30279
35705
30537
34249
33193
31719

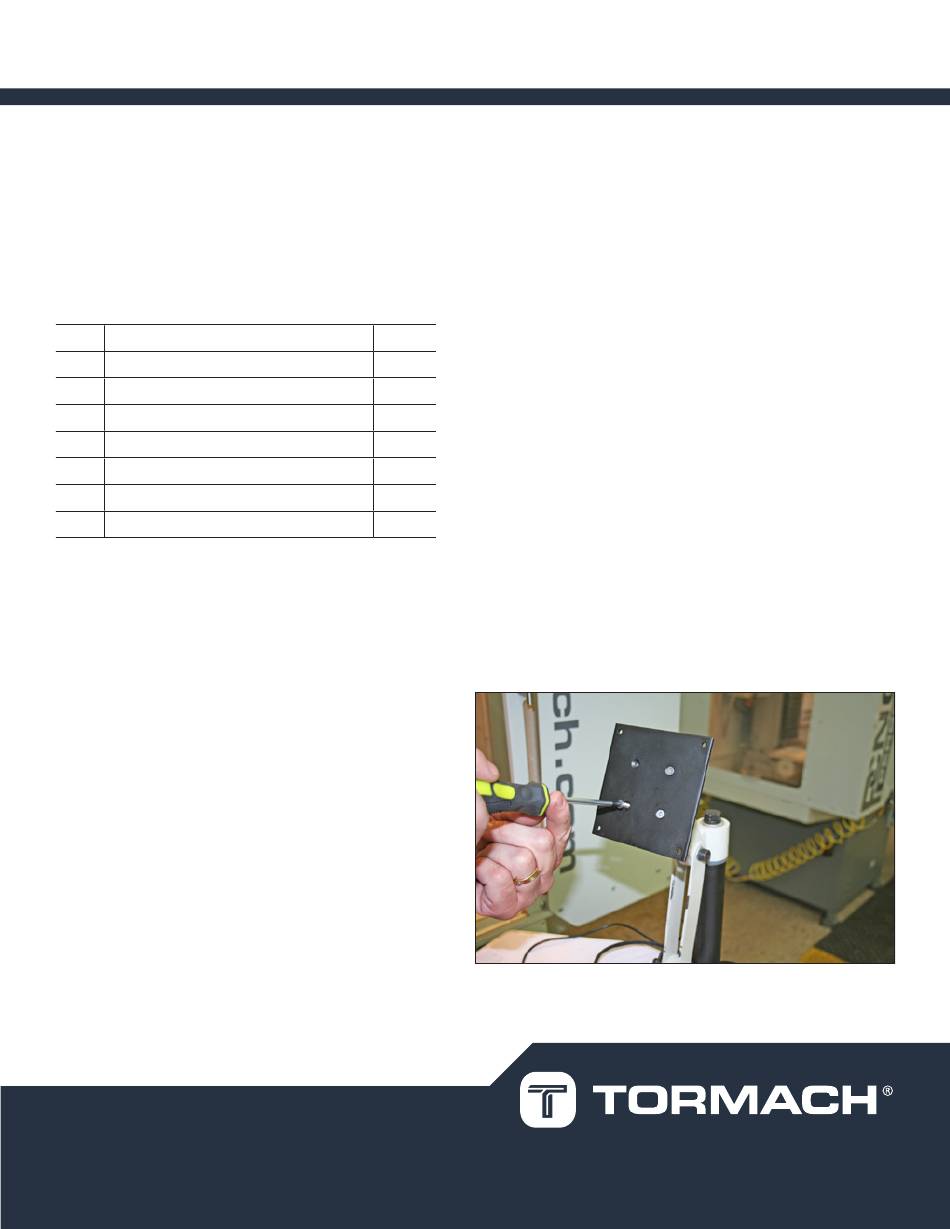

Figure 1
Page 1
TORMACH.COM
Advertisement
Table of Contents
Related Manuals for Tormach 35575
Summary of Contents for Tormach 35575
- Page 1 TECHNICAL DOCUMENT INSTALLATION GUIDE: TOUCH SCREEN KIT Product Identification: 17” Touch Screen Kit (PN 35575) Purpose: This document details the installation and calibration of the Touch Screen Kit. 17” Touch Screen Kit Monitor 37761 VESA Mount Plate, 75 mm 35496...
- Page 2 NOTE: USB connection can be made via any of the USB connectors the controller. 10. Route and connect monitor’s power cable to the machine. Figure 3 ©Tormach® 2019. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10383_Touch_Screen_Kit_0919A tormach.com...
- Page 3 2. Type ADMIN TOUCHSCREEN in the MDI field and click Enter on keyboard (see Figure 5). 3. Following on-screen instructions, touch each point with one finger to calibrate monitor (see Figure 6). Figure 5 Figure 6 ©Tormach® 2019. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10383_Touch_Screen_Kit_0919A tormach.com...
