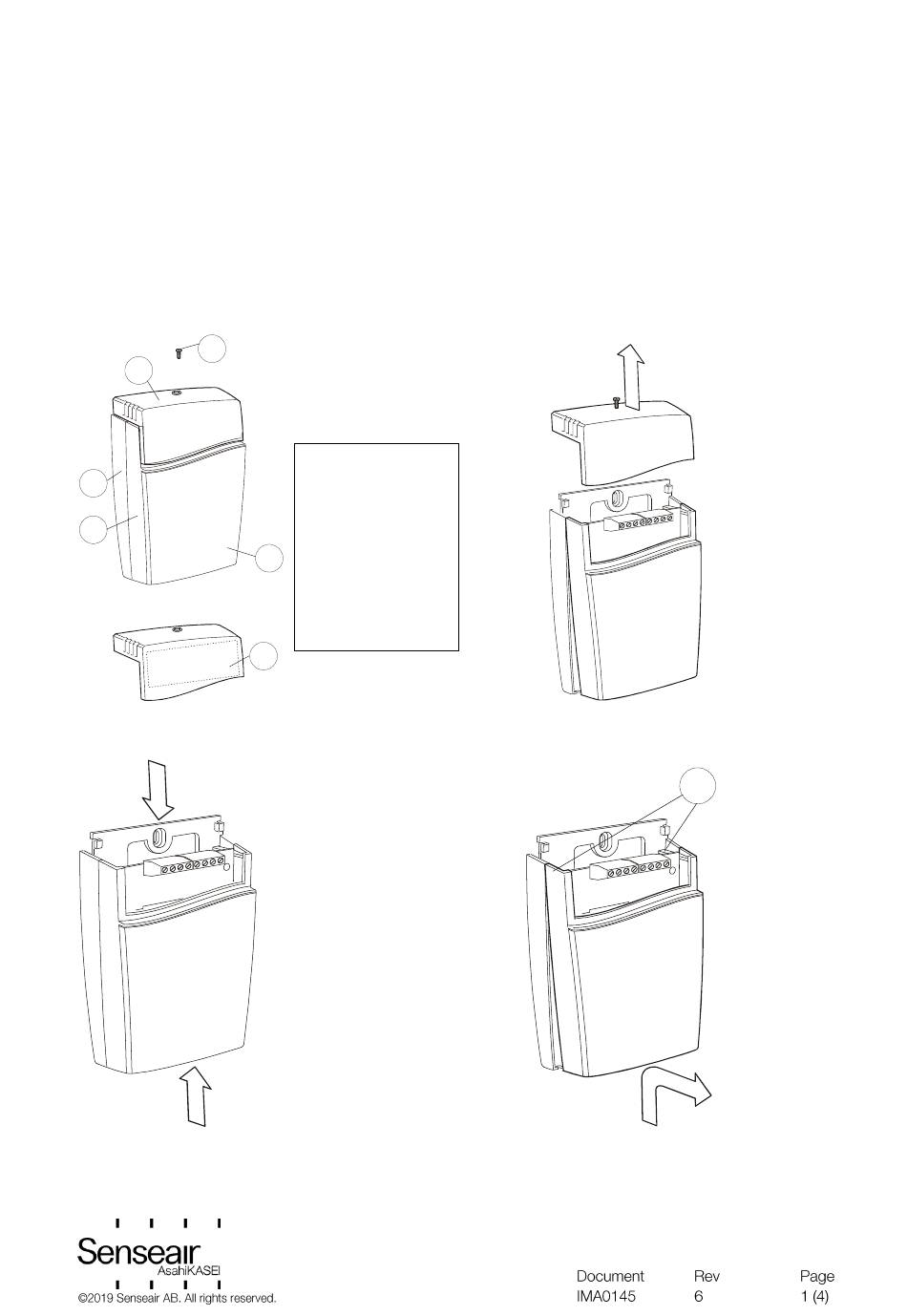

Dismounting of the sensor
5
1
4
3
Push the front part with the lid upwards
while keeping the wall plate steady
Installation Manual
aSENSE VAV
1 Top part
2 Lid
3 Front part
4 Wall plate
5 Screw
2
6 Label with
settings inside the
top part
6
Pull the top part upwards
Fold the front part with the lid forwards
and loose it from the hooks (#1)
1
Advertisement
Summary of Contents for AsahiKASEI Sensair aSENSE VAV
- Page 1 Installation Manual aSENSE VAV Dismounting of the sensor 1 Top part 2 Lid 3 Front part 4 Wall plate 5 Screw 6 Label with settings inside the top part Pull the top part upwards Push the front part with the lid upwards Fold the front part with the lid forwards while keeping the wall plate steady and loose it from the hooks (#1)
- Page 2 Mounting of the sensor The wall plate is screwed onto the wall (A) Put the top tabs of the front part into the top holes of the wall plate. (B) Press the lower edge of the case onto the wall plate to latch Screw head diameter: max 7.5 mm Screw head height: max 2.5 mm The top part is pushed under the...
- Page 3 Electrical connections The power supply has to be connected to is considered as system ground. The same ground reference has to be used for the aSENSE VAV unit and for any connected device! Unless different transformers are used, special precautions need to be taken. NOTE! The signal ground is not galvanically separated from the aSENSE VAV power supply! NOTE!
- Page 4 Dimensions and holes 31(1,22) 83(3,26) 120(4,72) Dimensions of sensor in mm and (inches) 30(1,18) 30(1,18) 4,2(0,16) 7,8(0,31) Mounting of the sensor onto the wall Screw head diameter: max 7.5 mm Screw head height: max 2.5 mm Dimensions of mounting plate in mm and (inches) ®...
