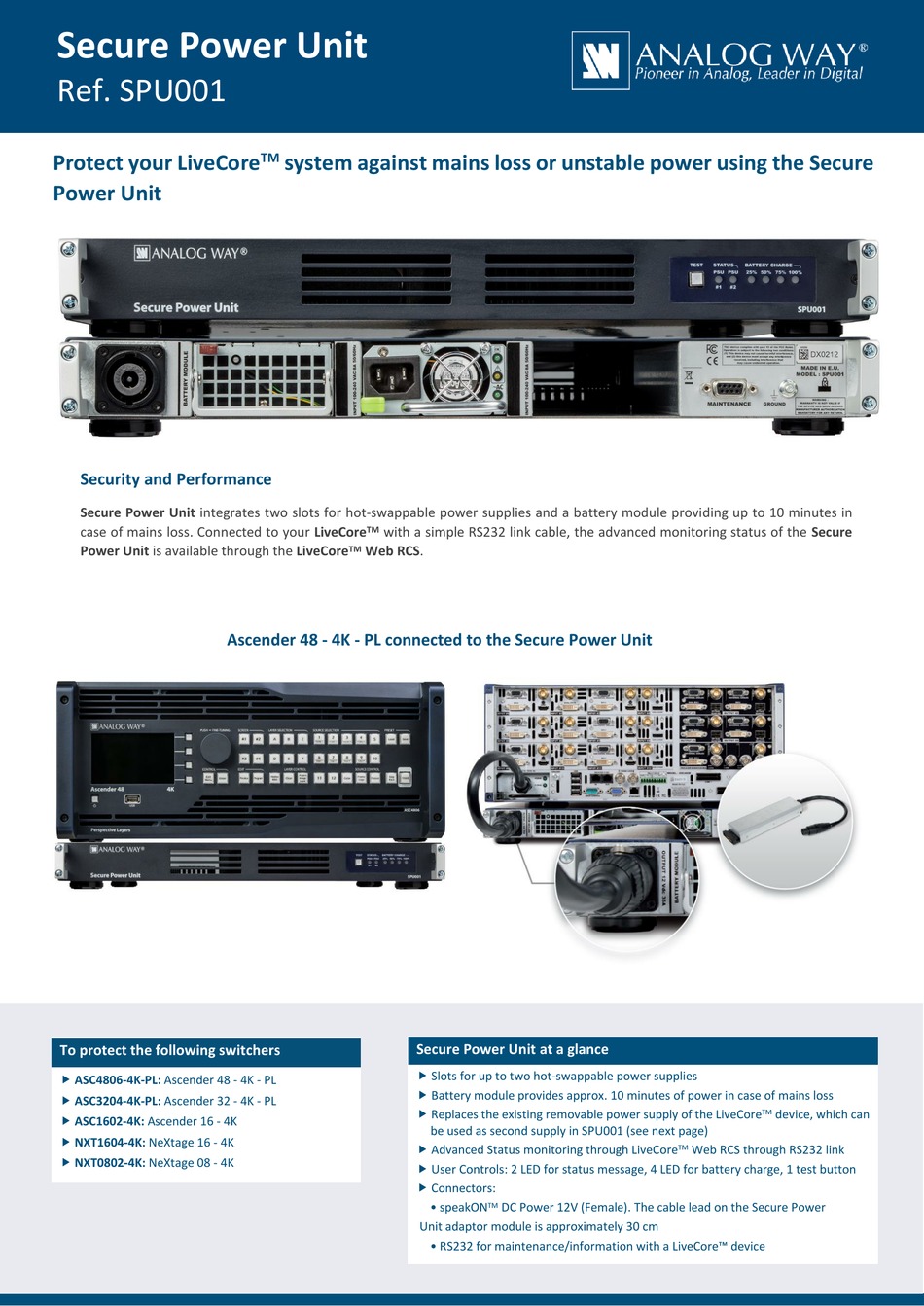

Analog way Secure Power Unit Quick Start Manual

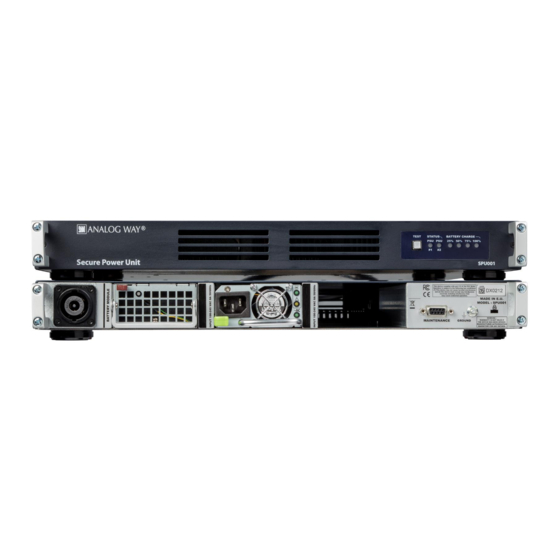

Secure Power Unit
Ref. SPU001
Protect your LiveCore
Power Unit
Security and Performance
Secure Power Unit integrates two slots for hot-swappable power supplies and a battery module providing up to 10 minutes in
case of mains loss. Connected to your LiveCore
Power Unit is available through the LiveCore
Ascender 48 - 4K - PL connected to the Secure Power Unit
To protect the following switchers
 ASC4806-4K-PL: Ascender 48 - 4K - PL
 ASC3204-4K-PL: Ascender 32 - 4K - PL
 ASC1602-4K: Ascender 16 - 4K
 NXT1604-4K: NeXtage 16 - 4K
 NXT0802-4K: NeXtage 08 - 4K


TM
system against mains loss or unstable power using the Secure
TM with a simple RS232 link cable, the advanced monitoring status of the Secure
TM Web RCS.
Secure Power Unit at a glance
 Slots for up to two hot-swappable power supplies
 Battery module provides approx. 10 minutes of power in case of mains loss
 Replaces the existing removable power supply of the LiveCore
be used as second supply in SPU001 (see next page)
 Advanced Status monitoring through LiveCore
 User Controls: 2 LED for status message, 4 LED for battery charge, 1 test button
 Connectors:
• speakON
Unit adaptor module is approximately 30 cm
• RS232 for maintenance/information with a LiveCore™ device

TM DC Power 12V (Female). The cable lead on the Secure Power
TM device, which can
TM Web RCS through RS232 link
