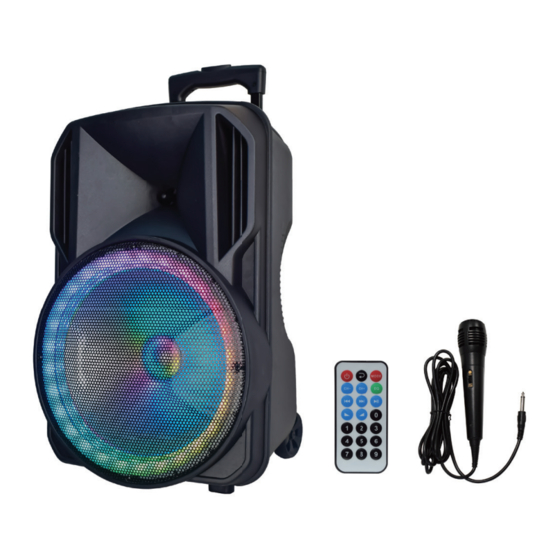

Axess PABT 6030 Manual

PABT 6030
12" PORTABLE BLUETOOTH
PARTY SPEAKER
For correctly operating, please read this manual carefully before using.
Any content revise of the manual won't declare again, and we are not
responsible for consequence cause by fault or oversight of this manual.
PABT6030 SPECIFICATIONS
» 12" Bluetooth Speaker
» 1.5" Tweeter
» USB Flash Drive input
» Aux 3.5mm line-in Input
» FM radio
» TF card slot
» Bass/Treble/Echo Adjustments
» Digital LED display
» Microphone Input
» Small Remote Control
» Wired Microphone included
» 9V adaptor charger
» 7.4V/3600mAh battery
» 6000 pmpo watt power
» With extendable handle bar
REMOTE CONTROL FUNCTION
1. Power Switch: press this switch turn the
speaker On and Off
2. Mode Selector: pess this button to switch between
USB, TF, FM and Bluetooth inputs
3. Repeat Track: tap this button to single track repeat
4. EQ Mode Switching
5. Previous FM Station (CH-): when using the speaker
in FM mode, press this button to go to the previous
saved FM station
6. Next FM Station (CH+): when using the speaker in
FM mode press this button to go to the next stored
FM station
7. Previous Track: when using the speaker in USB/TF
card & bluetooth mode, press this button to go to
the previous track
8. Next Track: when using the speaker in USB/TF card
& bluetooth mode, press this button to go to the
next track
9. Pause & FM scan: Press this button to pause the
signal from the USB flash drive, TF Card, or
bluetooth inputs. When using the speaker in FM
Mode, press this button to auto scan for all
available stations.
10. Volume -
11. Volume +
12. Number pad 0-9
3
1
2
4
5
6
7
9
8
10
11
