Manual
Radio Modem
Supercom 636
Issue:
Document:
Manufacturer:
Technical modifications subject to change without notice
Rev. 010312
Manual Supercom 636 R+W rev. 010312
Sontex SA
2605 Sonceboz, Switzerland
Phone: +41 32 488 30 00
Fax: +41 32 488 30 01
Email:
@sontex.ch
Internet:
.sontex.ch

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Supercom 636 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sontex Supercom 636

  • Page 1 Manual Radio Modem Supercom 636 Issue: Rev. 010312 Document: Manual Supercom 636 R+W rev. 010312 Manufacturer: Sontex SA 2605 Sonceboz, Switzerland Phone: +41 32 488 30 00 Fax: +41 32 488 30 01 Email: @sontex.ch Internet: .sontex.ch Technical modifications subject to change without notice...
  • Page 2 Error in status byte description (page 11) 211010 21.10.10 Add 656 & 541. Adapted writing factor KC for 556 200411 20.04.11 Add information for 449 010312 01.03.12 Add entry for 539 (write) + change finalize parametrize Manual Supercom 636 R+W rev. 010312...

  • Page 3: Table Of Contents

    Writing standard products ..................26 10.3 Writing the heat cost allocator 502 / 552 ..............27 10.4 Writing the heat cost allocator Sontex 556 .............. 28 10.5 Writing the radio pulse adapter 540 ................ 32 Manual Supercom 636 R+W rev. 010312...

  • Page 4: General

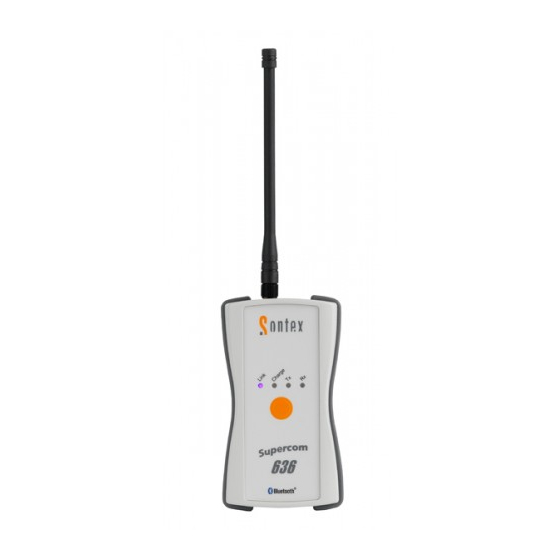

    1.2 Field of application of modem The external peripheral radio modem Supercom 636 is suitable for a connection to PC or Pocket PC with USB or Bluetooth. It allows the read out of meters per radio. The modem works at a fre- quency of 433.82 MHz and supports the protocols MFD and Radian 0.

  • Page 5: Scope Of Delivery

    2. Scope of delivery Content set radio modem Supercom 636: Radio modem Supercom 636 with belt clip  3 accumulators 1.2V type AAA (1000mAh)  Radio antenna  User manual  CD with  User manual (pdf) USB driver PDA SW Sontex916...

  • Page 6: How To Use

    (COMx). 3.1.2 Switch ON/OFF the modem With the orange button the radio modem Supercom 636 can be switched ON and OFF. After 10 minutes of inactivity the radio modem Supercom 636 shuts down by itself.

  • Page 7: Led Display

    By turning ON the Supercom 636, the following LEDs sequence is running: 2 seconds The blue LED stays ON If another sequence is running contact your local Sontex agent or the Sontex technical support. (See last page of this document for contacts). Manual Supercom 636 R+W rev. 010312...

  • Page 8: Charging Accumulators

    The radio modem Supercom 636 can be charged by USB on a host PC hub (500mA) or with the charger (recommended) delivered with the set. The red LED indicates the charging mode (see 3.1.4.)

  • Page 9: Communication

    “SND_UD” containing the field “Start read radio process”. Sending a request to the radio modem Supercom 636 during the radio process will return a “busy” frame. (3. / page 12). To read the result send a request “REQ_UD2” to the device address “254”.

  • Page 10: Detailed Reading Steps

    0C,FD 0F,xx xx xx xx Hardware version 02,FD 0D,xx xx C, 16 bits Fabrication Number 0C,78,xx xx xx xx A, 32 bits More records in next Start of manufacturer specific data telegram Check Sum Stop Manual Supercom 636 R+W rev. 010312...
  • Page 11 Reserved Accumulators low Power low bit2 † Permanent error bit3 † Temporary error bit4 † Manufacturer specific bit5 Invalid time clock Manufacturer specific bit6 Last radio process error Manufacturer specific bit7 † Not used. Manual Supercom 636 R+W rev. 010312...
  • Page 12 See parameter flags “pp” in the frame Rsp1 of the modem. Also check bit7 of status byte “st” in the frame Rsp1 of the modem. Manual Supercom 636 R+W rev. 010312...

  • Page 13: Utilities

    5. Utilities 5.1 Firmware Update The firmware of the modem Supercom 636 can be updated by the USB interface from a computer with the software Tools636. Manual Supercom 636 R+W rev. 010312...

  • Page 14: Annex A

    100ms Req_UD2 (Adr. 251) Busy frame (because modem is in radio communication) min 100ms Req_UD2 (Adr. 251) RSP_UD SND_NKE (Adr. :254) Req_UD2 (Adr. 254) RSP_UD Manual Supercom 636 R+W rev. 010312...

  • Page 15: Annex B

    This value is used to access the device by radio. It is never modified by the 636 itself. The date 1.1.2000 means ""not yet successful read"", coded in M-Bus G type: 0101h Multibytes values are transmitted with LSB first. Options bit7 Adjust device clock: 0=no, 1=yes Manual Supercom 636 R+W rev. 010312...

  • Page 16: Annex C

    B, 32 bits dimensionless 84 08,6E,xx xx xx xx Units stored at month - 16 B, 32 bits dimensionless C4 08,6E,xx xx xx xx More records in next telegram Start of manufacturer specific data Check Sum Stop Manual Supercom 636 R+W rev. 010312...
  • Page 17 B, 32 bits 84 48,6E,xx xx xx xx Units stored at month - 16 B, 32 bits C4 48,6E,xx xx xx xx More records in next telegram Start of manufacturer specific data Check Sum Stop Manual Supercom 636 R+W rev. 010312...
  • Page 18 Units stored at month - 15 B, 32 bits C4 88 40,6E,xx xx xx xx Units stored at month - 16 B, 32 bits More records in next telegram Start of manufacturer specific data Check Sum Stop Manual Supercom 636 R+W rev. 010312...
  • Page 19 Units stored at month - 15 B, 32 bits C4 C8 40,6E,xx xx xx xx Units stored at month - 16 B, 32 bits More records in next telegram Start of manufacturer specific data Check Sum Stop Manual Supercom 636 R+W rev. 010312...
  • Page 20 «m3» cubic meter «Wh» Watt hour «kWh» kilo Watt hour «MWh» Mega Watt hour « » unknown unit Information ASCII characters (24x) « » all what you like More records in next telegram : Manual Supercom 636 R+W rev. 010312...

  • Page 21: Encoded Frames Calculator Supercal 531/449 (Rsp106 And Rsp107)

    Energy stored at month - 13 B, 32 bits 84 07,en en,xx xx xx xx Energy stored at month - 14 B, 32 bits More records in next telegram Start of manufacturer specific data Check Sum Stop Manual Supercom 636 R+W rev. 010312...
  • Page 22 Power maximum date/time stored at - 6 F, 32 bits C4 85 03,6D,xx xx xx xx Power maximum date/time stored at - 7 F, 32 bits More records in next telegram Start of manufacturer specific data Check Sum Stop Manual Supercom 636 R+W rev. 010312...
  • Page 23 B, 32 bits 84 47,co co,xx xx xx xx Complementary counter 1 totalizer stored at month - 14 B, 32 bits More records in next telegram Start of manufacturer specific data Check Sum Stop Manual Supercom 636 R+W rev. 010312...
  • Page 24 Complementary counter 2 totalizer stored at month - 14 B, 32 bits More records in next telegram Start of manufacturer specific data Check Sum Stop Note : See Supercal 531/449 M-Bus frames documentation for details Manual Supercom 636 R+W rev. 010312...

  • Page 25: Annex D

    Send_NKE (Adr. 254) Send_UD (Adr. 254) with data Send_UD (Adr. 251 with : start write radio process) min 100ms Req_UD2 (Adr. 251) min 100ms Busy frame (because modem is in radio communication) Req_UD2 (Adr. 251) RSP_UD Manual Supercom 636 R+W rev. 010312...

  • Page 26: Annex E

    Control Information Stuctured write telegram See product documentation Check Sum Stop To write a standard product (e.g.580, 581, 590, 541, 539) send a standard command “SND_UD” as described in the respective M-Bus frames documentation. Manual Supercom 636 R+W rev. 010312...

  • Page 27: Writing The Heat Cost Allocator 502 / 552

    0 0 1 1 1 =3Ch august july Byte x4 0 0 0 0 0 =00h october september Byte x5 0 0 0 0 0 =00h december november Byte x6 0 0 0 0 0 =00h Manual Supercom 636 R+W rev. 010312...

  • Page 28: Writing The Heat Cost Allocator Sontex 556

    10.4 Writing the heat cost allocator Sontex 556 FRAME PARAMETRIZE Field Frame bytes in hex (Note 1) Coding Comment Start, Length 68,Le Le,68 Control Send user data to slave 73|53 Address Control Stuctured write telegram Information Change param in LVAR §...
  • Page 29 To disable this function, put the date 2000-01-01 into the 2 dates. 0C 20 02 00 00 00 00 Reset max. heatsink temp. If KC or KQ = 0 then the device will count in "unit scale" mode. Otherwise will count in "product scale" mode. Manual Supercom 636 R+W rev. 010312...
  • Page 30 If date = 01h 01h --> never wak eup (only with button) If automatic rolling LCD is enabled, the 8 positions of menu can be displayed a short time 1s or a long time (2s to 7s). Manual Supercom 636 R+W rev. 010312...
  • Page 31 00 21 B4 5E 00 0F 58 FA 02 3A C1 7F FB 72 00 FA 04 54 70 8B 99 CS 16 WS (byte) Finalize write in 556 and put device in sleep mode Finalize write in 556 Manual Supercom 636 R+W rev. 010312...

  • Page 32: Writing The Radio Pulse Adapter 540

    05 04 70 41 05 04 80 41 05 04 90 41 05 04 A0 41 05 04 B0 41 05 04 C0 41 05 04 D0 41 05 04 E0 41 05 04 F0 41 Manual Supercom 636 R+W rev. 010312...
  • Page 33 05 04 78 41 05 04 88 41 05 04 98 41 05 04 A8 41 05 04 B8 41 05 04 C8 41 05 04 D8 41 05 04 E8 41 05 04 F8 41 Manual Supercom 636 R+W rev. 010312...
  • Page 34 05 04 7C 41 05 04 8C 41 05 04 9C 41 05 04 AC 41 05 04 BC 41 05 04 CC 41 05 04 DC 41 05 04 EC 41 05 04 FC 41 Manual Supercom 636 R+W rev. 010312...
  • Page 35 Manual Supercom 636 R+W rev. 010312...
  • Page 36 Conformity according to R&TTE 1999/5/CE The detailed certificate of conformity you can find on our internet homepage: .sontex.ch Technical Support For technical support contact your local Sontex agent or Sontex SA directly. Hotline Sontex: @sontex.ch +41 32 488 30 04 ...
