- Page 1 3D Probe-Positioners Instruction Manual...

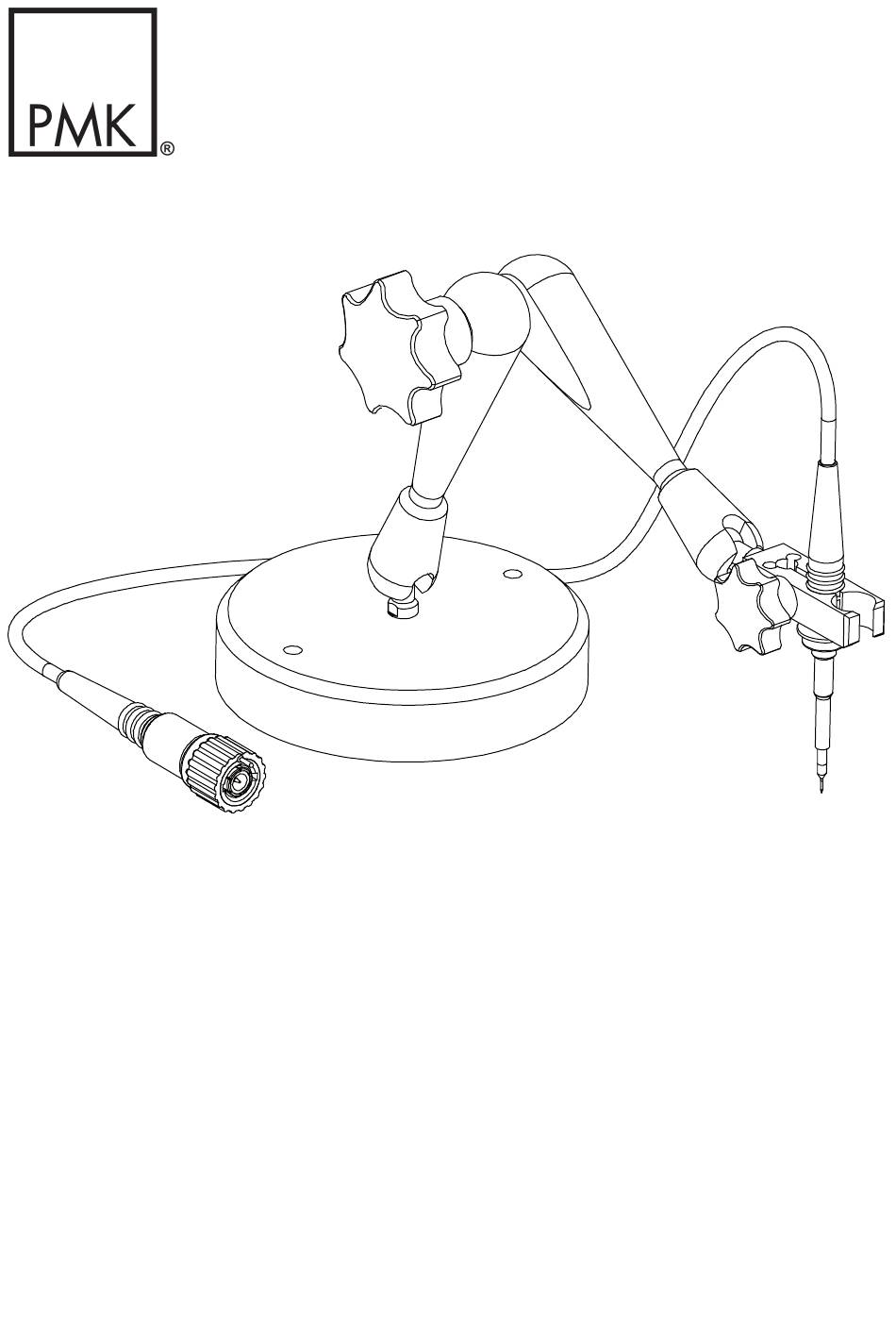

- Page 2 Assembly 3D Probe-Positioners The 3D Probe Positioner is delivered in three single components: Base [A], positioner [B] and probe holder [C]. Screw the positioner [B] to the base [A] and tighten it with a combination wrench (width across flats 7 mm). The base is available in four different variants: Steel base, vacuum base, table clamp or magnet foot.
- Page 3 Hold the 3D Probe Positioner and loosen the central tensioning knob [D] until the 3D Probe Positioner can be moved. Bring the 3D Probe Positioner into the desired position and fix the device by turning the central tensioning knob [D] contrary. With the spring tip of PMK probes you can set precisely the contact to the measuring point.
- Page 4 (including damages for loss of profits, loss of business, loss of use or data, interruption of business and the like), even if PMK GmbH has been advised of the possibility of such damages arising from any defect or error in this manual or product.
