Tools and Parts

Gather the required tools and parts before starting installation. Read
and follow the instructions provided with any tools listed here.
Parts needed for washer (not provided):
Inlet hoses
To order:
Call the dealer from whom you purchased your washer/dryer.
Call the toll-free number listed on the cover of the Washer/
Dryer User Instructions.
Visit the website listed on the cover of the Washer/Dryer
User Instructions.
NOTE: Replace inlet hoses after 5 years of use to reduce the risk
of hose failure. Record hose installation or replacement dates for
future reference.
Tools needed:
#2 Phillips and flat-blade
screwdriver
Adjustable wrench that
opens to 1" (25 mm) or
9
" open-end wrench
⁄
16
(for adjusting dryer feet)
Wire stripper (direct wire
installations)
¼" nut driver or socket
wrench (recommended)
Tin snips (for new vent
installations)

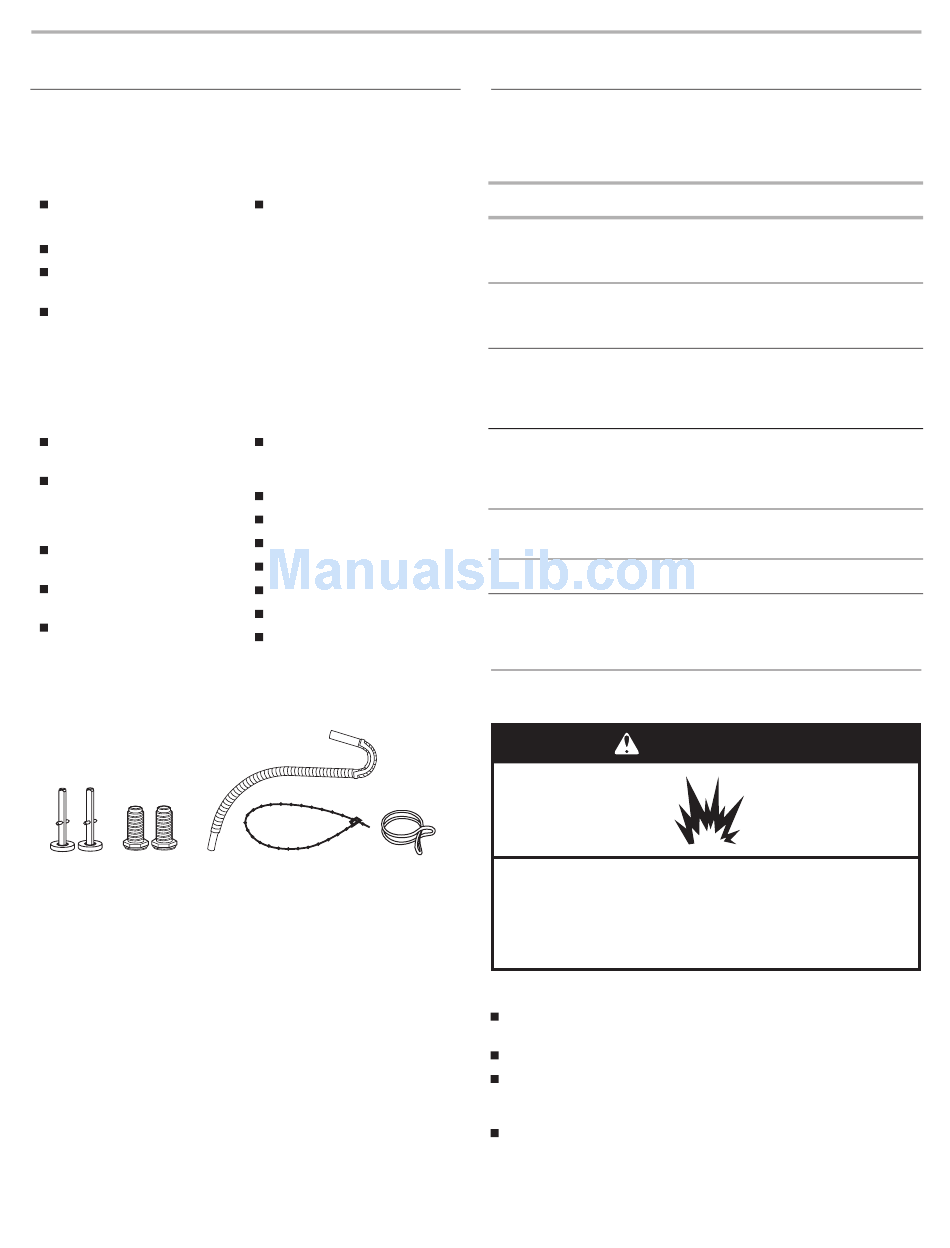

Parts supplied:
Remove parts package from the washer basket. Check that all
parts were included.
A
B
C
A. Rear leveling legs (2)
B. Front leveling legs (2)
C. Drain hose
Parts needed:
Check local codes. Check existing electrical supply and venting,
and see "Electrical Requirements" and "Venting Requirements"
before purchasing parts.
Mobile home installations require metal exhaust system hardware
available for purchase from the dealer from whom you purchased
your washer/dryer. For further information, please reference the
"Assistance or Service" section of the Washer/Dryer User
Instructions.
2

INSTALLATION INSTRUCTIONS

Flat washers
Caulking gun and
compound (for installing
new exhaust vent)
Level
Knife
Vent clamps
Pliers
Scissors
Wood block (for leveling)
Ruler or measuring tape
D
E
D. Plastic strap
E. Silver double-wire hose clamp

Alternate Parts

Your installation may require additional parts. For information on
ordering, please refer to the toll free phone numbers on the front
page of the Washer/Dryer User Instructions.
If You Have
You Will Need to Buy
Laundry tub or
Sump pump system (if not already
standpipe taller than
available)
96" (2.4 m)
1" (25 mm) diameter
2" (51 mm) diameter to 1" (25 mm)
standpipe
diameter standpipe adapter, Part
Number 3363920
Overhead sewer
Standard 20 gal. (76 L) 34" (864 mm)
tall drain tub or utility sink and sump
pump (available from local plumbing
suppliers)
Floor drain
Siphon break, Part Number 285320,
additional drain hose, Part Number
285702 and connector kit,
Part Number 285442
Drain hose too short
Drain hose, Part Number 285664 and
connector kit, Part Number 285442
Lint clogged drain
Drain protector, Part Number 367031
Water faucets
2 longer water fill hoses:
beyond reach of fill
6 ft (1.8 m) Part Number 76314,
hoses
10 ft (3.0 m) Part Number 350008

Location Requirements

WARNING
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Failure to do so can result in death, explosion, or fire.
You will need
A location that allows for proper exhaust installation. See
"Venting Requirements."
A separate 30-amp circuit.
If you are using a power supply cord, a grounded electrical
outlet located within 2 ft (610 mm) of either side of the washer/
dryer. See "Electrical Requirements."
A sturdy floor to support the washer/dryer weight (washer/
dryer, water and load) of 500 lbs (226.8 kg).
