- Page 1 WAREMA climatronic® 3.x Operation Valid from 1st November 2016 2017719_b•en...
-
Page 2: Table Of Contents
5.3 Time switch ......18 5.4 Leave......... 20 5.5 Absent ........21 Scenes ..........23 Measuring values ......25 System ..........28 Problems and causes ....30 10 Cleaning ..........31 Control Systems Helpline +49 9391 20-93 17 (or service@warema.de) -

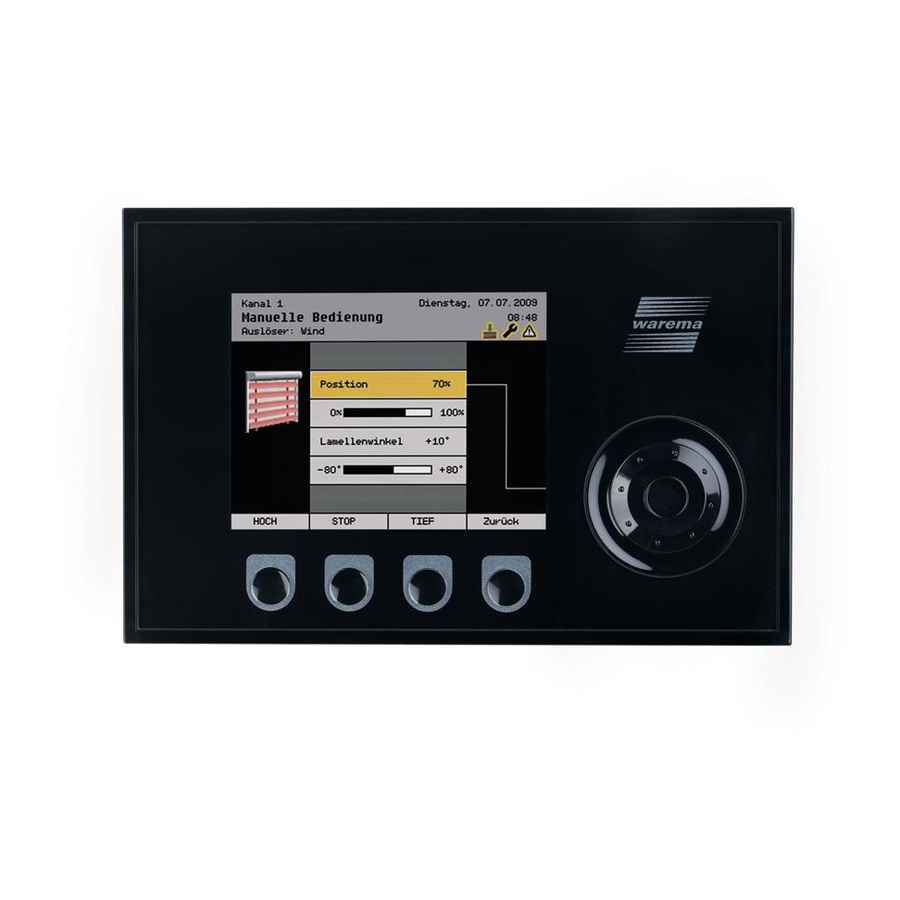

Page 3: Operating Elements
4 SD card slot For saving the settings of your WAREMA climatronic® or for loading saved settings or settings that were changed through a PC. 5 USB interface For connecting to a PC. This allows the WAREMA climatronic®... -
Page 4: Start Menu
Start menu © · © ³ © » © ¿ © © ´ ² © ¶ A Menu name B Date and time The symbol appears when the DCF77 time signal has been received. C Status display The symbols are only displayed when a status is active. - Page 5 E Indicator of whether the control functions are active F Indicator of whether Absent is activated G Indicator of the button functions in the current menu Button Function You can select channels, Main menu groups and scenes in the main menu if you want to oper- ate a product manually.
-
Page 6: Main Menu
Rotating the function wheel moves the cursor line highlighted in col- our. Press the function wheel to select. A Channel The WAREMA climatronic® is equipped with 64 channels. Each channel can control either a single product (e.g. an awning) or several products of the same type (e.g. - Page 7 B Group Channels with identical products can also be combined into a group. For example, if you have created a channel for the roller shutters of each room, then all roller shutters of the building can be combined into a group and operated together.
-
Page 8: Operating
Operating If you select a channel in the main menu, the [Manual operation] menu opens. Here you can operate the products in the channel with the function buttons or by specifying a value. Slat products Press the UP STOP DOWN function buttons in order to operate. - Page 9 A longer push of the button (longer than approx. 0.6 seconds) triggers a movement. A corresponding Move symbol is displayed below the product figure. Select Position or Slat angle with the function wheel and press. The line below becomes orange. Turn function wheel until the dis- played value changes as desired.
- Page 10 Slat angle setting option is not displayed here. Switchable products Press the ON OFF function buttons in order to operate. Switchable products are e.g. lights, fans, heaters and air conditioners. Operating via a WAREMA climatronic® WebControl is described in the WebControl manual.
-
Page 11: Settings
Sun control The sun control is one of the main comfort functions of the WAREMA climatronic® because the most important control mode for sun shading products is control depending on brightness. When the PHOTO measuring value exceeds the SUN limit value, the sun shading products are lowered. - Page 12 Press the [Settings] function button in the main menu and select the following menu: [Comfort functions]→[“Channel name”] →[Sun control] The following view appears in the display: The following parameters can be changed: Button Function Activate or deactivate Sun control sun control ON/OFF specifies the brightness level above which the...
- Page 13 Button Function Delay time, to prevent the product from being Delay lowered immediately as soon as the brightness changes specifies the posi- tion to which a sun shading product is Position to be lowered when Limit value SUN is reached. Slat angle, which is Slat angle set after reaching the...
- Page 14 Button Function specifies the brightness level above which the Limit value sun shading product of CLOUD this channel should be raised Delay time, to prevent the product from being Delay raised immediately as CLOUD soon as the brightness changes specifies the posi- tion to which a sun shading product is Position...
-
Page 15: Dawn/Dusk Control
Dawn/dusk control The dawn/dusk control is a WAREMA climatronic® comfort function used to control the sun shading system or mainly visual privacy depending on dawn or dusk. The “Dawn/dusk” weather station measuring value is used to register the brightness. When the Dawn/dusk meas- uring value exceeds the set Limit value DAWN for 5 minutes, the sun shading... - Page 16 The following parameters can be changed: Button Function Dawn/dusk Activate or deactivate control dawn/dusk control ON/OFF specifies the brightness at which a sun shading Limit value product is to be moved in DAWN the morning specifies the position to which the sun shading Position product is to move at DAWN...
- Page 17 Button Function specifies the brightness at which a sun shading Limit value product is to be moved to DUSK the Position DUSK specifies the position to which the sun shading Position product is to move at DUSK dusk Slat angle, which is Slat angle set after reaching the DUSK...
-
Page 18: Time Switch
Uime switch The time switch makes it possible to raise or lower sun shading products or other products at a specific time for each channel. Four switching times are available for every day. Furthermore, the position and subsequent tilting of the slats of a slat product can be programmed with differ- ent slat angles. - Page 19 Enter the desired switch time and position/slat angle. In the example above the sun shading system is moved to 0% at 8:00 a.m. and back to 100% at 10:00 p.m. The com- fort functions are enabled, meaning that the sun shading system can be moved automatically with the control modes (e.g. sun control).
-
Page 20: Leave
Leave This menu allows you to adjust the position of the sun shading product and, if applicable, the slat angle for the selected channel during your leave. The move command is executed once at the beginning of your leave. Press the [Settings] function button in the main menu and then go to the menu [Comfort functions] →... -
Page 21: Absent
Activate leave time In the main menu, press the [Settings] function button and then go to the [Leave time] menu. Enter a date each for the beginning and end of the leave. The leave func- tion is only activated then. Absent This menu allows you to adjust the po- sition of the sun shading product and, if... - Page 22 Enter the desired position/slat angle. The function button [---] leaves the position/slat angle unchanged. Activate Absent Press the [Absent] function button in the start menu to activate the function. A checkmark appears in the Absent field and the symbol pears in the header. The product immediately moves to the set positions and angles.
-
Page 23: Scenes
Scenes Any states of the selected channels can be saved in a scene and retrieved again at any time. Different channels are allo- cated to a scene. Up to 16 scenes can be created. Press the [Settings] func- tion button in the main menu and then go to the menu [Manage channels, groups, scenes] →... - Page 24 Now the scene can be learned and called up again in the main menu: Move/switch the individual channels to the desired positions. In the main menu, select the [Scene 1] line (or the name of the scene you specified). Select the [Learn scene] menu item by pressing the function wheel;...
-
Page 25: Measuring Values
Measuring values The WAREMA climatronic® has an inter- nal memory for all measuring values with the associated histories, for triggers and faults. Start menu Measuring values All measured values The following information appears in the display ([---] means that the... - Page 26 The history associated with the meas- uring value is displayed. Pressing the function wheel activates the cursor (a reticle) in the normal mode. Below the history, the measuring val- ue, the associated time and the date are now displayed. The cursor moves back and forth by turning the function wheel (in steps of 30 minutes).
- Page 27 Uriggers All triggers of move and switch commands are saved and can be viewed in the following menu. Start menu Measuring values All triggers The last trigger is displayed for all the channels. Select a channel with the function wheel in order to display a list of all the triggers for this channel.
-
Page 28: System
System General parameters are defined in the system menu; the most important ones can be found in the following table. Start menu Main menu Settings System Button Function Adjust time. No settings are gener- Date / time ally required for using a weather station. - Page 29 Access to SD card in order to load or save Memory card projects. Display software ver- sion of the WAREMA Software climatronic® compo- versions nents. Switch the interface output USB/RS485 USB for PC with WAREMA interface climatronic® studio, RS485 for WAREMA climatronic® WebControl...
-
Page 30: Problems And Causes
SD card: The SD card was Briefly read or in the control panel remove the write error when the WAREMA SD card climatronic® was and reinsert switched on or a pow- er failure has occurred in the meantime. Uncon-... -
Page 31: 10 Cleaning
10 Cleaning Start menu Main menu Settings Clean control panel The function buttons are deactivated. Clean the device with a soft damp cloth. Steam or high pressure washers, abrasive sponges, abrasive agents and solvents such as alcohol or benzine must not be used! AAUIOO When cleaning work on the... - Page 32 WAREMA Renkhoff SE • Hans-Wilhelm-Renkhoff-Straße 2 97828 Marktheidenfeld • Germany www.warema.com • info@warema.com...
