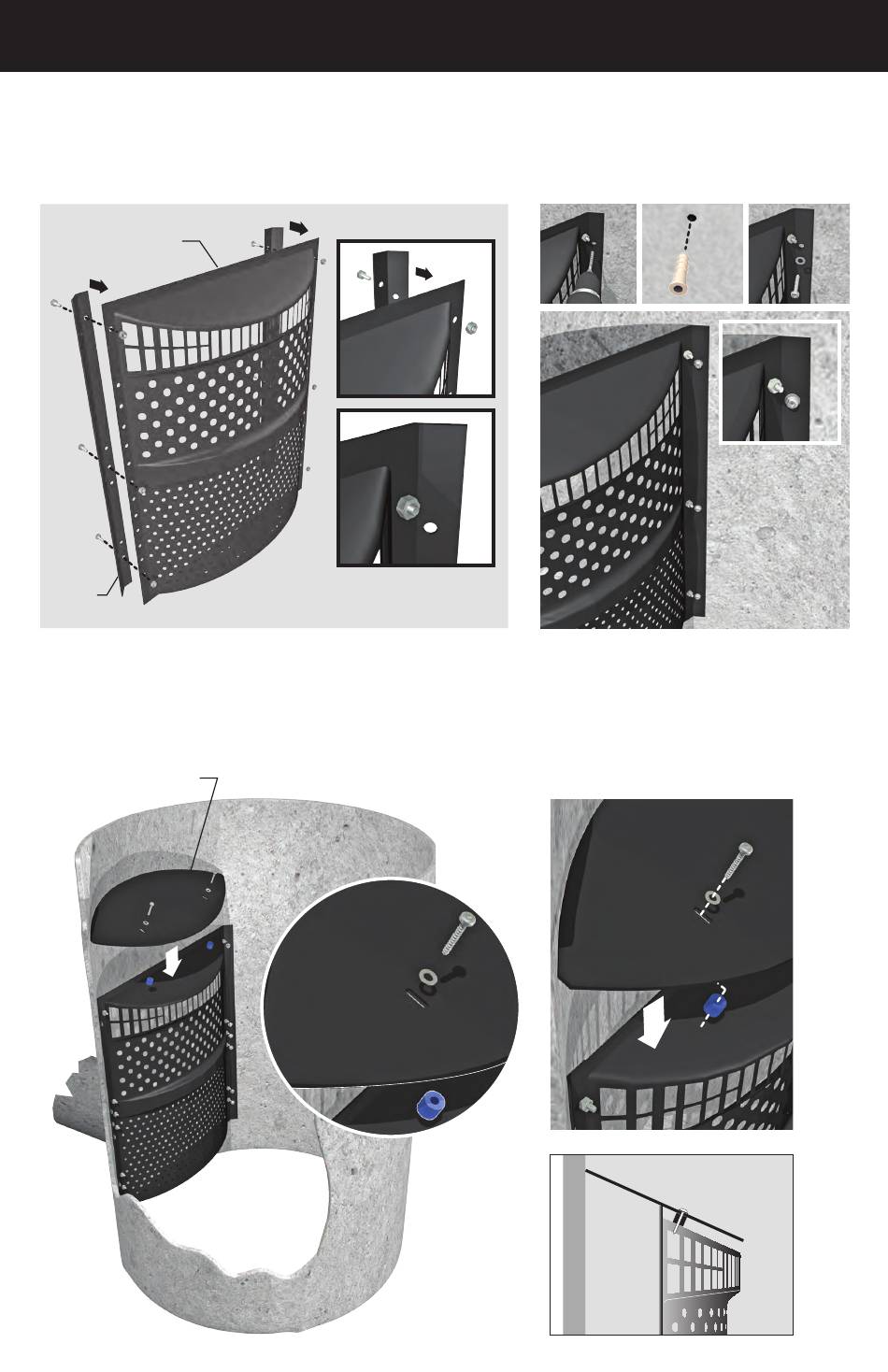

ATTACHING TRASH GUARD PLUS® TO ROUND BASIN WALL
ATTACH PIANO HINGE TO TRASH
1.
GUARD PLUS®
Secure piano hinges to rear of Trash Guard Plus® with 3 bolts and 3 nuts as
shown. .
Trash Guard Plus®
Piano
Hinge
3.
ATTACH CAP ROUND PANEL TO TRASH GUARD PLUS®
Place two spacers on top of Trash Guard Plus® top. Place Cap Round Cover
over trash guard as shown below. Adjust spacers to align with slots in Cap
Round Cover as needed. With washers attached to screws, slide screws
through slots in Cap Round Cover and through holes in spacer. Torque
screws to penetrate surface of Trash Guard Plus® top.
Cap Round Cover
HARDWARE ASSEMBLY DETAIL
Screw
Washer
Spacer
2.
ATTACH TRASH GUARD
PLUS® TO BASIN WALL
Drill 2 inch deep
Insert plastic
holes into Basin
anchors in
Wall.
pre-drilled holes
Adjust Cap Round Cover as needed to fit flush
with curved wall of Basin Wall.
When Cap Round Cover is flush against wall,
tighten screws to hold in place. Cap Round
Cover should be parallel to top of Trash Guard
Plus® and flush against Basin Wall as shown in
Figure A below.
FIGURE A
Secure to wall with
6 screws and
washers
