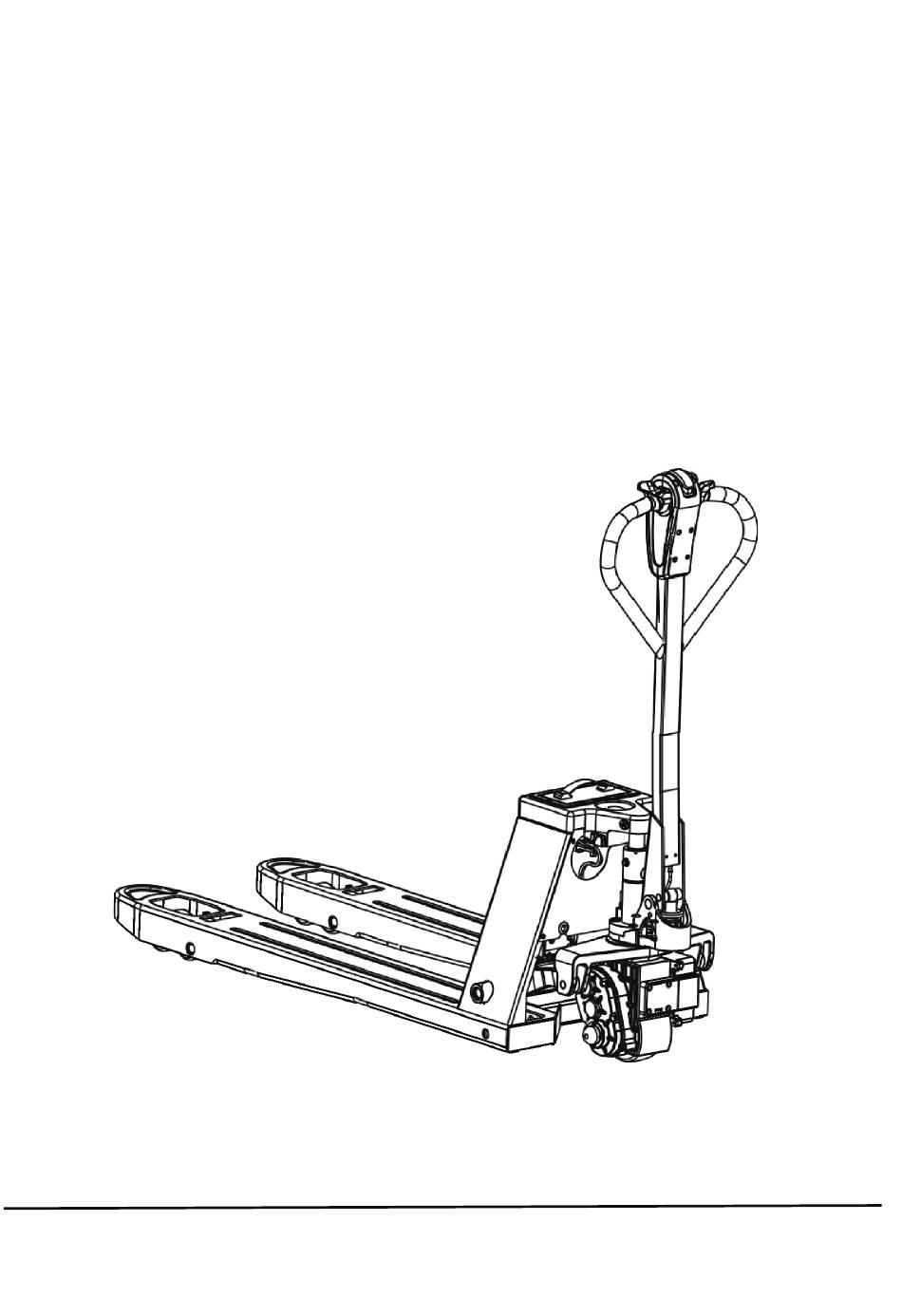

Operation Manual
EPT15H/EPT33H
Electric Pallet Truck
Warning: Read and follow all the instructions before operation
confirm all the security components are not damaged.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPT15H and is the answer not in the manual?

Questions and answers

Summary of Contents for STAXX EPT15H

  • Page 1 Operation Manual EPT15H/EPT33H Electric Pallet Truck Warning: Read and follow all the instructions before operation confirm all the security components are not damaged.
  • Page 2 Content 1. Foreword.......................1 2. Application ............................1 3. Parameters ............................1 4. Operation Guide ..........................2 4.1 Operation Pre-Check ......................2 4.2 Operation .............................3 5. Battery & Charger Use and Maintenance ................3 5.1 Charger ............................3 5.2 Battery Charging ........................3 5.3 Button function description ..................3 5.4 Drive Wheel Disassembly Introductions ..............
  • Page 3 2. Application Full electric pallet truck EPT15H, with powered traveling & lifting / lowering, to move pallets or goods for short-distance, is widely applied in workshops, warehouse, dock, station and depot. It is an ideal tool to improve efficiency and reduce labor intensity.
  • Page 4 Model EPT15H EPT33H Capacity kg/lb 1500 3300 Load center mm/in 23.6 Standard overall fork width mm/in 550/685 21.6/27 Fork length mm/in 1150/1220 45/48 Characteristics Overall length mm/in 1552/1622 61/63.8 Overall height (with tiller) mm/in 1300 Rear body width mm/in 550/685 21.6/27...
  • Page 5 4.2 Operation ① The truck can only be allowed to use on hard ground. Do not work on oily ground to avoid slipping. ② Turn on the switch, make sure the battery is full, then start to operate. ③ Do not use the truck when battery is low. Low voltage use will damage battery. Charge and discharge the battery on a regular basis when truck is unused for long time ( over one month).
  • Page 6 Horn Emergency reverse button Forward & backward knob Fork Lifting & Lowering Battery indicator 5.4 Drive Wheel Disassembly Introductions 1. Let the drive wheel #10 suspend. 2. Dismantle controller cover (#7) by removing 3 bolts #8. 3. Loosen controller (#5) by removing 2 bolts #6. Avoid force on wires. 4.
  • Page 7 5.5 Replace the Vent screw before put the truck into work. Replace the Vent screw before putting truck into work. In order to avoid oil leak during transportation, the vent screw on the hydraulic oil filler is replaced by a solid screw. Before putting truck into use, this solid screw must be replaced by the vent screw, to avoid the cylinder being vacuum during lifting or lowering.
  • Page 8 filled. 7. Transport and Storage This EPT15H electric pallet truck must be placed in a horizontal position during transport and storage to prevent oil spillage. During storage, it should be kept clean to avoid moisture and harsh climate. The ambient temperature must not exceed 40℃...
  • Page 9 Check battery wire Power switched on, Loose wire connection, bad switch connection, but power contact, results in current fasten screw on all indicator light off interruption connection joints, keep switch contact smooth Unstable lifting and Get rid of the air in the cylinder lowering rate Air inside cylinder by fully lifting and lowering...
  • Page 10 Troubleshooting When controller detects failure, the truck stops working. LCD gives fault identification codes. The LCD uses two-digit code. Two short flashing and one long interval means 11,two short flashing, one short flashing and one long interval means 21, etc. Error Code Error Possible Cause...
  • Page 11 EPT15H(EPT33H) Parts Manual Electric Pallet Truck Read and observe all warnings on this unit Warning before operating it. DO NOT operate this equipment unless all Warning factory installed guards and shields are properly secured in place. Date:2018...
  • Page 12 PARTS ORDERING INSTRUCTIONS HOW TO ORDER When ordering the parts, please supply part number, parts name, quantity, model and serial number of your machine. Supplying this information will assure prompt, efficient handling of your order. Since your dealer carries many parts in stock and maintains up-to-date pries on all parts, he will be able to process your order immediately.
  • Page 13 Index ITEM# DESCRIPTION PAGE 13-14 Fig.1 Handle assembly Fig.2 Control box assy 15-16 17-18 Fig.3 Driving system 19-20 Fig.4 Drive unit assembly Fig. Hydraulic unit assy 21-22 23-24 Fig.6 Cylinder assembly 25-26 Fig.7 Frame Fig.8 loading wheel assy 27-28 ouble Fig.9 loading wheel assy 2 9-30...
  • Page 17 Potentionmeter...
  • Page 18 Driving system 16 17 18 19...
  • Page 19 Driving system Axle socket Cables cover unit assembly Driving wheel cover...
  • Page 20 Drive unit assembly...
  • Page 21 Drive unit assembly One-stage transmission gear Locating unit...
  • Page 23 unit assy Oil pipe Cables Lifting limitation switch...
  • Page 25 body...
  • Page 26 31 32...
  • Page 27 Cushion block Washer Washer switch Cables...
  • Page 29 Tandem mounting plate...
  • Page 33 ） （ ） （...
