Summary of Contents for Gigglepin GP100

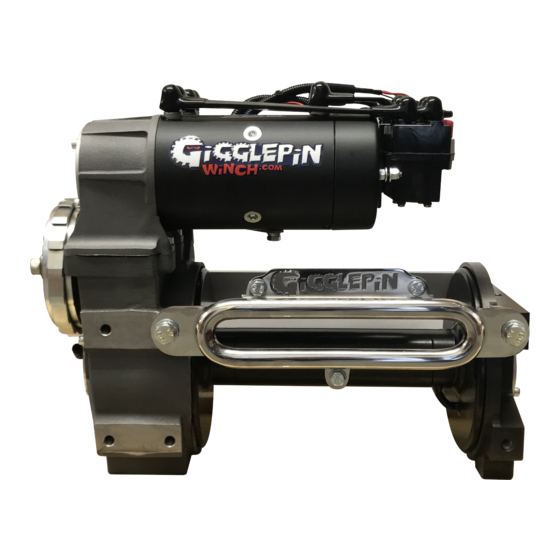

- Page 1 GP100 Owners Manual Serial numbers GP1001001 onwards www.GigglepinWinch.com Shop@Gigglepin4x4.net +44 (0)1732 463600...
- Page 3 Notes Built By Build Date This GP100 has been hand crafted to your personal specification. It is ready for a life of pulling hard. But every winch is different, so tell us about you winch story and what you do with your GP100...
-
Page 5: Table Of Contents
Table of Contents 1. Introduction Page 1-3 a. What’s in the Box b. How do I Fit my GP100 2. Application information Page 3-7 a. Rope b. FreeSpool c. Using Your GP100 d. Electrical e. Brakes (including MBS) 3. Rigging and Winching Advice and Tips Page 8 a. -
Page 6: Introduction
1. Introduction The Gigglepin GP100 competition winch has been designed and built to give you the highest levels of performance and reliability in a demanding world. Using the best materials and designs that set it apart from all of its competitors, it is the standard to which others aspire. -
Page 7: How Do I Fit My Gp100
2. Application Information A GP100 winch is designed to move a load at ground level or up or down an incline. It is not designed for, nor intended for hoisting. A GP100 winch is not designed to be used to lift or move people. -
Page 8: Rope
Warning - Over revving when retrieving rope in a no load scenario can cause premature motor failure. Caution - GP100 winches are very fast, be sure to be standing at least two metres from the winch, always wear gloves and make sure there are no loops in the rope or debris that could catch your hands. -
Page 9: Freespool
Using your GP100 Gigglepin winches are very fast and powerful and require respect during use. Here are a few tips and techniques that will help you get the most from your winch. -
Page 10: Electrical
12 Volt Systems using 12v motors and solenoids The GP100 winch requires a heavy 12v feed using a minimum of 50mm² cable. This needs to be connected to the red M8 terminal on the rear contactor and preferably via a large 250amp (continuous) cut off switch (see picture below). - Page 11 Never stall your winch and always make sure your kill switch is easily accessible. Caution - Electrical systems are only as good as their connections. Use high quality cables and battery terminals. Gigglepin can supply a large range of components and premade cables for any winch install.
-
Page 12: Brakes (Including Mbs)
The MBS does not affect the standard brake fitted to the GP100 The Gigglepin MBS can be fitted on to new and second-hand winches allowing the user to upgrade their winch at any time. On Winches fitted with MBS there is a third brown wire on the solenoid harness. This wire must be run to a switch fitted near to the other winch control switches. -
Page 13: Rigging And Winching Advice And Tips
3. Rigging and Winching Advice and Tips GP100 winches are designed for multiple recovery situations and can be used static or attached to a vehicle or moving platform. It is impossible to cover every situation in this handbook, but we will cover some basic recovery techniques. -
Page 14: Common Winch Hand Signals
a. Common Winch Hand Signals While winching, you may choose to have someone else to help you. One person directs the operation and watches the winch outside of the vehicle while the other is in control of the winch and vehicle. In these cases it is important that both people agree in and understand the basic winch hand signals. -
Page 15: Winch Maintenance
Winches varies dependant upon where they are used, and what they are used for. This is a basic guide to general winch maintenance for your GP100 and should be tailored to your application as required. If in doubt please contact your Local Gigglepin Winches supplier with your requirements. -
Page 16: Maintaining Your Rope
Avoid sharp bends – A sharp bend in the rope decreases its strength substantially under load and may cause rope damage or failure. c. Top Tips for Your GP100 - Inspect your winch regularly before and after every use. - Do not use damaged equipment or a winch that isn’t operating properly. -
Page 17: Warranty
6. Contact Information If you have any problems or any queries please contact your local Gigglepin Supplier or contact us directly. Gigglepin 4x4... -
Page 18: Technical Data
7. Technical Data a. TopHousing Diagram * Please note that these bearings have the seals removed. - Page 19 a. TopHousing Diagram (Cont’d) Item Quantity Product No. Description Notes GP41 TopHousing Cover Plate GP43 TopHousing O-Ring Part of TopHousing Service Kit - G17020 GP49 6005 Bearing Part of TopHousing Service Kit - G17020 See Notes TwinMotor TopHousing Pinion Gears Part of TopHousing Gear Set G1810000/15/25/40/50/60 See Notes TwinMotor TopHousing Centre Gear Shaft Part of TopHousing Gear Set G1810000/15/25/40/50/60...
-
Page 20: Lowerhousing Diagram
b. LowerHousing Diagram * Please note that these bearings have the seals removed. - Page 21 GP29 M12 x 35 Set Screw GP30 M12 Split Washer GP31 M12 Flat Washer 7550 Carrier G7550 Main Gear 7550 GP39 GP100 Lower housing GP13 Thrust Bearing GP12 Thrust Washer GP15 Piston Rod O-Ring GP42 Oil Plug GP14 Piston Spring...
-
Page 22: Winch Wiring Diagram 12V
c. Winch Wiring Diagram - 12V d. Winch Wiring Diagram - 24V... -
Page 23: Winch Wiring Diagram Overvolting
e. Winch Wiring Diagram - OverVolting * Use 24V Solenoid if switch current is 24V. If Switching current is 12V, use 12V Solenoids f. FreeSpool Air Solenoid Wiring Diagram... -
Page 24: Winch Wiring Diagram 12V Fitted With Mbs
g. Winch Wiring Diagram 12V Fitted with MBS h. Winch Wiring Diagram 24V Fitted with MBS... -
Page 25: Winch Dimensions - Short Drum
i. Winch Dimensions – Short Drum Please note the measurements are in Millimetres. -
Page 26: Winch Dimensions - Standard Drum
j. Winch Dimensions – Standard Drum Please note the measurements are in Millimetres. -
Page 27: Winch Dimensions - Long Drum
k. Winch Dimensions – Long Drum Please note the measurements are in Millimetres. -
Page 28: Gp100 Fairlead Mounting Underwound
GP100 FairLead Mounting for Underwound Note – These diagrams are for demonstration purposes only as there should be a Winch Mount/Tray present to which the FairLead would be mounted to. m. GP100 FairLead Mounting for Overwound Note – Always use the supplied 20mm bolts when fixing to the rear of the casing. - Page 29 Note – You can mount the winch various different angles, but we recommend this must not be less than 20 degrees from horizontal, so as not to affect gearbox operation and to prevent oil pooling in the TopHousing.
-
Page 30: Glossary
6. Glossary Drum – Tube with flanges to store rope. Drum Support Plate – Part of the winch which is typically used to mount a winch or hold a winch drum. Disengaged – The winch clutch position in which FreeSpooling can take place. Engaged –... -
Page 31: Ratio Information
9. GP100 TopHousing Ratios & the Hurricane Gearset The GP100 is offered with the choice of six different TopHousing ratios so that we can find the perfect match of power and speed, tailored to each individual user and application, and your ratio fitment will be stamped in the top of the TopHousing. - Page 32 Gigglepin 4x4 Unit 10, GigglepinWinches Gaza Trading Estate, Scabharbour Road, Hildenborough, @GigglepinWinches Kent TN11 8PL www.GigglepinWinches.com Shop@Gigglepin4x4.net +44 (0) 1732 463600...
