Summary of Contents for Axis Electronics NANO Series

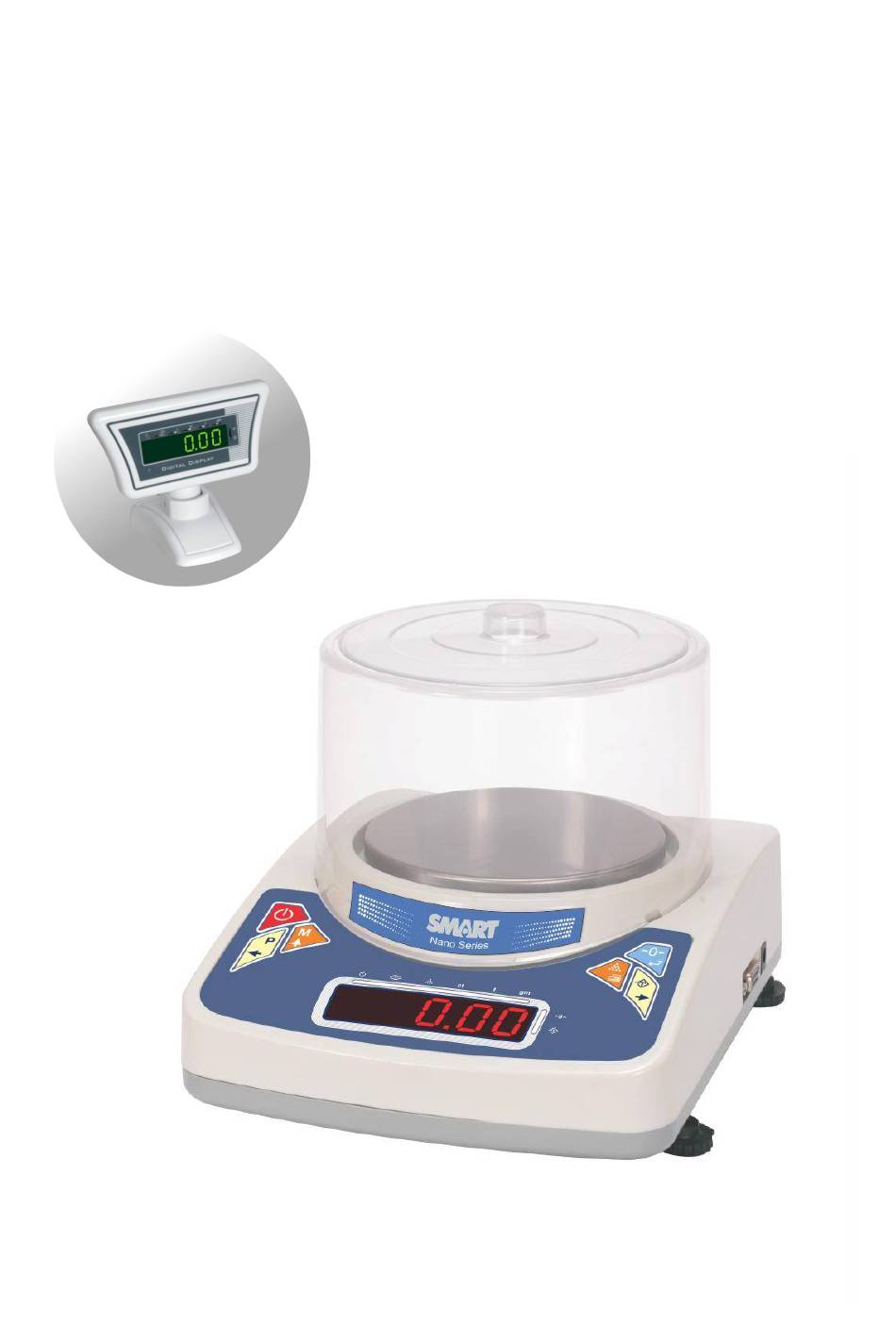

- Page 1 NANO Nano Series Electronic Weighing Scale...
- Page 2 The NANO series weighing scale is an accurate, fast and versatile series of precision scales, loaded with time saving features and ease of customer use. The scale is equipped with a 0.56” LED display to show weight for the user,...
-
Page 3: Technical Data
NANO Series Precision Balance 2 TECHNICAL DATA Measurement Parameters High Precision Balances Measurement NANO-50G1 NANO-100G1 NANO-200G2 NANO-300G5 Data Capacity 100g 200g 300g Readout / Interval Tare range 100g 200g 300g subtractive Repeatability ±1d ±1d ±1d ±1d Display Resolution 1:50000 1:100000... -
Page 4: Installation
NANO Series Precision Balance Stabilization 2 seconds 9V AC Adaptor / built in battery for backup to 50hrs. / 70 hrs with sleep mode Power active Operating Temp. 50° to 98° F / 10° to 35° C Dimensions 164.5 x 232.5 x 164.5 (w x d x h) – including shield. - Page 5 NANO Series Precision Balance where the scale can reject readings with vibration up to some extent. b) Drafts / Air currents: Moving air can cause the scale to read wind movement additional force cause inconsistency in the weighing results. c) External Rubbing / Friction: A scale cannot measure accurately if an object is rubbing or pressing against the scale platform.
-
Page 6: Controls And Functions
NANO Series Precision Balance 4 CONTROLS & FUNCTIONS SYMBOL NAME FUNCTION Power Key To power on and off the machine Counting / Switch to piece counting mode Long Press – Initiate the Print Command Print Key ... -
Page 7: User Operation
NANO Series Precision Balance 5 USER OPERATION SWITCHING SCALE - ON / OFF The scale is switched ON / OFF by pressing the Power BUTTON: This button is used to switch on and switch off the scale. It is a real ON/OF which is implemented using the latest technology so that there is absolutely no power consumption when the scale is switched off. -
Page 8: Zero Operation
NANO Series Precision Balance machine will display zero and the tare LED will be ON. To recall the tared weight, simply press the TARE button again. To TARE the value, again press the TARE button. 5.2.2 RIGHT ARROW KEY: This is used to selected digit on right side while entering settable values or calibration weight or any other user parameter etc. - Page 9 NANO Series Precision Balance counting is measured. The zero will function within 5% of the internal zero setting. The scale has an automatic auto-zeroing function to account for minor drifting or accumulation of material on the platform. This auto-zero range can be configured in the user setup. However you may need to press the ZERO/ENTER key to rezero the scale if small amounts of weight are shown when the platform is empty.
- Page 10 NANO Series Precision Balance 5.4.2 LEFT ARROW KEY: This is used while entering settable values or calibration weight etc. Gram Mode MODE BUTTON / UP ARROW KEY: This but ton is used to select the different units of weight available in the scale, that is to choose between the units of carat, tola, and gram.
-
Page 11: Scale Settings
NANO Series Precision Balance pieces selected. Simply press the counting button once, if the user wants to exit the counting function to come in to the weighing mode. 5.6.2 PRINT FUNCTION: When a certain weight value or counting value or percentage value is being displayed, keep this button pressed for three seconds. -
Page 12: Filter Setting
NANO Series Precision Balance press the MODE button, and user can choose whether the scrolling function is required or not. If the price scrolling function is required user should select “Yes”, and if it is not required then the user should select “No”. - Page 13 NANO Series Precision Balance 7 CALIBRATION All SMART weighing scales come pre-calibrated from the factory. However the scale may require re-calibration. Temperature changes, geographic gravity variations, altitude changes and abuse are few reasons why a scale may need recalibration. The scales can be calibrated using a known external weight.
- Page 14 NANO Series Precision Balance With the weight still on the pan, the display will now show the weight that is calibrated. Check calibration to ensure the scale is reading correct INTERNAL SERVICE CALIBRATION Internal calibration also referred as service calibration requires opening the machine and changing the jumpers.
-
Page 15: Error Codes
NANO Series Precision Balance Pause for 2 seconds at the previous step and press Zero/Enter key. The display shows “LoAd” momentarily and shows the internal counts. Put a known weight on the weighing pan (Ex.: 200g). Press the Enter key. The display will now show all “000”... -
Page 16: Troubleshooting
NANO Series Precision Balance Weight not enough Keep weight selected more weight on pan for correct results. setting Battery is low. Connect Battery. Machine displays scale to power so that battery message and turns charged. 8 TROUBLESHOOTING SYMPTOM...
