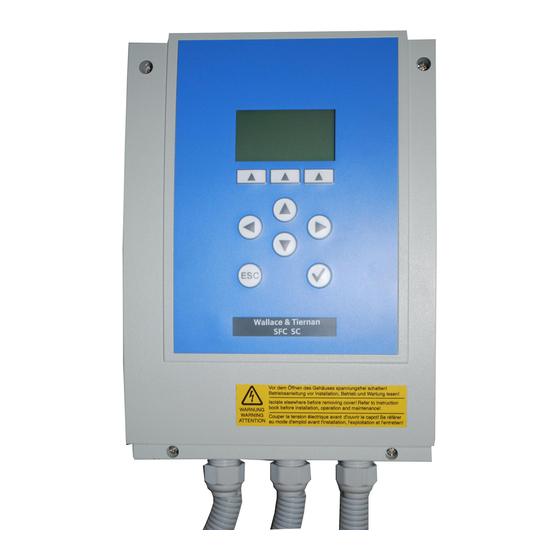

Page 1 ® WALLACE & TIERNAN MEASURING AND CONTROL SYSTEM from version V:3.08 INSTRUCTION MANUAL...
Page 2 Please note Original instruction manual! WT.050.590.000.DE.IM.0719...
Page 3: Table Of Contents
Contents Contents Introduction Documentation Conventions Safety Intended use General safety instructions Warranty conditions Specific Operating Phases Notes on Special Dangers Description Versions Technical Data Scope of supply Description Functions General Measurement inputs Outputs SFC CAN retrofit kit Applications Controller outputs Control parameters Alarms Adaption...
Page 4 Contents Installation Transport and storage Installation Commissioning System shut down Operation Display and operator controls Notes on operation Menu structure Calibration Errors and remedies Maintenance Maintenance Schedules Maintenance of flow block assembly DEPOLOX® 5 Maintaining membrane sensors Maintaining Redox electrode Maintaining pH electrode Maintaining fluoride electrode Maintaining conductivity electrode...
Page 5: Introduction
Introduction 1. Introduction Documentation 1.1.1 Target groups This instruction manual provides the information for installation, operating and maintenance personnel. It is required for operation and maintenance of the unit. This instruction manual is intended for the operating personnel. It contains important information for safe, reliable, trouble-free and economical operation of the unit.
Page 6: Conventions
Introduction Conventions Please note This operating manual contains a number of notes with different priorities, which are marked with symbols. Picto- Note Meaning gram Immediate danger to life and limb! Danger! If the situation is not handled properly, death or serious injury may be the result.
Page 7: Safety
General safety instructions Evoqua Water Technologies GmbH attaches great importance to ensuring that work on its system is always perfectly safe. This was already taken into account in the design of the system, by the integration of safety features.
Page 8: Warranty Conditions
„Authorized specialists“ are trained technicians employed by the operator, by Evoqua, or, if applicable, the service partner. Only qualified electricians may perform work on electrical components. Trouble-free operation of the system is only guaranteed if original...
Page 9: Specific Operating Phases
Safety • An operating log book must be kept (only in the public sector). • Only approved calibration chemicals may be used • The unit must not be exposed to frost. • Maintenance work must be executed • Use of original spare parts If any of the above conditions are not met, the warranty is void.
Page 10: Notes On Special Dangers
Safety Notes on Special Dangers Only use original fuses with the prescribed current rating! In the Electrical power event of a fault in the electrical power supply, switch the unit off immediately! Only qualified electricians or trained personnel supervised by a qualified electrician are permitted to perform any work on electrical components in accordance with valid electro-technical regulations.
Page 11: Description
Description 3. Description Versions There are two versions of the SFC. They differ in the type and number of inputs and outputs that are available and in terms of functionality. Both versions are available either as control cabinet units or wall units.
Page 12: Technical Data
Description Technical Data 3.2.1 Electronic module SFC Housing Dimensions (WxHxD) 185 x 265 x 145 mm Weight approx. 2.5 kg Protection type IP 66 Electronics Mains connection 100 – 240 V AC ± 10%, 50 – 60 Hz, 15 W, Fuse 1A time lag 250 V Type: 5 x 20 mm 24 V DC ±...
Page 13 Description Digital inputs 2x inputs for voltage-free contact (< 100 Ohm) power supply via SFC (12 V) DI 1: Sample water monitoring / freely selectable in menu DI 2: Freely selectable in menu Measurement inputs 1x temperature input PT 1000 (0°C – 50°C) with sensor error display (not with Version 2) 1x feedback input positioner position feedback...
Page 14 Description Interfaces 1x RS232 for firmware updates (not galvanically isolated) 1x RS485 (optional) (not with Version 2) for connection to: • ChemWeb-Server • OPC Server Data Access V2.0 • CMS Software 3.0 • SECO-S7 The RS485 interface is electrically isolated up to 50 V to ground. 1 x CAN interface to connect to CAN sensors 1x RS232 interface for Gateway module (not with Version 2) Display and operating unit...
Page 15 Description mA output 1x mA output (freely configurable): • Output 0/4 – 20 mA • Accuracy < 0.5% FS • Load max. 500 Ohm • Temperature drift max. 0.2% / 10°C • Load monitoring • Electrically isolated up to 50 V to earth Memory card 1x SD memory card slot for installing an SD memory card (not with Version 2)
Page 16 Description DES module membrane sensors Sensor Membrane covered 3-electrode sensor Principle of operation Potentiostatic amperometry Temperature drift max. 0.2% / 10k Linearity error < 0,1 % Calibration Pre-calibrated Input signal -7 – 1000 µA Measuring ranges 70, 100, 200, 1000 µA pH measuring module for pH value Sensor input...
Page 17 Description mS measuring module for conductivity Sensor input LF325 Temperature measuring 0 – +50 °C range Temperature drift < 0,2 % Calibration Pre-calibrated Linearity error < 0,5 % Measuring range 0,1 – 200 mS/cm mA/V measuring module for analog input Sensor input mA signal or V signal Temperature drift...
Page 18 Description 3.2.2 Flow block assembly DEPOLOX ® Housing Dimensions (WxHxD) 215 x 375 x 155 mm Weight approx. 1.5 kg Multi sensor Switching point 21 l/h +/- 3 l/h Switching hysteresis 2 l/h Temperature sensor PT 1000 Measured variables Free chlorine, chlorine dioxide, ozone, potassium permanganate Measuring ranges...
Page 19 Description Cross-sensitivity other oxidation agent: copper- based algaecide Water quality swimming pool, potable, industrial and process water Sample water temperature max. +50 °C Conductivity min. 200 µS/cm Service life Life of the electrolytes in operation approx. 6 months Service life of electrodes in operation approx.
Page 20 Description 3.2.3 VariaSens flow block assembly Housing Dimensions (WxHxD) 215 x 375 x 155 mm Weight approx. 1.5 kg Connections Sample water PVC hose 6 x 3 mm or PE hose 6 x 1 mm Thread connection G1/2“ or NPT 1/4“ Flow control valve Flow rate approx.
Page 21 Description 3.2.4 Flow block assembly DEPOLOX Pool ® Housing Dimensions (WxHxD) 215 x 375 x 155 mm Weight approx. 1.5 kg Connections Sample water PVC hose 6 x 3 mm or PE hose 6 x 1 mm Thread connection 1/2" Flow control valve Flow rate approx.
Page 22 Description 3.2.5 Y-style flow through assembly Y-style flow through assembly pH/mV Back pressure non-pressurized/pressurized Version (max. 6 bar) Sample water temperature max. +50 °C Y-style flow through assembly fluoride Back pressure Non-pressurized version Sample water temperature max. +50 °C Y-style flow through assembly conductivity Back pressure pressurized version up to 6 bar...
Page 23 Description pH electrode Max. measuring range pH 0 – 12 Operating temperature -5 – +80 °C range Storage temperature range -5 – +30 °C Sample water conductivity 200 µS/cm – 200 mS/cm Max. operating pressure 6 bar ORP electrode Max. measuring range -1000 –...
Page 24 Description Membrane sensor Please note For further technical data please refer to instruction manual „Membrane sensor for free chlorine FC2“ and „Membrane sensor for total chlorine TC3“ for each membrane sensor. Membrane sensor for chlorine dioxide CD7 Measured variables Chlorine dioxide, selective compared to Cl , Br , cross-sensitivity...
Page 25 Description Service life Service life of the electrolytes in operation is approx. 6 months, service life of membrane cap is typically 1 year (shortened by poor water quality, e.g., sand, dirt) Cross-sensitivity ozone, peracetic acid Selectivity compared to chlorine, bromine, hydrogen peroxide Membrane sensor for ozone Measured variables...
Page 26 Description Service life Service life of electrolytes in operation is approx. 6 months, service life of membrane cap is typically 1 year (shortened by poor water quality, e.g., sand, dirt) Cross-sensitivity Chlorine dioxide, peracetic acid Selectivity compared to chlorine, bromine, hydrogen peroxide 3.2.7 CAN sensor modules SiDiSens...
Page 27 Description Measurement inputs SiDiSens Sensor type Single-rod electrode for pH Input signal -400…+400 mV Temperature drift <0.1 %/10K Linearity error < 0,1 % Input impedance Calibration Pre-calibrated Connections Power supply + Connecting cable with 5-pin M12 CAN bus plug and 5-pin M12 socket for CAN bus terminal plug or to connect other CAN bus components...
Page 28: Scope Of Supply
Description Scope of supply Please note You will find the order numbers under 8. “Complete Units, Retrofit Kits and Spare Parts”. 3.3.1 Standard Depending on the individual order, the scope of supply includes the following: • Electronic module SFC incl. accessories set and mounting set, comprising: 4x screws Ø...
Page 29 Description 3.3.2 Options The order numbers for the flow block assembly are found in 8. “Complete Units, Retrofit Kits and Spare Parts”. ® • DEPOLOX 5 (non-pressurized or pressurized version) Flow block assembly ® • DEPOLOX Pool (non-pressurized or pressurized version) •...
Page 30: Description
Description Description 3.4.1 Versions The SFC is available in two different versions (see 3.1 “Versions”), each in two voltage variations: • 100 – 240 V AC • 24 V DC Depending on the application, the SFC can be operated either without a flow block assembly (no sensor measuring module) or in connection with a flow block assembly and sensor measuring module.
Page 31 Description Overview Non- Non- Pressurized Non- Pressurized pressurized Pressurized Y-style flow pressurized version pressurized version version version through version ® version DEPOLOX ® ® VariaSens assembly DEPOLOX DEPOLOX ® VariaSens DEPOLOX Pool Pool Example: W3T171332 W3T159950 W3T158503 W3T163663 D B A D E C B C B D D C B...
Page 32 Description Fluoride 0,20 – 20,00 Conductivity 0,1 – 200 mS/cm Temperature (PT 1000) 0 – 50 °C „Multi sensor“ Flow rate monitor (reed switch) Earthing Ball valve G 1/2“ connection Sample water (inlet) Ball valve G 1/2“ connection Sample water (outlet) Preliminary filter Recommended...
Page 33 Description 3.4.2 Design The SFC unit has a modular structure and can be equipped with Overall design various types of sensor measuring modules. Several SFC modules can be installed next to each other on a top-hat rail or using surface mounting brackets. ®...
Page 34 Description The electronic module SFC consists of a plastic housing (E) with a Electronic module SFC removable cover. The housing contains: • A&C board (A) • Housing ducts for the cables of the sensor measuring modules • the cable glands (B) •...
Page 35 Description The following are integrated into the cover: • Front panel board with graphic display (B) and interface connections • Insertable strips (C) • SD memory card (D) Picture 4 SFC Operating front (rear) A Housing cover B Front panel board C Insertable strips D Memory card ®...
Page 36 Description Flow block assembly ® DEPOLOX 5 non-pressurized version ® Picture 5 Flow block assembly DEPOLOX 5 cutaway model A Cell body with cover B Plastic housing C Flow control valve D 3-electrode cell for Cl , ClO or KMnO E Drain/extract specimen F Ball valve G Fine filter...
Page 37 Description Flow block assembly VariaSens non-pressurized version Picture 6 Flow block assembly VariaSens cutaway model A Cell body with cover B Plastic housing C Flow control valve D Drain/extract specimen E Ball valve F Fine filter G Lower clip H Multi sensor Upper clip (coated) Sensors Two clips (H/I) are installed in the housing cover.
Page 38 Description Flow block assembly ® DEPOLOX Pool non-pressurized version ® Picture 7 Flow block assembly DEPOLOX Pool cutaway model A Cell body with cover B Plastic housing C Flow control valve D Drain/extract specimen E Ball valve F Fine filter G Lower clip H Multi sensor Upper clip (coated)
Page 39 Description The sensor measuring module consists of: Sensor measuring module ® • Sensor (not with 3-electrode cell DEPOLOX 5, mA/V input) • the sensor cable with water-tight housing duct (not with 3- ® electrode cell DEPOLOX 5, mA/V input) • Pre-calibrated plug-in card Due to the modular design, simple installation and configuration of sensor measuring modules in accordance with the plug-and-play...
Page 40 Description WT.050.590.000.DE.IM.0719...
Page 41: Functions
Functions 4. Functions General The SFC is a special measuring and control device for use in the treatment of potable water, industrial process water and pool water. Two different versions of the unit are available (see chapter 3.1), which differ in terms of their inputs and outputs. Version 1 supports all of the applications described in chapter 3.1.
Page 42 Functions The integrated graphic display displays the following: • Measured values • Mode • Bar graph with limit values • Setpoint and measuring range • Description of customized measuring points • etc. The menus are easy to use, displayed in plain text and are selected using softkeys.
Page 43 Functions The Cl value is a pH-compensated chlorine measurement (optional). This requires a pH-measurement in the same sample water as the 3-electrode cell. Measurement values are collected by SiDiSens pH via the CAN bus. The graphic display shows the measured data, limit values and setpoints as numeric values, diagrams or a trend line.
Page 44 Functions The SFC supports the following links: Interfaces • CMS 3.0 RS485 interface Visualization software for archiving and display of measured values on computers with a Windows operating system • SECO-S7: SPS driver for data links to SPS, type S7-300 •...
Page 45: Measurement Inputs
Functions Measurement inputs In principle, the following types of sensor measuring module or retrofit kits can be installed at the module slot: The sensor measuring modules are only supported in applications 1 and 2: for 3-electrode cell for 3-electrode cell with PT 100 temperature option for free chlorine (FC1/FC2), chlorine dioxide (CD7), ozone (OZ7), and total chlorine (TC1/...
Page 46 Functions 4.2.1 3-electrode sensor DEPOLOX 5 and DEPOLOX Pool ® ® Potable, industrial and swimming pool water are disinfected Flow block assembly ® almost exclusively by adding chlorine, chlorine dioxide, ozone or DEPOLOX 5 3-electrode potassium permanganate. measurement for free Cl , ClO or KMnO ®...
Page 47 Functions Single-rod 3-electrode sensor (single-rod glass electrode) The disinfection of pool water is carried out almost exclusively Single-rod 3-electrode sensor ® through the addition of chlorine. The contents of this disinfectant for the DEPOLOX Pool for can be continuously recorded using the 3-electrode single-rod measuring free chlorine electrode.
Page 48 Functions The difference between the µA cell current at 0% disinfectant (or Setting guideline sample water stop) and the maximum measured value must be within the following µA measuring ranges: • 0 – 70 µA • 0 – 100 µA (factory setting) •...
Page 49 Functions Ambient conditions Installation notes The following must be taken into account when installing the 3- electrode measurement: • Select the sample water extraction point that guarantees a proper mixture of disinfectant and a bubble-free sample water flow. • Keep the sample water extraction line as short as possible. Please note No water carrying lines made of copper piping may be installed.
Page 50 Functions 4.2.2 pH measurement The pH value is a measured variable in the field of water treatment. It is a measure of the level of acidity or basicity of a water sample. A glass single-rod measuring sequence is used as sensor. Picture 1 Sensor measuring module The pH measuring system consists of:...
Page 51 Functions 4.2.3 Redox Measurement The Redox voltage is a measured variable in the field of water treatment. The electrical potential present during the Redox reaction is described as Redox voltage and represents the oxidation strength of a system. The Redox electrode is a single-rod electrode including silver/silver chloride reference system, which is very robust and low-maintenance.
Page 52 Functions 1 Install the mV sensor in the corresponding opening on the flow Installing the mV sensor block assembly in theY-style flow through assembly. in the flow block assembly 2 Screw the sensor cable marked "mV" into place. 3 The mV sensor can be calibrated for the first time after approx. two to three hours running-in time.
Page 53 Functions Ambient conditions Installation notes The following must be taken into account when installing the fluoride measurement: • Select the sample water extraction point that guarantees a proper mixture of disinfectant and a bubble-free sample water flow. • This does not require a certain flow rate. •...
Page 54 Functions 1 Screw the injection cap on the bottle with the fill solution. Preparing the electrodes 2 Pour a little fill solution into the filling hole. Then rinse the electrode to wet the electrode body O-ring. 3 Press on the electrode cap until the electrode body is loosened slightly from the epoxy cover so that the cone is also wet.
Page 55 Functions 4.2.5 Conductivity Measurement The conductivity measurement represents a composite parameter for the total mineralization of water. This measurement depends heavily on the temperature, therefore a temperature sensor is integrated directly into the conductivity sensor. The measured value is always indicated in relation to a certain temperature value. The international reference temperatures are 20°C or 25°C.
Page 56 Functions 1 Install the conductivity sensor in the corresponding opening on Installing the conductivity the flow block assembly in the Y-style flow through assembly. sensor in the flow block assembly 2 Use the appropriate accessories if installing the pressurized version. 3 Plug in the corresponding sensor cable.
Page 57 Functions Ambient conditions Installation notes The following must be taken into account when installing the membrane sensors: • Select the sample water extraction point that guarantees a proper mixture of disinfectant and a bubble-free sample water flow. • Keep the sample water extraction line as short as possible. Please note No water carrying lines made of copper piping may be installed.
Page 58 Functions The CD7 membrane sensor enables the chlorine dioxide content Membrane sensor for chlorine in all types of water to be determined selectively, also in high-purity dioxide CD7 water (LF > 1µS/cm), without cross-sensitivity to chlorine, bromine and hydrogen peroxide, but with cross-sensitivity to ozone and peracetic acid.
Page 59 Functions 5 Rinse off the escaped electrolyte with water. Please note The membrane cap (E) must be completely screwed (hand-tight) onto the electrode shaft (B), so that no gap remains between the two! After a run-in period of about one hour, the membrane sensor is sufficiently run-in for an initial calibration to take place.
Page 60 Functions 1 Remove air bubbles on the membrane (G) by lifting the Trouble-shooting and membrane sensor; air bubbles prevent the chlorine dioxide debugging when the measuring from diffusing through the membrane (G) and distort the signal is too low or irregular measurement! Please note Air bubbles on the electrode shaft (B) and the membrane cap (E)
Page 61 Functions The OZ7 membrane sensor enables the ozone content in all types Membrane sensor for ozone of water to be determined selectively, also in high-purity water (LF > 1µS/cm), without cross-sensitivity to chlorine, bromine and hydrogen peroxide, but with cross-sensitivity to chlorine dioxide and peracetic acid.
Page 62 Functions 5 Rinse off the escaped electrolyte with water. Please note The membrane cap (E) must be completely screwed (hand-tight) onto the electrode shaft (B), so that no gap remains between the two! When the sensors are first commissioned, it is necessary to operate the sensors for two or three hours in water with an ozone content of >0.2 mg/l.
Page 63 Functions 1 Remove air bubbles on the membrane (G) by lifting the Trouble-shooting and membrane sensor; air bubbles prevent the ozone from debugging when the measuring diffusing through the membrane (G) and distort the signal is too low or irregular measurement! Please note Air bubbles on the electrode shaft (B) and the membrane cap (E)
Page 64 Functions 4.2.9 mA inputs of the A&C boards The A&C board integrates two mA inputs (mA 1 and mA 2) for recording process parameters. Used for recording the flow rate signal as 0 – 20 mA or 4 – 20 mA mA input 1 signal.
Page 65 Functions The following version is available: • SiDiSens pH for measuring and compensating the pH value for a Cl ++ measurement Please note The SiDiSens is only suitable for connecting to a SFC with firmware version 3.0 and above. Only one SiDiSens may be connected to the SFC. The SiDiSens is provided for the following applications: •...
Page 66: Outputs
Functions Outputs 4.3.1 mA output The mA output of the SFC is electrically isolated and can be parameterized to 0 – 5 mA, 0 – 10 mA, 0 – 20 mA or 4 – 20 mA in the menu. Any measured value, actuator output Y temperature can be assigned to the mA output.
Page 67: Sfc Can Retrofit Kit
Functions SFC CAN retrofit kit A retrofit kit with CAN bus socket (M12, 5-pin) and connecting cable is available as an accessory to directly connect the CAN sensor measurement module SiDiSens to the SFC electronics module. Integration is described in the supplied conversion instructions. Picture 7 SFC CAN retrofit kit...
Page 68: Applications
Functions Applications The configuration of the system is determined by: • Version of the SFC • The required measurement and control parameters • The installed components • the selection of the suitable application • the type of sensor module installed The SFC provides the option to customize the system to the various on-site systems using three integrated applications.
Page 69 Functions 4.5.1 Application 1 - Process measurement With application 1, the SFC operates exclusively as a measuring device. A maximum of four freely configurable alarm relays are available. The type of measurement is determined by the type of the sensor measuring module. Controller outputs are not supported in this application.
Page 70 Functions 4.5.2 Application 2 In application 2, the SFC works as a measuring device and as a control device. Various controller modes can be selected depending on the installed sensor measuring module: • Sensor measuring module without „Process Control“ option (PC) ->...
Page 71 Functions 4.5.2.1 Single feed forward with process measurement This operating mode controls the quantity-proportional dosing of disinfectants. The single feed forward with process measurement is only supported with sensor measuring modules with the Process Control option. A typical application is simple flow-controlled potable water chlorination, as shown in the following figure.
Page 72 Functions Please note If the measuring range end value of the flow meter is not identical with the actual maximum flow rate, a factor for adjusting the flow rate signal should be input in the menu „Inputs/Outputs“ - „Flow Wq“. For example: Measuring range flow meter = 5000 l/h / max.
Page 73 Functions 4.5.2.2 Single feedback closed loop control with process measurement This operating mode controls the desired measured variable according to the the provided setpoint. Single feedback closed loop control is supported with all sensor measuring modules (with and without the Process Control option). The following figure shows a typical application of a chlorine single feedback closed loop control for tanks which are circulated in cycles.
Page 74 Functions The following controller outputs are possible: • Dosing pump • Pulse pump • Positioners with/without feedback (1kOhm/5kOhm/0 – 1 V/mA signal) • Continuous • CAN actuator A PI controller is used to control the measured variables of the How the single feedback sensor measuring module continuously and without control closed-loop control works deviation from the desired setpoint.
Page 75 Functions 4.5.2.3 Compound loop with process measurement The compound loop is a combination of the single feed forward with additional single feedback closed-loop control to correct control deviations. The compound loop is only supported with sensor measuring modules with the Process Control option. The following figure shows a typical chlorine compound loop as implemented in the treatment of potable water.
Page 76 Functions The compound loop outputs a dosing capacity proportional to the How the combi- flow rate, which does not have a fixed dosing factor proportional to control works the flow rate as in the single feed forward, but varies depending on demand.
Page 77 Functions Operation after a flow rate change: Behavior in operation The single feedback closed-loop control remains switched off (Ypi stop function) during the disturbance variables (flow rate change, positioner running time, dead time from line lengths). This maintains a stable control, which means the control operates with the dosing factor from the dosing factor table applicable for the new flow rate.
Page 78 Functions • The control direction can be switched. Special Functions • Automatic determination of the control parameter using the integrated fuzzy module. The fuzzy module determines the control parameter from the embedded Tconst and Tvar process times. • The setpoint can be switched between internal and external •...
Page 79 Functions The control variable independent dead time Tconst consists of the Determining the controlvariable measuring dead time and the dosing dead time. independent dead time Tconst Calculation 1: Calculating the measuring dead time The sample water is extracted right after the mixture loop and fed to the measuring cell.
Page 80 Functions Calculation 3: The sample water distraction is carried out as in calculation 1 and/ or 2. To increase the exposure time, the sample water is also sent through a delay tank. The exposure time in the delay tank must be added to the calculated time.
Page 81 Functions 4.5.3 Application 3 Single feed forward without process measurement In application 3, the SFC operates exclusively as a single feed forward. The installation of a sensor measuring module is not supported in this application. The dosing capacity of the connected device is controlled automatically, depending on a measuring signal (external flow rate control signal) and a settable dosing factor.
Page 82 Functions Required module configuration: Sensor measuring modules for measured value recording, e.g., of , pH, etc., are not supported or evaluated in this application. Input signals: • Flow rate measurement (0/4 – 20mA) scalable The following dosing outputs are possible: •...
Page 83 Functions The relationship between control variable and dosing output is determined by the internal dosing factor. If a positioner with feedback is used as the dosing output, it can be linearized using several support points. At least two points are required (0/100 %).
Page 84: Controller Outputs
Functions Controller outputs Controller types Parameter Controller for Type Action description Positioner with feedback 3-point Positioner with Ym Dosing   Positioner without feedback 3-point Positioner without Dosing   Motor dosing pump (pulse 2-point Dosing pump 2p Dosing  ...
Page 85 Functions The dosing pump is switched on for the calculated time within an 2-point pulse adjustable cycle period TP (relay contact). The cycle period is duration controller mainly determined by the reaction time of the connected system for dosing pumps and entered as the cycle period TP.
Page 86 Functions A special controller is required for controlling electrolysis units to Dosing factor prevent excessive on/off switching (on account of the response e.g. for electrolysis systems times of the electrolysis unit). This controller output, therefore, uses a minimum duty cycle as well as a switching hysteresis to minimize the switching cycles.
Page 87: Control Parameters
Functions Control parameters Control parameters are input variables that determine the control functions of a controller. Different parameters apply to each type of controller. Please note The control parameters are listed alphabetically. This parameter is only available during single feed forward in Flow rate source application 2.
Page 88 Functions Special case: Max.lin.Corr. = 0: The curve function is turned off, only one dosing factor is valid for all flow rates and the higher-level single feedback closed loop control remains active. Example: Max.lin.Corr. = 50 % (based on dosing factor): Previous dosing factor: 30 % Newly learned dosing...
Page 89 Functions Meaning: Control direction Direction of the control Display: Direct/inverse (e.g. for pH) Explanation: Defines which medium is used to perform the correction. Example: Control direction "inverse": Lowering pH-value by adding acid Control direction "direct": Adding alkaline to raise the pH value Specified value at which the control variable can be maintained by Setpoint the controller.
Page 90 Functions Meaning: Cycle period Display: Seconds (s) Explanation: The parameter Tp only applies to dosing pumps. The cycle period Tp defines a switching period, which must be coordinated with the respective pump type. Setting range: The parameter Tp can be set from 10 – 180 s. Example: Fast dosing pumps correspond to a low Tp;...
Page 91 Functions Meaning: Loop dead time Display: Seconds (s) Explanation: Time required between dosing start and clear recognition of the rise in the control variable Setting range: The parameter Tu can be set from 1 s – 59 min 59s. Please note If the values Tu and Ts are manually modified, the control parameters Xp and Tn are re-calculated.
Page 92 Functions Meaning: Proportional factor Display: Percentage (%) with factor Explanation: The control amplification is determined with the proportional factor. The lower the proportional factor Xp is selected in % , the greater the deviation from the setpoint is amplified, and the more quickly the controller attempts to control the deviation from the setpoint.
Page 93 Functions This parameter is only possible for dosing output positioner with Ym calibration feedback. Adjust the positioner feedback signal to 0 % and 100 % dosing capacity. When automatic Ym calibration is started, the positioner moves to positions 0 % and 100 % and calibrates both positions with the SFC.
Page 94 Functions Meaning: Ymin Dosing rate basic load (single feedback control-loop control only) Display: Percentage (%) Explanation: The parameter Yminonly applies to: • Positioner with feedback • Dosing pumps 2p • Solenoid pumps 2p • Controllers with mA output 2p A basic dosing rate is output to the actuators with Ymin. Setting range: The parameter Ymincan be set from 0 –...
Page 95: Alarms
Functions Alarms The output of the alarms takes place by means of relay contacts and alarm indicators on the display. The number of the max. four alarms is determined in the application or by the version of SFC. Each alarm can be assigned the following functions: •...
Page 96 Functions The alarm symbol on the display is on when an alarm is triggered Unlatched alarm without and goes out automatically when the alarm condition is removed. acknowledgement option (N.O. The same applies to the contact. unlatched, N.C. unlatched) M I N R e l a y w i t h o u t d e l a y S y m b o l...
Page 97 Functions In the event of an alarm, the alarm symbol on the display flashes Latched alarm until the alarm is acknowledged. with confirmation (N.O. latched. ack • If the alarm condition is no longer present when the alarm is N.C. latched. ack) acknowledged, the symbol disappears.
Page 98: Adaption
Functions Adaption This only applies with Cl single feedback closed loop control. m g / l C l m e a s u r e m e n t 2x setpoint 1 0 0 % setpoint 5 0 % appr. 20 % of 2 0 % 2x setpoint T i m e...
Page 99 Functions 1 Starting from the basic display, select "Adaption" from the Starting adaption "Cl free ( )" menu. The Tu and Ts loop parameters are displayed. 2 In the "Adaption" menu, select the "ADAPT softkey. 3 The display shows the current chlorine value, the actuator output Ym/Y and the control variable in %.
Page 100 Functions Each adaption phase is then displayed with a status message: Adaption sequence Display text Explanation " Init“ Start " Ym = 0 %“ Chlorinator to 0 % or dosing pump off " X = 20 %“ Delay until actual value < 0.2 x 2x setpoint "...
Page 101 Functions When the loop times (dead time Tu and rise time Ts) have been Completing completed without error, calculation of the control parameters Xp adaption without errors and Tn commences. This is indicated by the message "Adaption OK". The calculated parameters are entered in the menus. When adaption has been concluded, the measuring amplifier adjusts with the newly calculated control parameters and continues in the selected operating mode (e.g.
Page 102 Functions Loop rise time too great (display: "Ts = > 8h") The time is determined by a measurement, which the control loop requires at a 100 % dosing rate of the dosing system or the dosing pump, to increase the actual value to 50 % of the measuring range. This measurement is indicated with "9: Ts!"...
Page 103: Sample Water Inlet Disinfection
Functions 4.10 Sample water inlet disinfection For certain applications it is necessary to disinfect the sample water inlet and the measuring cells occasionally using disinfectant such as chlorine solution, for example for measuring the zero chlorine point or for dechlorination. Because there should ideally be no disinfectant in the sample water, you may find that the sample water inlet and the measuring cell become contaminated with bacteria, resulting in an incorrect reading.
Page 104 Functions This function can be found on the main "Extern. functions" menu and contains the following options: Sample Line Dos OFF - ON Range-Start 1: 00:00 ---- 9 start times, can be programmed by day of the week or the same start time can be used for several days, e.g.
Page 105 Functions • As soon as the "Delay" has finished, the "Sample water stop time" starts The message "SW inlet disinfection" is displayed instead of the measurement The measurement cannot be changed via the ports (e.g. RS485) any more (constant) The controller output cannot be changed any more (constant) The mA output cannot be changed any more (constant) •...
Page 106: Serial Interfaces
RS232 • A laptop or PC for firmware updates (download the latest firmware version together with an update program and update instructions from the homepage www.evoqua.com. Matching RS232 connection cable: part no. W3T164902). The RS485 interface provides connectivity to: RS485 •...
Page 107: Can Interface
Functions 4.12 CAN interface The CAN interface is used as a CAN sensor bus and serves to connect: • CAN sensor measurement modules such as SiDiSens pH The CAN interface of the SFC is electrically isolated. For the purpose of connecting the CAN bus components, a standardised plug connector (M12, 5-pin) is integrated in the SFC to supply the CAN sensor with voltage.
Page 108 Functions CAN bus setup Picture 22 CAN bus setup In each case on the first and last device on the bus a bus terminator (bus end Rt) must be installed. In the SFC using the DIP switch Rt, the terminal resistance can be switched on or off (see front panel board in the SFC cover).
Page 109 Functions The SiDiSens is supplied with a special plug for the bus termination which can be plugged directly into the free connection socket for termination. Please note The CAN interface is not compatible with or CAN component groups of other manufacturers.
Page 110: Fieldbus
Modbus TCP W3T166500 Fieldbus module retrofit set SFC Modbus TCP with terminal connections Please note The installation and start-up instructions for the fieldbus retrofit kits are available from your contractual partner or can be downloaded from the homepage www.evoqua.com. WT.050.590.000.DE.IM.0719...
Page 111: Firmware Update
SFC. A special download software and the latest firmware including a description can be downloaded from the homepage at www.evoqua.com. A special update cable is available for the firmware update under part no. W3T164902. The SFC (front panel board) is able to perform a software update...
Page 112 Functions Firmware Update Loading Bootloader !! Warning !! Do NOT turn off the device or put out the SD-card during the firmware update! CANCEL To start the update, confirm this display with "OK" key. Check Flash Check Firmware Firmware found: V: 01.06 EAE1057 Install firmware?
Page 113: Actuator Feedback
Functions 4.15 Actuator feedback The actuator feedback of the SFC is set at the factory to potentiometer with 1 kOhm. For other feedback signals the device must be reset using the DIP switch S4 (see A&C board). Possible signals are: •...
Page 114: Sd Memory Card
Functions 4.17 SD memory card Warning! Only insert/remove the SD memory card when the power supply to the system is off! The SFC can be equipped with an SD memory card for saving or copying unit configurations (see 4.18 “Unit configuration”) and for recording measured data.
Page 115 Functions Picture 25 shows the installed SD memory card A SD memory card Please note Files ending with "*.Bin" can not be evaluated. They are only used as data storage for the SFC and must not be altered.
Page 116: Unit Configuration
Functions 4.18 Unit configuration The SFC gives the option of saving all unit settings as a configuration. Unit settings include all parameters that can be set in the menu, such as the controller mode, setpoint, limit values, etc.). A maximum of two configurations can be saved in the internal memory SFC (see Menu-System-Configuration-Save-Job 1, Job 2).
Page 117: Special Features
Functions 4.19 Special Features If there is no temperature measurement integrated into the sensor Temperature measurement measuring module (DES), the PT 1000 temperature measurement is automatically used from the A&C board for temperature compensation. This can also be switched off in the „Temperature“ calibration menu.
Page 118 Functions WT.050.590.000.DE.IM.0719...
Page 119: Installation
Installation 5. Installation Transport and storage The unit is supplied in standard packaging. During transport the Transport packaged unit must be handled carefully and should not be exposed to wet weather or moisture. Check that the transport packaging is undamaged. In the event of damage please inform the transport company immediately, as your rights to compensation will otherwise be lost.
Page 120 Installation 2 Release the four screws on the cover of the electronic module. Caution! There are connection cables between the cover and basic housing. 3 Carefully remove the cover of the electronic module and leave to hang on the strain relief. 1 Fasten the mounting rail to the wall with two screws (diameter Installation with 5 mm) and two dowels (diameter 8 mm).
Page 121 Installation Top-hat rail assembly...
Page 122 Installation Wall mounting assembly WT.050.590.000.DE.IM.0719...
Page 123 Installation Top-hat rail assembly...
Page 124 Installation Wall mounting assembly WT.050.590.000.DE.IM.0719...
Page 125 Installation Control cabinet installation assembly...
Page 126 Installation Control cabinet installation assembly WT.050.590.000.DE.IM.0719...
Page 127 Installation Installation of the front panel on the control cabinet...
Page 128 Installation Installation of the front panel on the control cabinet WT.050.590.000.DE.IM.0719...
Page 129: Commissioning
Installation Commissioning 5.3.1 Installation guide When the unit has been mounted, the sensor measuring module Commissioning procedure can be equipped (not applicable to unit version 2). The electrical connections can then be setup in accordance with the required application. To set applications, refer to 5.3.10 “Setting the applications”. The following table contains the individual commissioning steps in their correct sequence.
Page 130 Installation Commissioning using the example of application 2 Seq. Chapter and Com- Task page reference pleted Setup electrical connection in 5.3.6 accordance with the application. Page 148 9. Page 267 Install sensor measurement module and, if applicable, connect SiDiSens Insert the sensors and connect 5.3.3 Page 135 Pour in the cell sand...
Page 131 Installation Seq. Chapter and Com- Task page reference pleted Select control mode Page 184 Set dosing output, and adjust Page 184 positioner running time, Tp, and max. pulses if necessary On positioner with feedback Page 184 calibrate„Ym”. With feedback signals, such as mA signal, 0 –...
Page 132 Installation Seq. Chapter and Compl Task page reference eted Adjust values for Tconst and Page 184 Tvar on control (compound loop only) Check max. Lin. corr., adjust if Page 184 necessary (compound loop only) Check control factor, adjust if Page 184 necessary (compound loop only) Check Yout factor, adjust if Page 184...
Page 133 Installation Seq. Chapter and Com- Task page reference pleted Check settings for digital inputs Page 179 1 - 2, adjust if necessary Configure RS485 interface as Page 179 required Check function of alarms 1 - 4, Page 179 adjust if necessary Configure alarm 1 - 4 Page 179 assignment as required...
Page 134 Installation 5.3.2 Pour in the cell sand (only with DEPOLOX 5 and ® DEPOLOX Pool) ® Caution! Before opening the cover on the pressurized version always first release the pressure in the cell body with the drain screw. 1 Close the ball valve on the sample water inlet and outlet (pressurized version).
Page 135 Installation 5.3.3 Inserting and Connecting Sensors Please note Observe the max. back pressure (pressurized version). Please consult the membrane sensor data sheet for this figure. See chapter 4.2.6 Page 56. Arrangement of the sensors ® ® Picture 1 DEPOLOX Picture 2 DEPOLOX Non-pressurized Pressurized version...
Page 136 Installation ® ® Picture 5 DEPOLOX Pool Picture 6 DEPOLOX Pool Non-pressurized Pressurized version version A Membrane sensor: FC1/FC2, CD7, OZ7, TC1/TC3 B Redox C Conductivity D pH E 3-electrode sensor (single rod glass electrode) 1 Remove the protection caps from the sensors. 2 Install sensors (see figure above) in the cell body cover.
Page 137 Installation Arrangement of the plug-in cards and cables Picture 7 Electronic module cutaway model A A&C Board B Housing C Relay terminal D Sensor cable duct E Terminal signal inputs/outputs F Sensor measuring module G Coding switch A&C board H Connecting plug or terminal at the front panel board...
Page 138 Installation 1 Place the sensor cables with the attached bushes into the Connecting the sensor cables cable ducts of the housing. 2 Depending on the sensor design, either plug or screw the cable in place. 3 Insert the supplied bushes into ducts that are not in use in order to seal the housing.
Page 139 Installation 5.3.4 Connecting the sample water and starting up, taking ® DEPOLOX 5 as an example A B C Picture 9 Flow block assembly cross-section A Sample water inlet with ball valve B Drain on the drain screw C Sample water outlet (on pressurized version with ball valve only) Please note Before starting the DEPOLOX 5 perform following steps.
Page 140 Installation Pressurized version Caution! The cap must always be in place when the unit is running. 1 Remove the transport plugs (long) from the electrolyte storage tank and replace with the short stopper. Then put the cap in place. A Transport plug (long) B Stopper (short) C Cap Remove felt ring...
Page 141 Installation Connecting the sample water inlet Please note Never use copper tubing. 1 The pressure in the sample water inlet must always be within a range of min. 0.2 to max. 4 bar. At the same time, the pressure in the sample water inlet must generally be 0.2 bar higher than in the sample water outlet.
Page 142 Installation Locking ring for PE hose with 3 clamping points Locking ring for PVC hose with 2 clamping points 1 Connect the sample water pipework to the ball valve With rigid pipework connection threads. 2 Ensure that the sample water pipework is installed so that it is free of mechanical stress.
Page 143 Installation Examples of sample water extraction systems W2T505525 W2T505525 W2T505525 W3T167656: 0.1 – 1 bar W3T167645: 4 – 16 bar W3T167421 : 16 – 40 bar W3T167628: 0.15 – 4 bar Item Part No. Description W2T506486 Pressure gauge bushing W3T167416 Sample pipe W3T171391 Strainer DN15...
Page 144 Installation Examples for sample water extraction with booster pump Example 1 WT.050.590.000.DE.IM.0719...
Page 145 Installation Example 2...
Page 146 Installation Sample water extraction for fresh water part no. W3T158528 parts list Sample water extraction for salt water part no. W3T158529 Seq. Quantity Part No. Description W2T505181 Screw connection W2T505182 Screw connection W3T171416 Strainer complete W3T167518 Hose connection parts W3T173160 Pressure gauge (fresh water) W3T173198 Pressure gauge (salt water)
Page 147 Installation 5.3.5 Fitting the fine filter ® Insert fine filter with the flow through adapters DEPOLOX ® VariaSens and DEPOLOX Pool. Please note A fine filter must only be installed when membrane sensors are employed. The fine filter is contained in the enclosed accessory set. Picture 10 A Filter unit (interior) 1 Release both knurled nuts.
Page 148 Installation 5.3.6 Connect the device to the power supply Warning! Only authorized and qualified electricians are permitted to install the device and open the housing. The unit may only be put into operation when the housing is closed, and must be connected to protection earth.
Page 149 Installation 5.3.7 Attaching the labeling field 1 Select the required labeling field depending on what module is loaded. 2 Insert labeling field in the housing cover. 5.3.8 Mounting the housing covers 1 Ensure that the cable bushes are fitted correctly. 2 Carefully fit the housing cover of the electronic module and secure with the four housing screws.
Page 150 Installation 5.3.9 Switching the device on Warning! The device is not equipped with a mains switch and is in operation as soon as the supply voltage is applied. When entering operating data it must be taken into account that these could directly influence the connected system components.
Page 151 Installation 5.3.10 Setting the applications 1 Starting from the basic display, restart the system„by selecting "Reset" under the "System" menu, and then pressing "System Restart" "Yes". "SFC Single Function Controller" is displayed. When this appears, press the "left" and "right" arrow keys simultaneously for at least two seconds, in order to obtain the display of the softkey„Applic“.
Page 152 Installation 5.3.11 Positioner calibration with compound-loop-control and single feed back control When connecting a feedback signal, always calibrate the 0 and 100 % positions in order to enable automatic positioning. Calibration can be performed automatically or manually. Only possible with selection of "El.Pos.w.Ym". 1 Ensure that the feedback signal is correctly set on the A&C Automatic calibration board (factory setting 1kOhm potentiometer) see 4.15...
Page 153 Installation 1 Starting with the basic display, open the „Actuator“ window Manual calibration from the „Module Type“ menu. 2 Select and confirm the parameter „Ym Calibration Manual“. 3 Open the „000%“ menu with the Enter key and close the positioner using the arrow-down key until the limit switch turns off.
Page 154 Installation 5.3.12 Positioner calibration with SFC (application 3) or single feed forward (application 2) In these applications the linearization of the control output is possible, such as for example with a gas feeder which has positioner feedback. Here, for example, 30 % control (opening) does not equal 30 % dosing capacity.
Page 155: System Shut Down
Installation System shut down Caution! Risk of uncontrolled dosing of chlorine or pH-correction medium! Shut down dosing system, close positioner! If the installation site of the flow block assembly is not frost-free, the system must be shut down in due time! 1 Switch off the power supply.
Page 156 Installation WT.050.590.000.DE.IM.0719...
Page 157: Operation
Operation 6. Operation Display and operator controls All information is shown on the graphic display with backlight. Graphic display and operating panel The backlight of the display becomes brighter at the touch of a key. Five minutes after the last keyboard entry the brightness reduces to save energy consumption and ensure a longer backlight life.
Page 158 Operation Indicators System name (Enter in menu „System“ - „Common“ - „System CONTROL 1 name“) Digital inputs 1, 2 active The symbols indicate that a function has been selected for the digital signal and that a signal is pending (= digital input open). Password active The defined password must be entered to permit modification of parameters and for calibrating the device.
Page 159 Operation "Adaption" operating mode active during "Automatic" operation Automatic determination of the control parameters for the single feedback closed-loop controller is active. "Adaption" operating mode active during "Manual" operation Automatic determination of the control parameters for the single feedback closed-loop controller is active. Bar graph This serves to indicate a measured value, the measuring range (column height), the limit values (...
Page 160 Operation 100% If the display blinks, the positioner is in manual mode and cannot be activated. 28.4°C Sample water temperature Error indication active (display bottom right) The system has detected an error. The error can be identified using the table in chapter 6.5 “Errors and remedies”. The number combination states the series number of the error message and the total number of error messages (in this example: 1.
Page 161 Operation No measurement available! This message appears when the SFC is operated in application 1 or 2 and no senor measuring module has been loaded. Data are not compatible! This message appears when a configuration is loaded from an SD memory card and may be caused by the following: •...
Page 162 Operation Operator Controls Softkey • Activate the function shown on the graphic display over the keys. • Move up one level. • Display the previous option. • Increase value. Down • Move down one level. • Display the next option. •...
Page 163: Notes On Operation
Operation Notes on operation During operation observe the following points: • Check your entries and modifications before exiting the menu. • Only press the keys with your fingers, never with hard or pointed objects such as pencils, etc. This could damage the sealed keypad.
Page 164 Operation You have the following options starting from the basic display (the Operation basic display is opened by pressing the „ESC“ key in the menu four times): Switch between the • Press the up or down key basic displays and trend graphs Select menu •...
Page 165: Menu Structure
Operation Menu structure The SFC has various manus: • Main menu • Module type, e.g. Cl free 1 • Extern. Functions • Inputs/Outputs • Alarms • System • Diagnosis • Calibration • Mode These depend on the number of sensor measuring modules installed.
Page 166 Operation Main menu 1 2 : 2 0 A n a l y s e r 1 m g / l 0 , 1 5 Basic display 1 C l 2 f r e e T a n k 1 0 0 0 l / s 7 5 % 2 2 , 0 °...
Page 167 Operation Main menu Top status line Basic display 1 • System name • Digital inputs activated • Password protection activated • Time Centre display range • Mode • Measured value, e.g. free chlorine (mg/l) as a digital display with module designation (optional) •...
Page 168 Operation Top status line Basic display 3 See basic display 1 Centre display range • Measured value display • Flow rate display • Controller-specific input/output variables, such as Yout, Ypi, Xd, dosing capacity DL depending on Wq, setpoint value Wi/ Bottom status line See basic display 1 Top status line...
Page 169 Operation Display based on a free chlorine measurement example Menu - Module type 1 2 : 2 0 A n a l y s e r 1 Basic display m g / l 0 , 1 5 C l 2 f r e e T a n k 1 0 0 0 l / s...
Page 170 Operation Display based on a free chlorine measurement example Menu - Module type e t u p Setup C o n t r o l d i r e c t . d i r e c t Y m i n 0 .
Page 171 Operation Menu - Module type Please note The displayed menus and selection parameters depend on the number of sensor measuring modules installed and the selected application. All the parameters illustrated here are not displayed at the same time. Refer to main menu Basic display Display of all available menus Menu select...
Page 172 Operation Ym calibration Auto Ym calibration Manual Ym calib. points 2, 3, 6, 11 max. Pulse/min 100/120/140/160/180 Hysteresis Depending on measuring range 0.01 – 0.50 / 00.1 – 5.0 / 1 – 50 min. ON 1min00s – 59min59s Setup Flow source Off/flow measurement Flow direct ion direct/inverse...
Page 173 Operation Measuring range Range start mA/V Adjustment of measuring range initial value: 0.00 – 5.00 -1000 – +900 (min 100 mV to end value) mA/V Freely definable Range end mA/V Adjustment of the measuring range end value: 9.00 – 14.00 -900 –...
Page 174 Operation Sensor type Definition of the sensor with 3-electrode cells: free Cl , ClO , KMnO A readily programmable sensor type is also available. This can initially be selected under "_ _ _ _". In the "sensor name" menu the name of the sensor can be set.
Page 175 Operation µA measuring range Select the µA signal measuring range for 3-electrode cells and membrane sensors: 70 µA, 100 µA, 200 µA, 1000 µA for Micro 2000 and Deox 2000: 10 µA, 100 µA, 1000 µA Signal Cl free Allocation of the signal used for reading the free Cl value, either CAN external or analog (mA input 1).
Page 176 Operation Limit value 1 Min I within measuring range Max I within measuring range Min II within measuring range Max II within measuring range Hysteresis Depending on measuring range 0.01 – 0.25 / 00.1 – 05.0 / 1 – 50 Limit value 2 Min You/Ym 0 –...
Page 177 Operation Menu - Module type Please note The displayed menus and selection parameters depend on the number of sensor measuring modules installed and the selected application. All the parameters illustrated here are not displayed at the same time. Refer to main menu Basic display Display of all available menus Menu select...
Page 178 Operation (This function is only available with DES modules.) Menu - Extern. Functions 1 2 : 2 0 A n a l y s e r 1 Basic display m g / l 0 , 1 5 C l 2 f r e e T a n k 1 0 0 0 l / s...
Page 179 Operation Menu - Inputs/Outputs 1 2 : 2 0 A n a l y s e r 1 Basic display m g / l 0 , 1 5 C l 2 f r e e T a n k 1 0 0 0 l / s 7 5 % 2 2 , 0 °...
Page 180 Operation Menu - Inputs/Outputs Refer to main menu Basic display Display of all available menus Menu select Display of all available input/output settings Menu Inputs/Outputs Flow rate Signal 0 – 20 mA, 4 – 20 mA Factor 0,1 – 4,0 Format Measurement display 000.0 / 00.00 / 0000...
Page 181 Operation Digital input DI (1), DI (2) Every digital input can be assigned a function. SW-LOSS FCT Yout = 0 %, dosing, mA continuous = (only with DI (1)) 0 % if DI is activated, the feed stops after the preset sample water delay. If DI is deactivated, the feed starts after the preset feed delay.
Page 182 Operation Menu - Alarm 1 2 : 2 0 A n a l y s e r 1 Basic display m g / l 0 , 1 5 C l 2 f r e e T a n k 1 0 0 0 l / s 7 5 % 2 2 , 0 °...
Page 183 Operation Menu - Alarms Refer to main menu Basic display Display of all available menus Menu select Display of all available settings Menu Alarms Alarm 1/2 funct Alarm 1 function Defines the contact condition of the alarm relay, if the alarm is not active. N.O.
Page 184 Operation Menu - System A n a l y s e r 1 1 2 : 2 0 0 , 1 5 m g / l Basic display C l 2 f r e e T a n k 1 0 0 0 l / s 7 5 % 2 2 , 0 °...
Page 185 Operation Menu - System L i n e d i a g r a m Line diagram C h a n n e l 1 C l 2 C h a n n e l 2 T e m p e r a t u r e E S C B A C K B A C K...
Page 186 Operation Menu - System Refer to main menu Basic display Display of all available menus Menu selection Display of all available system settings Menu System General Time (hh:mm) Current time Date (dd.mm.yy) Current date Off / low / high Measure. filter Hold function Off/On (Keeps the measured value constant...
Page 187 Operation Configuration Save Gives the option of saving all device settings, including the application, as Job 1 or Job 2 Restore Gives the option of restoring saved or stored configurations. The current menu settings are overwritten in the process. Job 1 or Job 2 Copy If an SD memory card is installed, the configurations Job 1 and Job 2 can be...
Page 188 Operation Trend Graph channel 1 Assignment of a measured value to the channel 2 trend graph. The selected measured value is plotted in the trend graph (can be traced back up to 30 days if the SD memory card is installed, without the SD memory card from 0 to 24 hours).
Page 189 Operation Explanation of system settings The measurement filter serves to compensate measurement value Measure. filter fluctuations in the event of irregular measurement value signals. The feed delay delays the start of dosing when the unit is switched Feed delay on and when the operating mode has been changed. The selected delay time can be cancelled by pressing the "Acknowledge"...
Page 190 Operation Menu - Diagnosis 1 2 : 2 0 A n a l y s e r 1 m g / l 0 , 1 5 Basic display C l 2 f r e e T a n k 1 0 0 0 l / s 7 5 % 2 2 , 0 °...
Page 191 Operation Menü - Diagnose i a g n . D o s i n g f a c t o r s q / % D L / % q / % D L / % Diagn. Dosing factors 6 , 5 2 8 , 3 3 3 0 8 , 5...
Page 192 Operation Menu - Diagnosis Refer to main menu Basic display Display of all available menus Menu selection Display of all available diagnosis displays Diagnosis Scroll with softkey „-->“ Diagnose module type (1-5) For example Cl Calibration data with date and time of the last 5 calibrations (1-5) Calibration data of 3- electrodesensor for Cl , KMnO...
Page 193 Operation Date and time of the last 5 calibrations F¯ calibration data Zero Established zero point signal of the sensor Decade mV signal of the sensor based on 1 decade (log) act. current mV signal of the sensor Date and time of the last 5 calibrations Conductivity calibration data Span Calibration factor of the conductivity...
Page 194 Operation Information on Third display - Inputs/Outputs • Measured value module • compound loop Yout in % • Ypi-share of Yout in % • Control deviation Xd in % • Dosing capacity (DL) in % acc. to the current flow rate from the dosing factor table •...
Page 195 Operation Menu - Calibration 1 2 : 2 0 A n a l y s e r 1 Basic display m g / l 0 , 1 5 C l 2 f r e e T a n k 1 0 0 0 l / s 7 5 % 2 2 , 0 °...
Page 196 Operation Refer to 6.4 “Calibration”. Menu - Calibration Refer to main menu Basic display Display of all available calibration options Calibration Module type calibration free, Cl ++, ClO KMnO Cal. zero with softkey "ENTER" the display is set to „0.00 mg/l" Cal.
Page 197 Operation Membrane sensor calibration Cl comb. Calib. total within measuring range Calib. combined within measuring range mA/V input calibration Cal. zero within measuring range Cal. span within measuring range Temperature calibration Calib. temperature 0 – 50°C Temp. Unit °C/°F Temp. sensor Switching automatic temperature compensation on or off, selection of the internal temperature sensor...
Page 198 Operation Display with the example of a chlorine measurement Menu - Operating mode 1 2 : 2 0 A n a l y s e r 1 m g / l 0 , 1 5 C l 2 f r e e T a n k 1 0 0 0 l / s 7 5 %...
Page 199 Operation Smooth switching between operating modes To switch smoothly from automatic to manual mode or from Switching from automatic to manual to automatic mode while maintaining the same dosing manual or from manual to capacity: automatic mode 1 Press and hold the CHANGE softkey for approx.
Page 200 Operation Description of the operating modes Dosing is not automatically controlled in the MANUAL mode. The MANUAL values must be continuously monitored. The MANUAL mode is used: • In the event of any possible system faults • during maintenance/cleaning work or while checking the system Please note The MANUAL mode leads to:...
Page 201: Calibration
Operation Calibration Sensor measuring module calibration Caution! With the pressurized version, when calibrating the sensor modules pH value Redox voltage Conductivity Fluoride membrane sensors for free chlorine, chlorine dioxide, ozone Total chlorine the following tasks must also be completed: Before calibration: Close the ball valves on the inlet and outlet.
Page 202 Operation Two clips are installed in the housing cover. These clips can be Calibration aids of the flow rate ® inserted into the rear panel of the housing. module DEPOLOX ® The clip (A) for the sensor will be inserted into the upper catch. DEPOLOX Pool, VariaSens When the electrodes are calibrated in the beaker with the...
Page 203 Operation 6.4.2 3-electrode cell (DEPOLOX 5 and DEPOLOX Pool) ® ® calibration Calibration of the 3-electrode cell for Cl , KMnO , ClO ++ (pH-compensated). Before Cl ++ calibration, it must be ensured that the pH measurement is calibrated correctly. During calibration of the 3-electrode cell, perform a zero point calibration and a measurement value calibration (DPD).
Page 204 Operation 10 After zero point calibration, wait at least 2 minutes. Measurement value calibration (DPD) 11 Select the parameter "Cal. Span" and confirm with "Enter". 12 Open the input menu by pressing "Enter". The actual measured sensor value is thereby cached and can be used for later calibration.
Page 205 Operation 6.4.3 Membrane sensors calibration Calibration is nearly identical for all membrane sensors. The difference lies in the fact that some of the chemicals are measured manually with a photometer and others with a colour meter. A 1-point calibration is available to calibrate the total chlorine measurement and the combined chlorine measurement.
Page 206 Operation 4 Immediately after this extract specimen of sample water and determine the combined or total chlorine content using a comparative device. 5 Confirm the selection by pressing "ENTER" and enter the value measured using with the arrow keys. 6 Confirm by pressing "ENTER". This concludes the combined chlorine calibration.
Page 207 Operation 6.4.4 pH calibration Please note During pH calibration the buffer solution and the sample water should have the same temperature. If there is a difference in temperature of > 5 °C, first enter the temperature of the buffer solution in the menu "Calibration" - “pH“ under "Cal. at temp.". 1 Starting from the basic display in the main menu select the pH-7 alignment "Calibration"...
Page 208 Operation 14 Dip the pH sensor at least 2 cm deep into the buffer solution until the indicated pH value remains constant. 15 Confirm the selection with „Enter“ and save the ascertained value with the arrow keys. 16 Save the value by pressing the „Enter“ key. 17 Take the pH sensor out of the upper fastening clip and wash with distilled water.
Page 209 Operation 6.4.5 Redox calibration (mV) Please note Redox sensors have long running-in times. After calibration with a buffer solution, it can therefore take several hours until the value has stabilized. 1 Starting from the basic display in the main menu select the "Calibration"...
Page 210 Operation 6.4.6 Conductivity calibration Please note The conductivity sensor has an integrated temperature sensor and therefore an automatic temperature compensation feature. In the conductivity calibration menu, the temperature of the temperature sensor in the conductivity sensor can be adapted with the parameter "Cal.
Page 211 Operation 6.4.7 Fluoride calibration The fluoride measurement is calibrated at 2 points, which should be as far from each other as possible, but within the measurement range. The lower value must be calibrated with a lower fluoride concentration than the upper value, e.g. lower value 0.20 mg/l and upper value 2.00 mg/l.
Page 212 Operation If external influences result in a constant difference between the Fluoride correction displayed value and a fluoride value measured manually, this difference can be compensated: 1 Starting from the basic display, from the main menu, select the „Calibration“ menu. 2 Select menu item „Fluor“.
Page 213: Errors And Remedies
Operation Errors and remedies The following table shows and explains all possible error Error messages messages which can be displayed. If several errors occur at the same time, the corresponding messages appear alternately in succession. When the error has been remedied, the error message is automatically deleted.
Page 214 Operation Error message Cause Remedy Calibration? In 3-electrode cells and membrane Check whether there are air bubbles on sensors the membrane sensor and remove, if Slope error - the sensor current necessary based on 1 mg/l has fallen below the required minimum Service membrane sensors - replace electrolyte/membrane cap...
Page 215 Operation Error message Cause Remedy Setpoint? Due to modification of the Reset the controller setpoint or adjust measuring range the setpoint of the the measuring range controller is outside the measuring range. Sensor temp? Error in the temperature Check the temperature sensor and measurement of the sensor cable of the measurement module measurement module/SiDiSens...
Page 216 Operation Error message Cause Remedy Position. Ym? Ym range too narrow Check the distance between the calibration points. Position of positioning motor is calibrated wrong Positioner selected, but not Check setting: Positioner with Ym connected Feedback signal incorrect Check DIP switch for feedback Positioner feedback incorrectly Check (refer to 9.
Page 217 Operation The following table shows and explains possible errors which can Error occur. If you are unable to remedy the error yourself, please contact your contractual partner. Error Cause Remedy No indication on No power supply External switch or fuse on device Device fuse defective Check the power supply and replace...
Page 218 Operation WT.050.590.000.DE.IM.0719...
Page 219: Maintenance
Maintenance 7. Maintenance Maintenance Schedules Please note The liability for defects is only valid if maintenance work is performed as specified. Adhere to the appropriate standards, regulations and locally applicable guidelines. Activity Period/Interval Page ® ® Flow block assembly DEPOLOX 5/DEPOLOX Pool/VariaSens Check for leakages...
Page 220 Maintenance Activity Period/Interval Page Membrane sensor FC2, TC3 Check measuring signal refer to separate min. 1x per week instruction manual Replace electrolyte refer to separate every 3 months instruction manual Replace membrane cap refer to separate 1x per year (depending instruction on water quality) manual...
Page 221 Maintenance Check the entire measuring device including all screw connections Checking for tightness (daily) for leakage. Repair any leakage points immediately! Please note Air bubbles in the sample water influence the measuring accuracy. The cause must be determined and remedied. Check that there is sufficient sand in the cell body.
Page 222: Maintenance Of Flow Block Assembly Depolox
Maintenance ® Maintenance of flow block assembly DEPOLOX The cell sand required for constant cleaning of the electrodes Changing sell sand with the ® grinds itself down over time until it is very fine. It must therefore be 3-electrode cell DEPOLOX ®...
Page 223 Maintenance ® 14 Screw the cap back on (DEPOLOX 5 only). 15 Fill half a cap from the plastic bottle with cell sand and pour it into the cell body (approx. 1/2 cm³ cell sand) (see 5.3.2 “Pour ® ® in the cell sand (only with DEPOLOX 5 and DEPOLOX Pool)”).
Page 224 Maintenance ® 1 Remove cover of flow block assembly DEPOLOX Replacing electrolyte, reference electrode and diaphragms 2 Close the ball valve on the sample water inlet and on the outlet ® (DEPOLOX (pressurized version). 3 Open the drain valve and drain the cell body (hold container underneath).
Page 225 Maintenance 16 Push new diaphragms into the electrolyte container. Lightly wet the O-rings. 17 Insert the electrolyte container back into the electrode mount. Lightly wet the O-ring here as well. 18 Fill the container with fresh electrolyte (approx. 3 cm above the Filling electrolyte ®...
Page 226 Maintenance Cleaning/replacing the fine filter ® ® (DEPOLOX 5, DEPOLOX Pool, VariaSens) Please note A fine filter must only be installed when membrane sensors are employed. Please note The fine filter must be cleaned or replaced in order to protect the membrane sensor's delicate membrane against soiling or damage.
Page 227: Maintaining Membrane Sensors
Maintenance 4 Rinse the fine filter with water, replace if necessary. 5 Place the fine filter into the filter unit. Ensure that the O-ring is fitted correctly (insert as far as possible). 6 Fit the filter unit. Ensure that it is fitted in the correct position. 7 Tighten both knurled nuts (A).
Page 228: Maintaining Ph Electrode
Maintenance Maintaining pH electrode Clean and calibrate if there are fluctuations in the measured values. A routine schedule cannot be given here because the cleaning schedule depends heavily on the general condition of the sample water. In general, calibrate approx. every 4 weeks. Remove dirt on the glass membrane and diaphragm to prevent measuring errors.
Page 229: Maintaining Conductivity Electrode
Maintenance Maintaining conductivity electrode The electrode does not contain any maintenance parts. However, depending on how dirty the sample water is, the electrode can be cleaned at certain intervals. A routine schedule cannot be given here because the cleaning schedule depends heavily on the general condition of the sample water.
Page 230: Changing The Fuse On The A&C Board
Maintenance Changing the fuse on the A&C board Warning! Only authorized and qualified electricians are permitted to open the housing. The device is not equipped with a mains switch. 1 Disconnect the unit from the power supply. 2 Remove the cover of the electronic module. 3 Remove screw-in fuse holder.
Page 231: Replacing The Battery
Maintenance Replacing the battery Warning! Only authorized and qualified electricians are permitted to open the housing. The device is not equipped with a mains switch. The buffer battery is required for the real time clock in case of a power failure. If the time is not correct or if time controlled functions show faulty behavior, the battery must be changed.
Page 232 Maintenance WT.050.590.000.DE.IM.0719...
Page 233: Complete Units, Retrofit Kits And Spare Parts
Complete Units, Retrofit Kits and Spare Parts 8. Complete Units, Retrofit Kits and Spare Parts Warning! For reasons of safety, only use original spare parts. Please contact our customer service department if you need any spare parts. Part No. Complete unit W3T158815 SFC Electronic module for 100 –...
Page 234 Complete Units, Retrofit Kits and Spare Parts Part No. Complete unit W3T162665 SFC PC electronic module for 100 – 240 V, 4x relays, 1x mA output, 1x feedback input, control cabinet installation 2x mA input, 2x DI, temperature input, SD memory card with mA/V measuring module 128MB - 2 GB, RS485, CAN, 1x slot for process control W3T162666...
Page 235 Complete Units, Retrofit Kits and Spare Parts Sensor measuring module for 3-electrode cell ® DEPOLOX Pool Plug-in card with terminals, glass electrode, cleaning grit, power cable W3T170333 Sensor measuring modules ® for DEPOLOX three-electrode cell Plug-in card with terminals, cleaning grit, ®...
Page 236 Complete Units, Retrofit Kits and Spare Parts SiDiSens retrofit kit / Accessories Part No. Description SiDiSens W3T212541 SiDiSens pH Retrofit kit with SiDiSens pH incl. pH electrode, calibration solution and terminal resistor W3T180808 Top-hat rail Mounting bracket to fix the mounting set SiDiSens for SiDiSens...
Page 237 Complete Units, Retrofit Kits and Spare Parts Spare parts and consumables ® ® DEPOLOX DEPOLOX Redox Fluoride Conductivity ® DEPOLOX Pool Electrode Sensor Sensor Sensor Sensor Plug-in card Glass cleaning grit W3T169297 W3T169298 W3T172052 W3T169303 without electrode W3T158743 Process W3T172052 Control W3T158832 Electrolyte...
Page 238 Complete Units, Retrofit Kits and Spare Parts Membrane sensors Free Ozone, Total Membrane sensors chlorine FC2 selective OZ7 chlorine TC3 selective CD7 Sensor compl. with electrolyte, W3T365498 W3T164493 W3T164494 W3T391561 lapping paper Membrane cap W3T365500 W3T168103 W3T168106 W3T365500 incl. lapping paper Membrane cap, plastic W3T391564* incl.
Page 239 Complete Units, Retrofit Kits and Spare Parts SFC spare parts Part No. Description W3T166455 Spare circuit board A&C board SFC 100 – 240 V AC W3T166456 Spare circuit board A&C board SFC 24 V DC W3T166457 Spare circuit board A&C board SFCSC 100 – 240 V AC W3T166458 Spare circuit board A&C board SFCSC 24 V DC W3T162628...
Page 240 Complete Units, Retrofit Kits and Spare Parts Part No.: W3T166494 pressurized version up to 4 bar Flow rate monitoring with temperature sensor PT1000 Caution! Vertical installation! AAE1417 Multi-Sensor Pt1000 WALLACE & TIERNAN A Drain: G1/2“ union nut B Sample tap C Inlet: G1/2“...
Page 241 Complete Units, Retrofit Kits and Spare Parts Part No.: W3T163663 non-pressurized version Flow-through adapter fluoride Item Part No. Description W2T505181 PVC screw connection, DN15/d20, with O-ring W2T507048 Ball valve W2T506240 Hose bushing W3T168889 Seal W2T507524 T-piece W2T505438 Reduction W3T170971 Hexagon cap nut W3T172856 Housing W3T159710...
Page 242 Complete Units, Retrofit Kits and Spare Parts Part No.: W3T158503 pressurized version up to 6 bar Flow-through adapter conductivity Item Part No. Description W3T161463 Strainer housing W3T158502 Electrode mount W3T158501 Electrode tightening nut W3T163440 Hexagon cap nut W3T172720 O-ring W3T172556 O-ring Part No.: W3T158755 pressure-tight version Seal set for membrane...
Page 243 Complete Units, Retrofit Kits and Spare Parts ® DEPOLOX 5 retrofit set (non-pressurized version) W3T170031...
Page 244 Complete Units, Retrofit Kits and Spare Parts ® Parts list for DEPOLOX 5 non-pressurized version W3T170031 Part No. Designation W3T170031 Flow cell module, non-pressurized W3T170024 Cell body D5-DL, complete W3T166171 Drainage unit W3T158603 Non-return valve W3T163739 Valve seat complete W3T166194 Fine filter W3T166210 Electrode holder complete...
Page 245 Complete Units, Retrofit Kits and Spare Parts ® Drawing of DEPOLOX 5 non-pressurized version W3T170031...
Page 246 Complete Units, Retrofit Kits and Spare Parts ® Parts list for DEPOLOX 5 non-pressurized version W3T170031 Item Part No. Designation W3T160628 Basic housing 1,92,93 W3T164571 Basic housing, pre-assembled W3T160629 Housing cover W3T172042 Product label W2T506143 Cable clamp W3T172029 Multi sensor W3T166170 Shut-off valve W3T158593...
Page 247 Complete Units, Retrofit Kits and Spare Parts ® Retrofit set for DEPOLOX 5 (pressurized version) W3T170032...
Page 248 Complete Units, Retrofit Kits and Spare Parts ® Parts list for DEPOLOX 5 (pressurized version) W3T170032 Part No. Designation W3T170032 Flow block assembly, pressurized W3T170025 Cell body D5-DF, complete W3T166171 Drainage unit W3T158603 Non-return valve W3T163739 Valve seat complete W3T166194 Fine filter W3T166210 Electrode holder complete...
Page 249 Complete Units, Retrofit Kits and Spare Parts ® Drawing of DEPOLOX 5 (pressurized version) W3T170032...
Page 250 Complete Units, Retrofit Kits and Spare Parts ® Parts list for DEPOLOX 5 (pressurized version) W3T170032 Item Part No. Designation W3T160628 Basic housing 1,92,93 W3T164571 Basic housing, pre-assembled W3T160629 Housing cover W3T172042 Product label W2T506143 Cable clamp W3T172029 Multi sensor W3T166170 Shut-off valve W2T507615...
Page 251 Complete Units, Retrofit Kits and Spare Parts VariaSens retrofit set (non-pressurized version) W3T158742...
Page 252 Complete Units, Retrofit Kits and Spare Parts VariaSens parts list (non-pressurized version) W3T158742 Part No. Designation W3T158742 Flow cell module, non-pressurized W3T158744 Cell body VS-DL, complete W3T166171 Drainage unit W3T158603 Non-return valve W3T163739 Valve seat complete W3T166194 Fine filter W3T158747 Flow body complete W3T158746 Conversion kit D5-DL/VS-DL...
Page 253 Complete Units, Retrofit Kits and Spare Parts VariaSens drawing (non-pressurized version) W3T158742...
Page 254 Complete Units, Retrofit Kits and Spare Parts VariaSens parts list (non-pressurized version) W3T158742 Item Part No. Designation W3T160628 Basic housing 1,92,93 W3T164571 Basic housing, pre-assembled W3T160629 Housing cover W3T160908 Product label Cable clamp W2T506143 Multi sensor W3T172029 Shut-off valve W3T166170 W3T158593 Discharge nozzle W2T507615...
Page 255 Complete Units, Retrofit Kits and Spare Parts VariaSens retrofit set (pressurized version) W3T158756...
Page 256 Complete Units, Retrofit Kits and Spare Parts VariaSens parts list (pressurized version) W3T158756 Part No. Designation W3T158756 Flow block assembly, pressurized W3T158759 Cell body VS-DF, complete W3T166171 Drainage unit W3T158603 Non-return valve W3T163739 Valve seat complete W3T166194 Fine filter W3T158747 Flow body complete W3T158767 Conversion kit D5-DF/VS-DF...
Page 257 Complete Units, Retrofit Kits and Spare Parts VariaSens drawing (pressurized version) W3T158756...
Page 258 Complete Units, Retrofit Kits and Spare Parts VariaSens parts list (pressurized version) W3T158756 Item Part No. Designation W3T160628 Basic housing 1,92,93 W3T164571 Basic housing, pre-assembled W3T160629 Housing cover W3T160908 Product label W2T506143 Cable clamp W3T172029 Multi sensor W3T166170 Shut-off valve W2T507615 Flat nut W3T158560...
Page 259 Complete Units, Retrofit Kits and Spare Parts ® Ready-to-install assembly for DEPOLOX Pool W3T158598 W3T166171 W3T166173 W3T158603 W3T163739 W3T166194 W3T158599 W3T166172 W3T166171 W3T158603 W3T163739 W3T166194...
Page 260 Complete Units, Retrofit Kits and Spare Parts ® Drawing DEPOLOX Pool non-pressurized version W3T158598 WT.050.590.000.DE.IM.0719...
Page 261 Complete Units, Retrofit Kits and Spare Parts ® Parts list DEPOLOX Pool non-pressurized version Part No. W3T158598 REF: WAE4161 Item Part No. Designation W3T164571 Basic housing, pre-assembled W2T507548 Type plate W3T160629 Housing cover W3T172038 Product label W2T506143 Cable clamp W3T172029 Multi sensor W3T166170 Shut-off valve...
Page 262 Complete Units, Retrofit Kits and Spare Parts Pre-assembled component groups Item Part No. Designation W3T166173 Cell body, complete consisting of: Items 10-25, 46-47, 83-86 W3T158603 Non-return valve consisting of: Items 26, 28-33, 50, 80 W3T166171 Drainage unit consisting of: Items 39-45, W3T166194 Fine filter consisting of: Items 33-34...
Page 263 Complete Units, Retrofit Kits and Spare Parts ® Drawing of DEPOLOX Pool pressurized version W3T158599...
Page 264 Complete Units, Retrofit Kits and Spare Parts ® Parts list DEPOLOX Pool non-pressurized version Part No. W3T158599 REF: WAE4162 Item Part No. Designation Basic housing, pre-assembled W3T164571 W2T507548 Type plate W3T160629 Housing cover W3T172038 Product label W2T506143 Cable clamp Multi sensor W3T172029 Shut-off valve W3T166170...
Page 265 Complete Units, Retrofit Kits and Spare Parts Pre-assembled component groups Item Part No. Designation W3T166172 Cell body, complete consisting of: Items 10-25, 46-49, 55, 83 W3T158603 Non-return valve consisting of: Items 26, 28-33, 50, 80 W3T166171 Drainage unit consisting of: Items 39-45, W3T166194 Fine filter consisting of: Items 33-34...
Page 266 Complete Units, Retrofit Kits and Spare Parts WT.050.590.000.DE.IM.0719...
Page 267: Wiring Diagrams
03.04.12 Date 24.10.07 Design Center LAE5900.010 13.05.14 Drawn Prod. / Sales LAE6647 03.11.16 Date Date LAE7029.002 03.07.19 Checked release Issue Revision Date Name Norm Urspr. Ers. f. Ers. d. Project Evoqua Water Technologies GmbH order number Drawing number Sheet 7593...
Page 268 Date 24.10.07 Design Center LAE5900.010 13.05.14 Drawn Prod. / Sales LAE6647 03.11.16 Date Date LAE7029.002 03.07.19 Checked release Issue Revision Date Name Norm Urspr. Ers. f. Ers. d. Project Evoqua Water Technologies GmbH order number Drawing number Sheet 7593 WT.050.590.000.DE.IM.0719...
Page 269 03.04.12 Date 24.10.07 Design Center LAE5900.010 13.05.14 Drawn Prod. / Sales LAE6647 03.11.16 Date Date LAE7029.002 03.07.19 Checked release Issue Revision Date Name Norm Urspr. Ers. f. Ers. d. Project Evoqua Water Technologies GmbH order number Drawing number Sheet 7593...
Page 270 Date 24.10.07 Design Center LAE5900.010 13.05.14 Drawn Prod. / Sales LAE6647 03.11.16 Date Date LAE7029.002 03.07.19 Checked release Issue Revision Date Name Norm Urspr. Ers. f. Ers. d. Project Evoqua Water Technologies GmbH order number Drawing number Sheet 7593 WT.050.590.000.DE.IM.0719...
Page 271 03.04.12 Date 24.10.07 Design Center LAE5900.010 13.05.14 Drawn Prod. / Sales LAE6647 03.11.16 Date Date LAE7029.002 03.07.19 Checked release Issue Revision Date Name Norm Urspr. Ers. f. Ers. d. Project Evoqua Water Technologies GmbH order number Drawing number Sheet 7593...
Page 272 Date 24.10.07 Design Center LAE5900.010 13.05.14 Drawn Prod. / Sales LAE6647 03.11.16 Date Date LAE7029.002 03.07.19 Checked release Issue Revision Date Name Norm Urspr. Ers. f. Ers. d. Project Evoqua Water Technologies GmbH order number Drawing number Sheet 7593 WT.050.590.000.DE.IM.0719...
Page 273: 10.Declarations And Certificates
Declarations and certificates 10.Declarations and certificates 10.1 Declaration of Conformity...
Page 274 Declarations and certificates WT.050.590.000.DE.IM.0719...
Page 275: Certificate Of Compliance
Declarations and certificates 10.2 Certificate of Compliance...
Page 276 Declarations and certificates WT.050.590.000.DE.IM.0719...
Page 277: 11.Settings Table
Settings Table 11.Settings Table Please note This settings table shows all of the settings available in SFC. Depending on the application selected and the sensor measuring modules fitted, various menu items, menu parameters and setting parameters may be hidden. Cross out any that are not applicable. Make a note of your settings here.
Page 278 Settings Table Setting parameters Menu Menu parameters Commissioning (factory setting) Setup Flow source Flow measurement Flow dirtect ion direct Control Input 2 Input direction direct Control direct direct X factor Ymin Ymax 100 % Parameter 1,0 % Tkonst 1min00s Tvar 00min30s Max.
Page 279 Settings Table Setting parameters Menu Menu parameters Commissioning (factory setting) mA/V Sensor name “_ _ _ _“ Format 000.0 Upot 250 mV µA measuring Select the µA signal range measuring range for 3-electrode cells and membrane sensors: 100 µA for Micro 2000 and Deox 2000: 100 µA Signal Cl free...
Page 280 Settings Table Setting parameters Menu Menu parameters Commissioning (factory setting) Module type 2 Actuator Control output Dosing pump 2P Hysteresis min. ON 10min00s Setup Control direction direct Measuring range Range start 4.00 Range end 9.00 Limit value Hysteresis Setting parameters Menu Menu parameters Commissioning...
Page 281 Settings Table Setting parameters Menu Menu parameters Commissioning (factory setting) Input/Output Flow rateWq Signal 0 – 20 mA Factor Format 0000 Unit Range start 000.0 % Range end 100.0 % Flow limit values 20 % 80 % Hysteresis 0.5 % ext.
Page 282 Settings Table Setting parameters Menu Menu parameters Commissioning (factory setting) Alarm Alarm 1 function N.O. unlatched Alarm 1 delay 00h00min00s Alarm 2 function N.O. unlatched Alarm 2 delay 00h00min00s Alarm 3 function N.O. unlatched Alarm 3 delay 00h00min00s Alarm 4 function N.O.
Page 283 Settings Table Setting parameters Menu Menu parameters Commissioning (factory setting) System General Time (hh:mm) current time Date (tt.mm.jj) current date Measure. filter Hold Function Language English System name SFC-PC Brightness Max 50 % Brightness Min 10 % Configuration Save Config 1 Restore Config 1 Copy...
Page 284 Settings Table WT.050.590.000.DE.IM.0719...
Page 285: 12.Index
Index 12.Index Fitting the fine filter 147 Adaption program 43 Flow rate direction 87 Alarms 95 Flow rate source 87 Arrangement of the plug-in card and cable 137 Fluoride Measurement 52 Free chlorine FC1 membrane sensor 63 Functions 41 Cable extension 136 Calibration Combined chlorine 205 General Functions 41...
Page 286 Index Smooth switching 199 Opening the housing 119 Softkeys 159 Operator Controls 162 Standard values 189 Overall Function 42 Storage 119 Switching on 150 System restart 189 System shut down 155 Password 163 pH calibration 207 pH measurement 50 PI shutdown 88 T 89 Tconst 89 Temperature measurement 117...
Page 287 ® Wallace & Tiernan Products worldwide Australia Canada China +61 1300 661 809 +1 905 944 2800 +86 21 5118 3777 info.au@evoqua.com wtoe.can@evoqua.com sales.cn@evoqua.com France Germany Singapore +33 1 41 15 92 20 +49 8221 9040 +65 6559 2600 wtfra@evoqua.com wtger@evoqua.com...
Page 288 Evoqua assumes no responsibility for the completeness of this information. Users are responsible for making sure that the product is suitable for specific applications. Evoqua assumes no liability for specific or indirect damage or consequential damage arising from the sale, resale or misuse of its products.

Evoqua WALLACE & TIERNAN SFC Original Instruction Manual

1 Introduction

2 Safety

3 Description

4 Functions

5 Installation

6 Operation

7 Maintenance

8 Complete Units, Retrofit Kits and Spare Parts

9 Wiring Diagrams

10 Declarations and Certificates

11 Settings Table

12 Index

Quick Links

Need help?

Questions and answers

Related Manuals for Evoqua WALLACE & TIERNAN SFC

Summary of Contents for Evoqua WALLACE & TIERNAN SFC

Table of Contents
