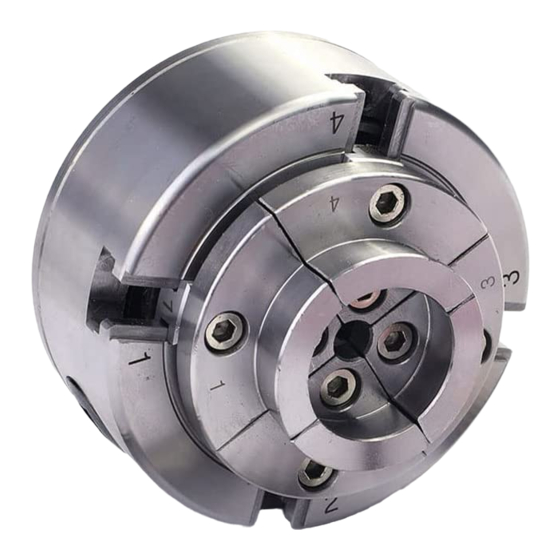

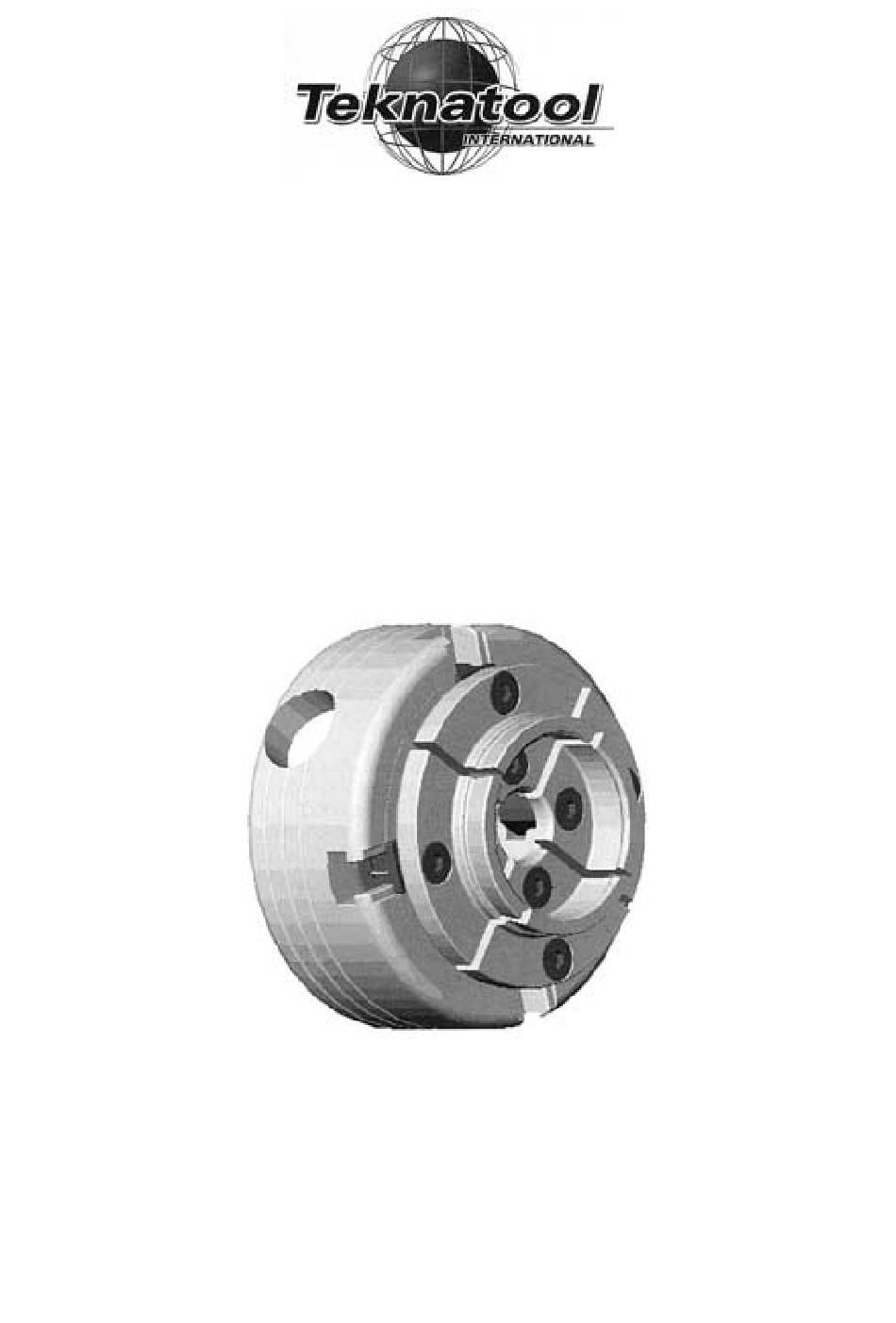

SuperNova
™
Geared Chuck
Manual
READ THIS MANUAL CAREFULLY AND
BECOME THOROUGHLY FAMILIAR WITH
CHUCK OPERATIONS BEFORE USE
Teknatool International Ltd
65 The Concourse, Henderson, Auckland, New Zealand
Website: www.teknatool.com
Email: sales@teknatool.com
Phone: 0064-9-837 6900
Fax: 0064-9-837 6901
© Copyright Teknatool International 2000, 2003
Teknatool Publication No. 95-0324-005
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teknatool SuperNova
Summary of Contents for Teknatool SuperNova
- Page 1 READ THIS MANUAL CAREFULLY AND BECOME THOROUGHLY FAMILIAR WITH CHUCK OPERATIONS BEFORE USE Teknatool International Ltd 65 The Concourse, Henderson, Auckland, New Zealand Website: www.teknatool.com Email: sales@teknatool.com Phone: 0064-9-837 6900 Fax: 0064-9-837 6901 © Copyright Teknatool International 2000, 2003 Teknatool Publication No. 95-0324-005...
-
Page 2: Table Of Contents
As a valued customer, we would be pleased to hear from you and how you found your SuperNova. Any comments on the chuck or accessory ideas would be very welcome so that we can continue to offer what we believe is the best woodturning chucking system available. -
Page 3: Safety Rules
As with other chucking methods, an extremely cautious and sensible approach is necessary. With the SuperNova Chuck it is not possible to give exact directions as to the amount of tightening pressure required for workholding. Follow closely strict guidelines in this manual for different jaw types on wood blank diameters and length, plus turning speed. -
Page 4: Supernova Models
Standard Accessory Kit: 1x M6 Grubscrew, 2 x Fibre washers, 1 x pinion handle, 8 x M6x10 Jaws screws, 1 x Woodworm screw, 1 x 50mm jaw set, 1 x M4 Allen key 1 x M3 Allen key, SuperNova Chuck Manual. -
Page 6: Mounting Chuck On Lathe
MOUNTING CHUCK ON LATHE There are two versions of the SuperNova Chuck: an insert version for all threads up to 27mm (1 1/8”) and threaded versions for dedicated threads up to 38mm (1 1/2”). CORRECT MOUNTING OF CHUCK TO INSERT (WITH INSERT VERSION) AND LATHE SPINDLE IS VERY IMPORTANT TO ACHIEVE ACCURACY. - Page 7 FITTING CHUCK TO LATHE: Correct fitting of chuck to lathe spindle is important to ensure accuracy. The chuck body must contact an accurate shoulder on the lathe spindle or bearings (as on Teknatool Nova 3000) to ensure chuck will run true.
-
Page 8: Maintenance, Stop On Jaw Travel, Jaw Slides, Insertion Of Jaw Slides
MAINTENANCE CLEANING CHUCK: Inspect chuck periodically for buildup of wood dust inside scroll and cavity of chuck body. Wood dust build up can make the jaws difficult to move. To clean out the wood dust build up, the following method can be used. Remove Jaw Slides. (First removing stop screw as explained in previous section) then using a piece of wood (match stick size) insert in the bottom of scroll and rotate scroll ring. -
Page 9: Mounting 50Mm Jaws, Operating Modes
MOUNTING 50mm JAWS In line with The standard SuperNova Chuck is provided with 50mm adjacent Jaws add-on jaws. They need to be located and screwed on to the jaw slides of the chuck. The same procedure outlined below must be followed for all accessory jaws as well. -
Page 10: Dovetail Operation, Forming Recess
PREPARATION: The 10.5mm thread requires a drilled hole about 8mm (5/16”) in diameter. The screw has considerable holding power and it is sometimes difficult to unscrew, so wax or oil the thread before mounting the wood. CARE: The threads are fine and can be damaged by mishandling. DON’T hammer into wood! DO screw into a pre-drilled hole. -
Page 11: Spigot Operation
Before scraping out the recess, slightly hollow out the centre of the bowl blank with a bowl gouge or round nose scraper. The purpose is to relieve the centre so that when the recess is scraped out only half the chisel edge needs to be used. We recommend this to reduce tearing of the wood by scraping action;... -
Page 12: Trouble Shooting Guide
Make sure the bottom of the recess is flat and square to face. See mounting dovetail operation Page 10. Check that the bowl is not incorrectly riding on the flat shoulder of jaws behind the dovetail. Extra Support is available on our Website! Go to www.teknatool.com or email service@teknatool.com... -
Page 13: Optional Accessories
SUPERNOVA and NOVA CHUCK OPTIONAL ACCESSORIES The SuperNova Chuck is one of the most versatile chucking systems. It is fully compatible with the Nova Chuck and shares the same extensive accessory range. You can use all the accessories on either your SuperNova chuck or on your Nova Chuck. - Page 14 This spur is the answer for turners who use their SuperNova almost all of the time but want to be able to do those odd spindle jobs without removing the chuck from the lathe.
-
Page 15: Warranty
WARRANTY DATE PURCHASED ..............(To be completed by Sales Outlet). This Teknatool Product is backed by a warranty period of twenty four months from the date of purchase. Teknatool International hereby agrees to make repairs or replace components without charge for any defects due to faulty material or workmanship, provided that 1. - Page 16 Teknatool International Ltd 65 The Concourse, Henderson, Auckland, New Zealand Phone: 0064-9-837 6900 Fax: 0064-9-837 6901 www.teknatool.com Patent Application 314589 Reordering Manual Part No. 23004...
