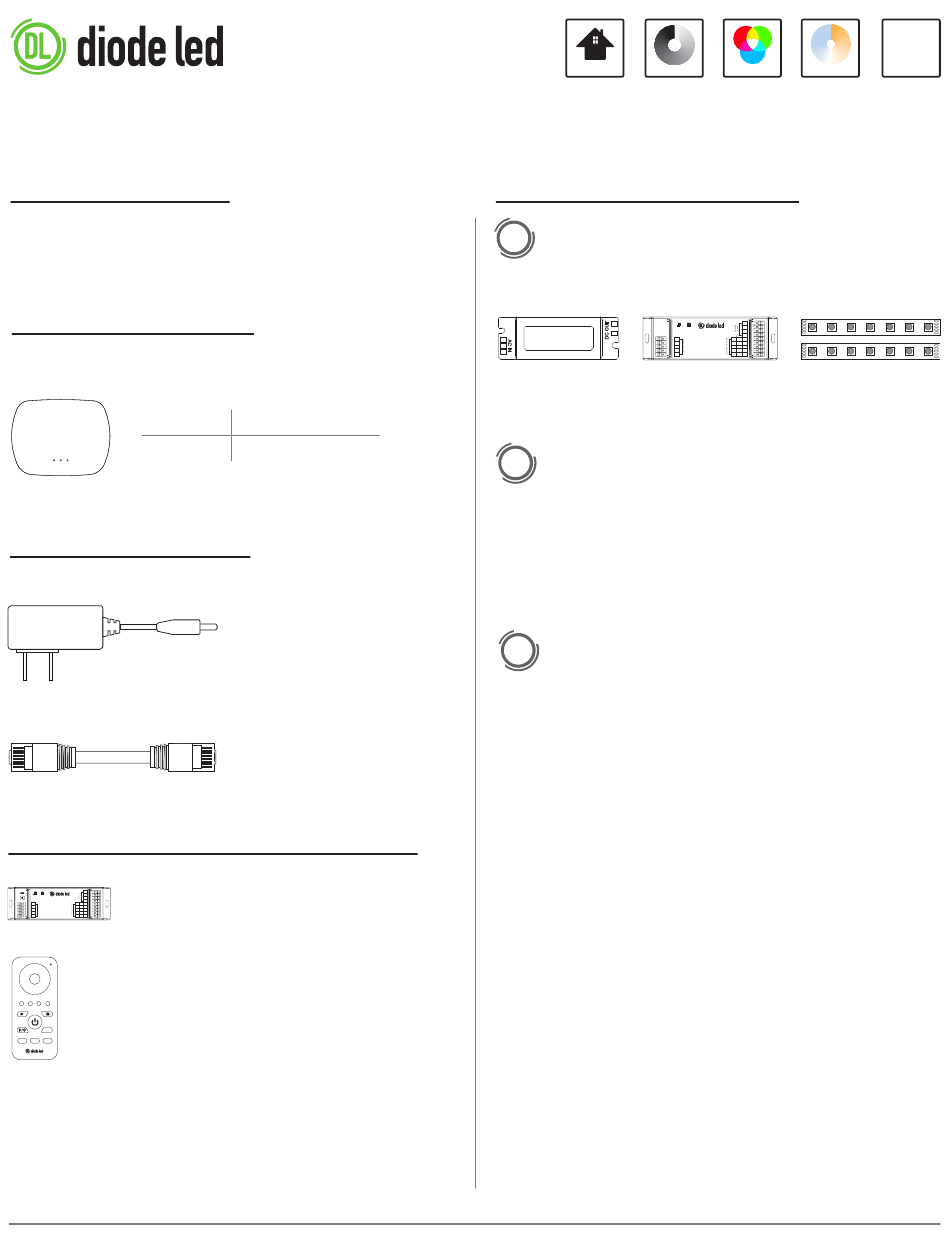

DIODE LED TOUCHDIAL DI-WIFI-RF-TRMS Installation Manual

TOUCHDIAL
™
SAFETY & WARNINGS
1. This product is rated for indoor installation and is not protected
against moisture.
2. Do not modify product beyond instructions or warranty will be void.
QUICK SPECS / MODELS
DI-WIFI-RF-TRMS
Input
5VDC
SUPPLIED ACCESSORIES
5VDC Adapter
72 in. CAT5 Cable
ADDITIONAL TOUCHDIAL COMPONENTS
DI-RF-REC-CV-A
V−
®
V−
MASTER SLAVE
V+
TOUCHDIAL ™ Receiver
LEARNING KEY
V+
TOUCHDIAL Receiver
GND V+ V+ V+
D1+ W WW R
D1─ W CW G
D2+ W WW B
D2─ W CW W
W
DI-RF-REM-RGBW-4
1 2 3 4
TOUCHDIAL RGB/RGBW 4-Zone Remote Control
W+
S1 S2 S3
®
WiFi Hub INSTALLATION GUIDE
TOUCHDIAL
™
®
WiFi Hub
Operating Frequency
868 MHz
DRY LOCATION
INSTALLATION INSTRUCTIONS
1
INSTALL TOUCHDIAL RECEIVER(S)
Refer to TOUCHDIAL Receiver Installation Guide.
V+
V−
L
N
GND
LED Driver
2

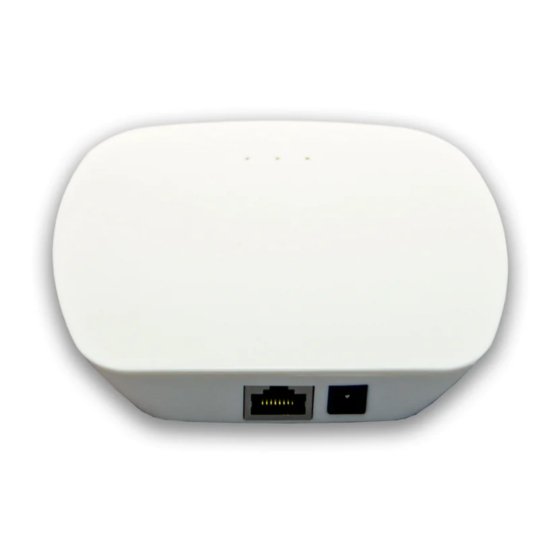

INSTALL WIFI HUB
See SYSTEM DIAGRAMS 1. & 2. for images.
a. Plug included 5VDC adapter jack into electrical receptacle
and WiFi Hub.
b. Connect WiFi Hub to home router Ethernet port with CAT5
cable (only when controlling via home network WiFi).
3
CONNECT TO WIFI NETWORK
1. Connect mobile device to home network router:
a. Go to WiFi settings in mobile device. Connect to home
WiFi network that is connected to TOUCHDIAL WiFi Hub
via ethernet cable.
OR
2. Connect mobile device directly to WiFi Hub (standalone
WiFi Network):
a. Go to WiFi settings in mobile device.
b. Connect to network 'Easyltng_**'
** indicates different numeric values
1 OF 2
DIMMABLE COLOR-CHANGING ADJUSTABLE KELVIN
INSTALLATION GUIDE
V−
®
V−
RECEIVER REPEATER
TOUCHDIAL V+
™ Receiver
LEARNING KEY
V+
V+ V+ V+
GND
D1+ W WW R
D1─ W CW G
D2+ W WW B
D2─ W CW W
TOUCHDIAL Receiver
5V
DC
LED Luminaire
