Summary of Contents for MetalCraft Docks PWC LIFT

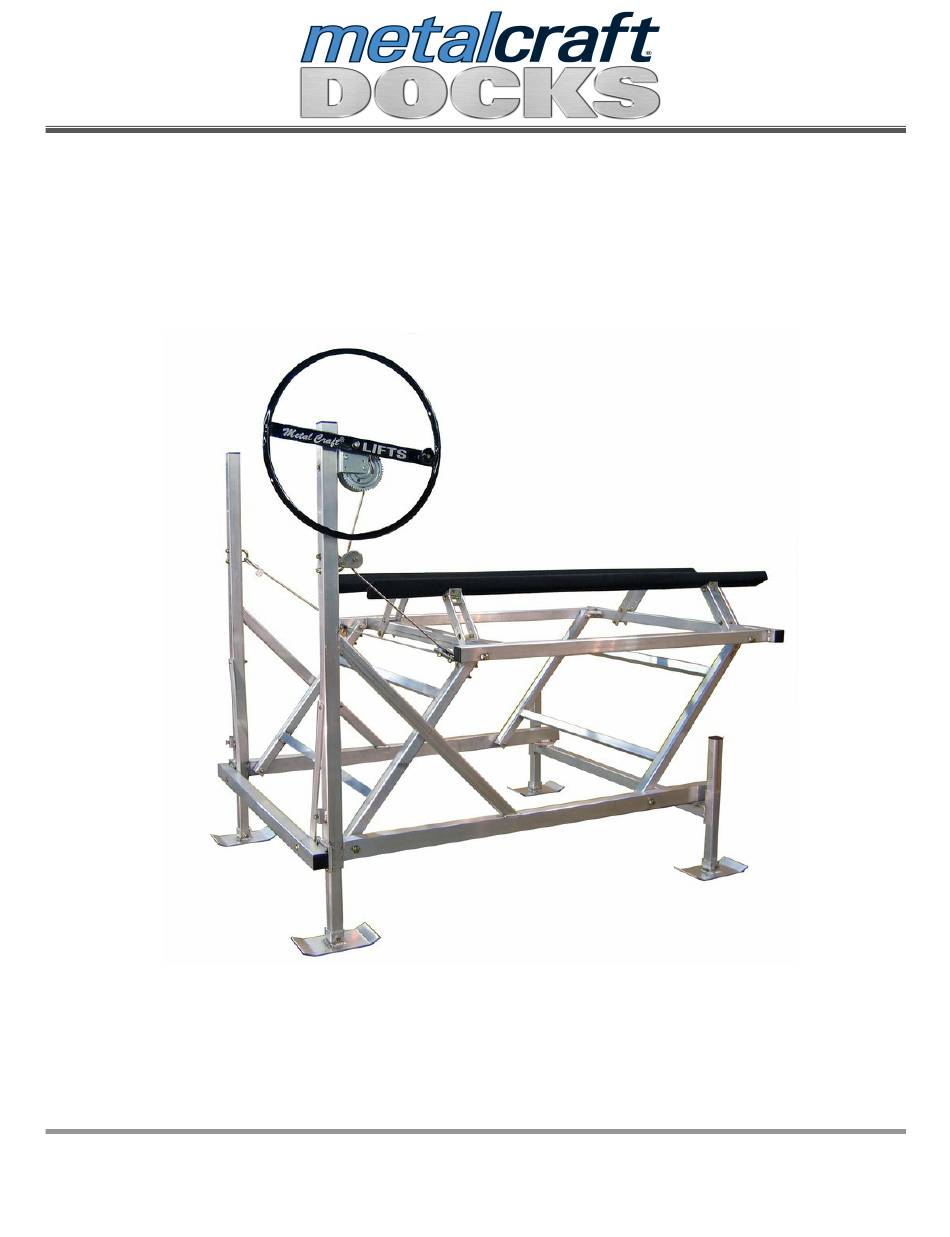

- Page 1 Assembly and Installation Manual Model 1200-056 PWC LIFT MCD p/n 1230-01 156 Burton Street Painesville, Ohio 1.800.989.DOCKS (3625) ● ● ● 440.286.7135 Fax: 440.286.7134 info@metalcraftdocks.com www.metalcraftdocks.com ● ● ● (Rev 4.2018)
-
Page 2: Parts Description
1. Check the following parts to ensure you have all the items necessary to assemble your new Metal Craft PWC LIFT: Qty. Part No. Weight Packed Neede 1235-01 PWC Lift Parts Box, Sealed (1200-056). 47 lbs. 3760-03 26” Winch Wheel, Black, Boxed 10 lbs. 1240-01 Lift Side / Post Assembly, Left (1200-056). 20 lbs. - Page 3 3. Check the Fasteners Kit (sealed plastic bag) and identify the following items: Part Description Used Needed 3700-01 3/8-16" x 1" Hex Head C/S (ZY) (8) Front; (4) Rear Frame 3700-07 3/8-16" x 3-1/4" Hex Head C/S ZY (2) Gusset Brace x 2; (2) Winch; 3700-08 3/8-16"...
- Page 4 B. Assembly Instructions Step #1 - Bolt the following Frame items together: 1240-01 Lift Side / Post Assembly, Left (1200-056). 1245-01 Lift Side / Post Assembly, Right (1200-056). 1250-01 Frame Assembly, Base, Front (1200-056). With these fasteners: 3700-01 3/8-16" x 1" Hex Head C/S (ZY) 0076-18 3/8-16"...
- Page 5 Step #5 - Install the two Post Gusset Braces: 1280-01 2” x 1/4” x 23-1/2”L Punched, Flat Gusset Brace (1200-056). Position with one end to upright Post and other to Frame Base. Use these fasteners: 3700-07 3/8-16" x 3-1/4" Hex Head C/S ZY 0076-18 3/8-16"...
- Page 6 Step #6 - Install the bottom of the Front Cantilever Post Frame: 1260-01 Cantilever Post Frame, 36”H, Front (1200-056). Position with drilled U-Bolt holes at top. Use these fasteners: 3706-06 1/2-13" x 5-3/4" Hex Head C/S ZY 3706-08 1/2-13" Nylon Insert Locknut ZY Do not tighten Bolts -- leave loose until Lift is fully assembled.
- Page 7 Step #10 - Install the following two Pulleys with Chain Link on the short U-Bolts: 1005-02 PWC Med. Pulley, with Chain Link. 0076-18 3/8-16" Serrated Flange Nut SS 3700-15 3/8" USS Flat washer ZY 3709-02 Round U-Bolt, 3/8-16"x3-1/4"Lx1-3/4"IDx1-1/2"T ZY onto the front face of the Front Cantilever Post Frame. 1260-01 Cantilever Post Frame, 36”H, Front (1200-056).
- Page 8 Step #13 - Install the Winch: 3755-02 DLB1200A Dutton-Lainson Winch w/o Handle, w/Manual. 3700-07 3/8-16" x 3-1/4" Hex Head C/S ZY 0076-18 3/8-16" Serrated Flange Nut SS 3700-15 3/8" USS Flat washer ZY onto the rear face of the Left Post Assembly, at the top, facing the rear of the lift. 1240-01 Lift Side / Post Assembly, Left (1200-056).
- Page 9 Step #17 - Install Bunks using the following parts: 1220-01 2” x 1/4” x 12” Punched Bunk Plates (1200-056). 1275-01 7’L Black Carpeted 2”x4” Bunks w/4 Installed Aluminum Brackets (1200-056). 3700-08 3/8-16" x 3-1/2" Hex Head C/S ZY 0076-18 3/8-16" Serrated Flange Nut SS 3700-15 3/8"...
- Page 10 Step #19 - Install the Labels. 1215-01 Decals, Sealed Package (1200-056). 1 - #3768-02 1200 lb. Lifting Capacity 1 - #3769-01 Safety Guide 2 - #3769-03 Caution Pinch Point 1 - #3770-02 MCD Model 1200-056 Place the “Lifting Capacity”, “Safety Guide” and “MCD Model” labels on post close to Winch.
