Summary of Contents for Restoration Hardware GRAFTON

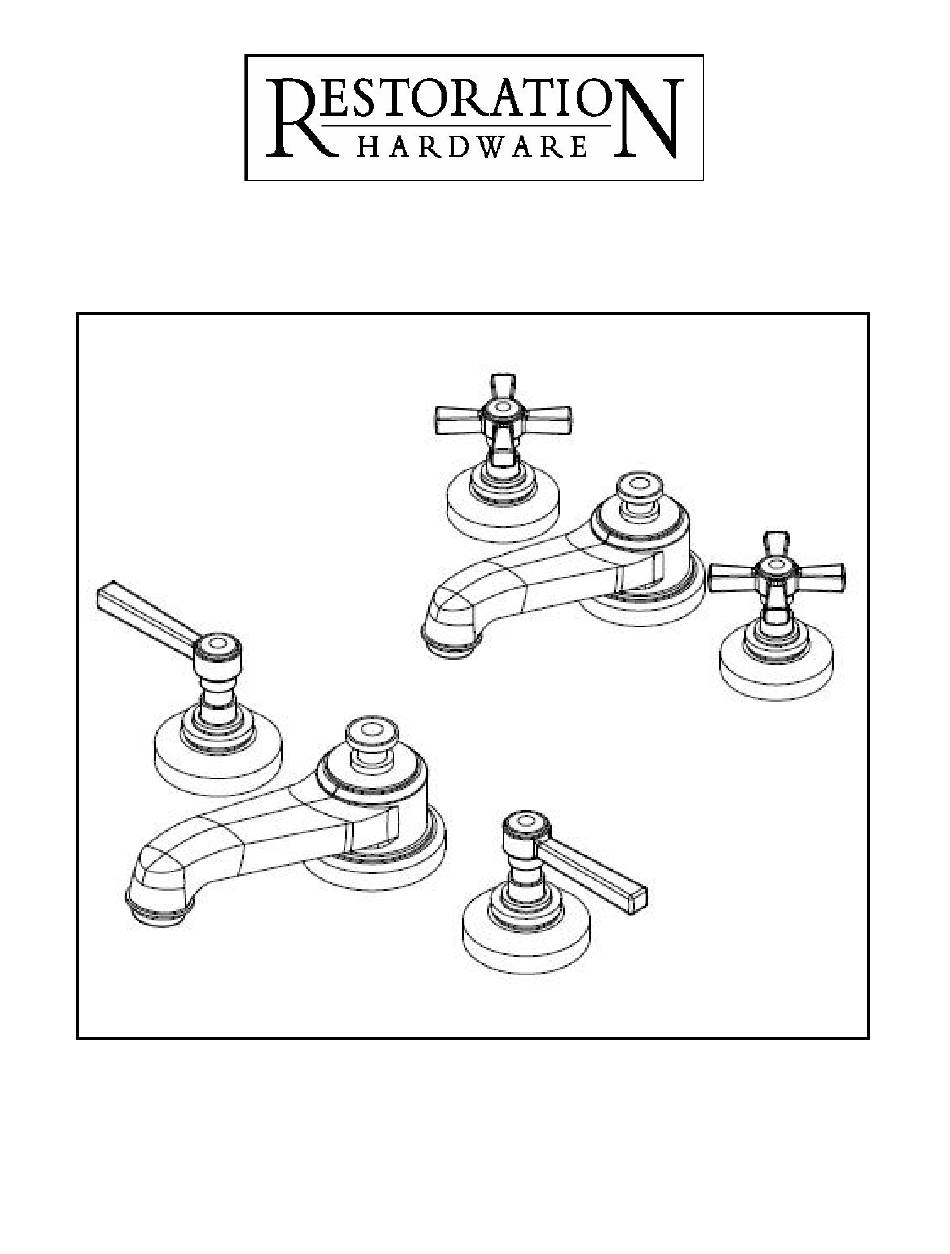

- Page 1 INSTALLATION INSTRUCTIONS RH-5100 RH-5100L MODEL: GRAFTON RH-5100 RH-5100L REV.B...
- Page 2 Restoration Hardware Faucet Product Size Specification Diagram Recommended Deck Hole Size 1-3/8” Diameter Dimensions are in Inches and Approximation of a Typical Installation RH-5100 REV. B Technical support: 1-866-417-5207 Customer Service: 1-877-747-4671...
- Page 3 Common tools needed: Adjustable Plumbers Pipe Assorted Thread Wrench Putty Cutter Screwdrivers Sealant Installation Instructions We Recommend Installation by a Licensed Plumbing Professional Spout Assembly Insert SPOUT HOSES (3) and MOUNTING STUD(6) through BASE RING (2) and sink hole, (apply putty or silicone to underside of RING (2)).
- Page 4 Valve Assembly Place flange NUT (1) and fiber WASHER (2) onto 2” valve BODY (3). Insert valve BODY (3) through sink hole from under- side of sink. Valve BODY (3) should extend 2” above mounting surface. If necessary adjust lower flange NUT (1).
- Page 5 Make Water Supply Connections NOTE: SUPPLY RISERS MUST BE PURCHASED SEPARATELY Connect water supply to VALVE BODIES(1, 1A) with one of the three following types of risers: 1/2” IPS FLEXIBLE RISER (2), discard RUBBER NOSECONE (7), FRICTION WASHER (3) and COUPLING NUT (4).
- Page 6 Install Handles Turn VALVE STEM (6) to OFF position. Place ESCUTCHEON (5) onto VALVE STEM (6) and thread BONNET (4) until snug against ESCUTCHEON (5). Place HANDLE (3) onto VALVE STEM (6). Check alignment, if necessary reposition handle on stem or rotate body for proper alignment.
- Page 7 Install Pop- up Drain Attach POP- UP KNOB (1) onto POP- UP ROD (2) and insert through hole on SPOUT (3). Place DRAIN FLANGE (5) with WHITE WASHER (6) in place through sink drain hole. Note: putty or silicone may be used instead of WHITE WASHER (6).
- Page 8 Care and Cleaning The lustrous finish on your Restoration Hardware Bathware fixture should be treated with care. Improper handling or cleaning can damage the surface of any metal finish. Use a soft cloth to wipe clean. Avoid harsh abrasive cleaner. Water contains lime and other mineral deposits that will be left on the surface after the water has evaporated.
