Page 1

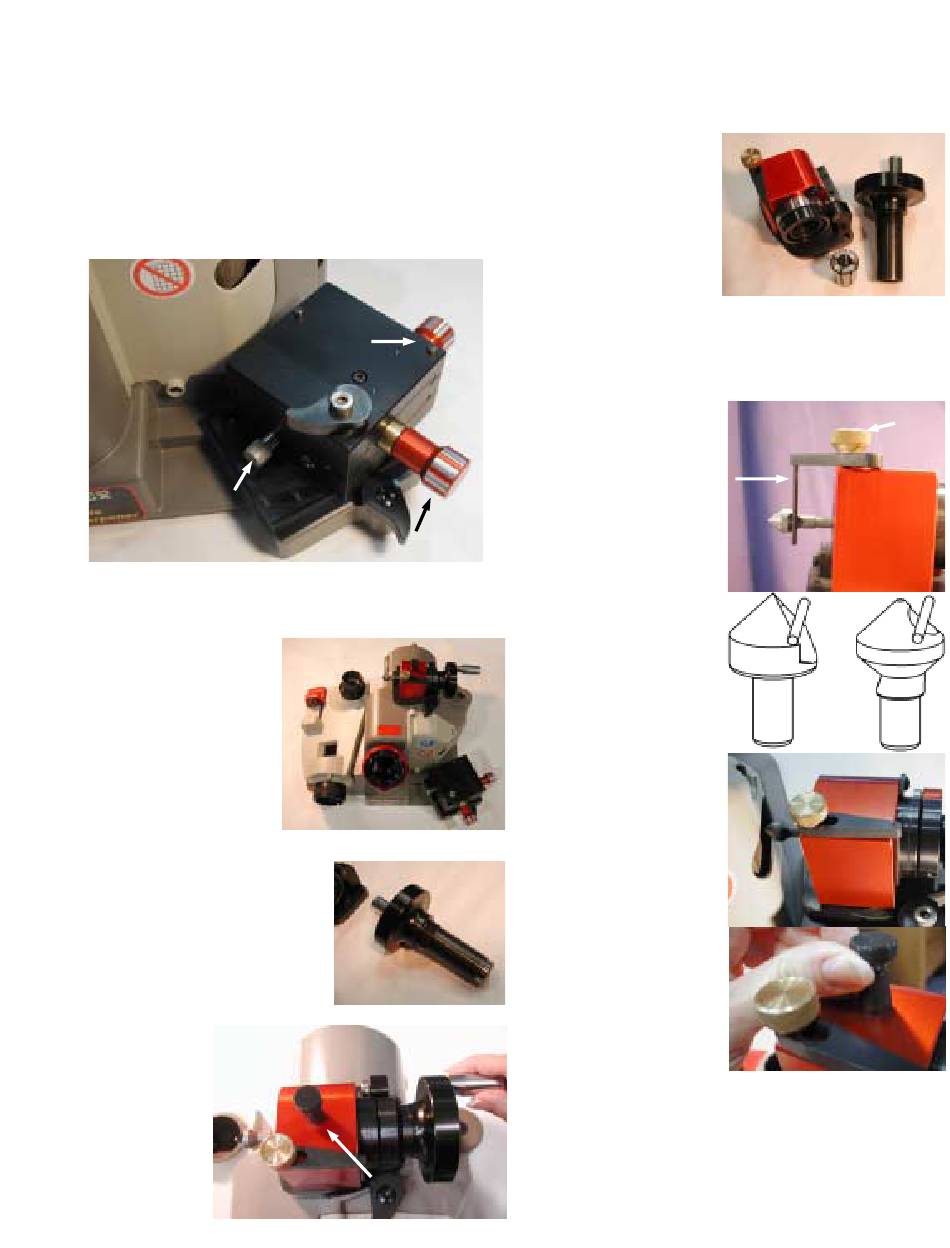

XT-3000 Countersink Attachment. This fixture Draw Tube assembly. comes with 2 V-40 double angle collets and is Place the correct collet used in conjunction with the Darex XT-3000 X-Y in the end of the Draw Attachment. Tube and replace the...
Page 2
To sharpen the tool, determine which angle the grinding wheel. Loosen the Docking Lever and tool will be sharpened at. To adjust the X-Y table, return the Countersink Assembly to the top of the loosen the Pivot Lock Knob and swing the table to XT-3000 to remove the cutter.
