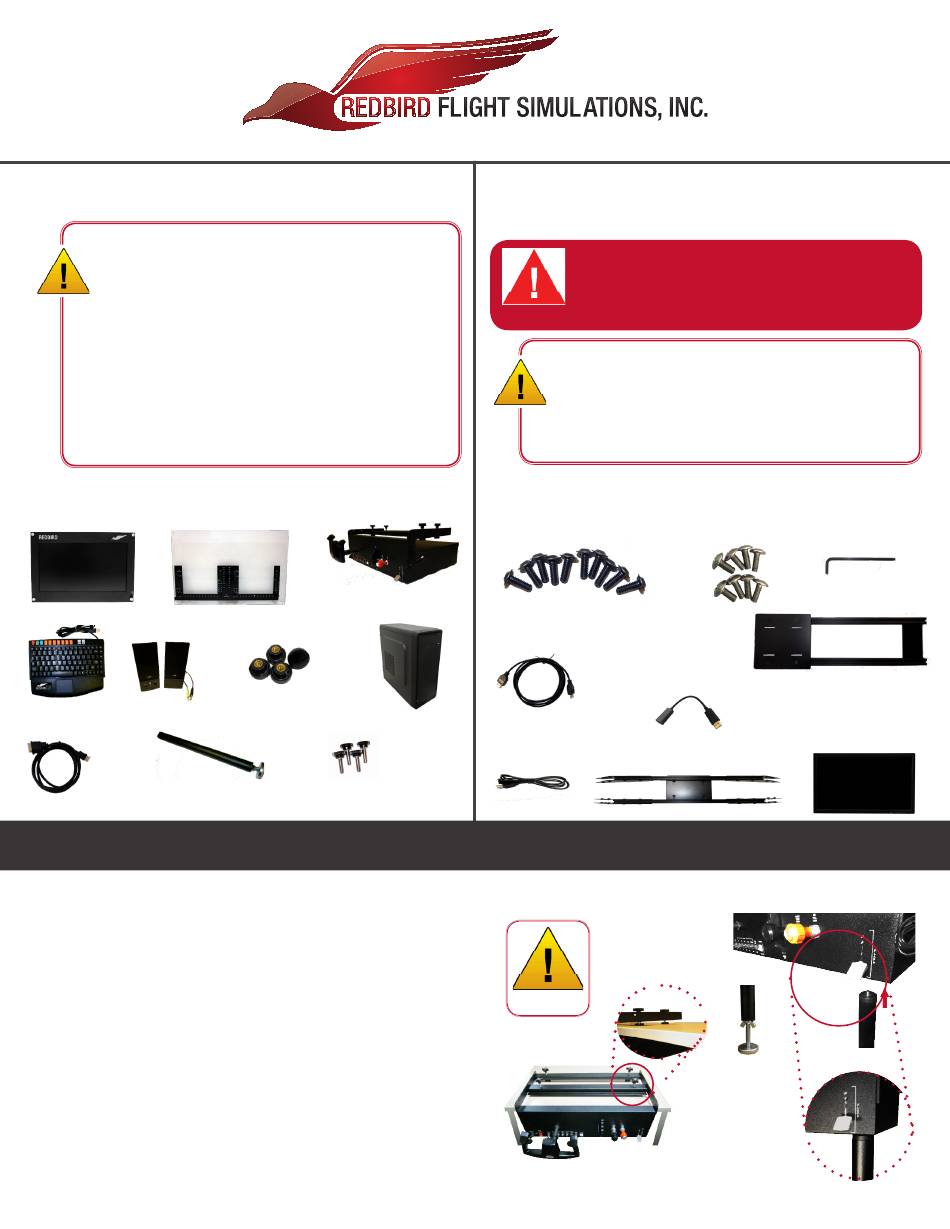

Redbird TD Quick Start Manual

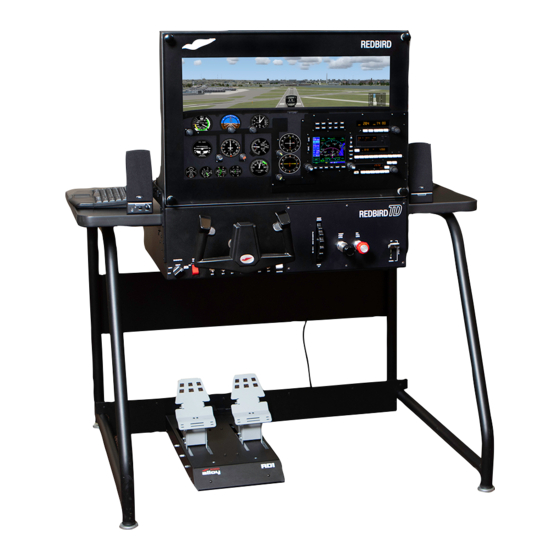

CONGRATULATIONS ON PURCHASING YOUR REDBIRD TD/TD2!
READ THIS GUIDE TO GET STARTED.
THINGS TO KNOW PRIOR TO INSTALLATION
You will need a sturdy, solid table with a maximum tabletop thickness of
2.25" including rails and the underlying structure.
There must be at least 29" between the legs.
If you are not installing your TD/TD2 on the optional Redbird TD Table, you
must install the adjustable supporting leg.
No tools are required for installation. The assembly is performed by hand-
tightening only. The use of tools may lead to damage.
Lift all items from both sides using correct lifting techniques. Seek
assistance when lifting larger items.
Retain all original packaging and shipping materials.
Any unauthorized software on your Redbird TD/TD2 is prohibited and will
void your warranty.
What's in the TD/TD2 Boxes
Acrylic Panel
Monitor
Speakers
Keyboard
Adjustable Supporting Leg
DVI-D to HDMI Video Cable (1)
STEP 1: Position the Lower Switch Panel and Install the Adjustable Supporting Leg
Lower Switch Panel
• Slide the Lower Switch Panel onto the table. (See Fig. 1)
• Hand-tighten the (4) thumbscrews to ensure secure clamping of the
Lower Switch Panel to tabletop. The panel should be firmly secured and
fixed in place. Tighten only as much as is needed to prevent movement.
Do not over-tighten as this may cause damage.
Install the Adjustable Supporting Leg
• Not required if installed on optional Redbird TD Table.
• Position the Adjustable Supporting Leg under the threaded opening at
the bottom right hand corner of the Lower Switch Panel. (See Fig. 2)
• Hand-tighten the leg so that it is fully secured to the Lower Switch Panel.
• To adjust the Adjustable Supporting Leg height, twist the lower portion
of the leg until the foot pad has reached the floor. Hand-tighten the wing
nut to secure the leg. (See Fig. 3)
Lower Switch Panel
Panel Thumbscrews
Computer
Thumbscrews
INSTALLATION PROCESS BEGINS HERE
IF YOU PURCHASED THE OPTIONAL REDBIRD TD/TD2
3-SCREEN EXPANSION KIT
THIS SIDE OF THE GUIDE PERTAINS TO IT.
Important Safety Notice:
Due to the added weight of the additional monitors, the
3-monitor upgrade must be installed on a Redbird TD table
or a Redbird TD Platform.
THINGS TO KNOW PRIOR TO INSTALLATION
Requires the new TD/TD2 monitor setup with removable acrylic panels.
Requires two (2) people to assemble.
Requires a #2 Phillips screwdriver. (Not included)
Unit requires 4 outlets - a power strip may be required. (Not included)
What's in the Expansion Box
A - Support Screws (10)
(1/4-20 x 3/4")
D - HDMI to HDMI Video Cable (2)
J - HDMI to DP Adaptor
G - Monitor Power Cables (2) H - Support Block (1)
Do Not Use Tools
Hand-tighten Only
Fig. 1
B - Monitor Screws (8)
C - 5-32" Allen Wrench (1)
F - Monitor Wing Support Brackets (2)
I - Monitor (2)
Fig.3*
Fig. 2
