Aqua STANDARD Series Installation And Maintenance Manual

Halogen bulb

Hide thumbs

MANUALE DI INSTALLAZIONE E MANUTENZIONE

INSTALLATION AND MAINTENANCE MANUAL

MANUEL D'INSTALLATION ET D'ENTRETIEN

EINBAU-UND BETRIEBSANLEITUNG

MANUAL DE INSTALACIÓN Y MANTENIMIENTO

"STANDARD"

SERIE

Halogen bulb

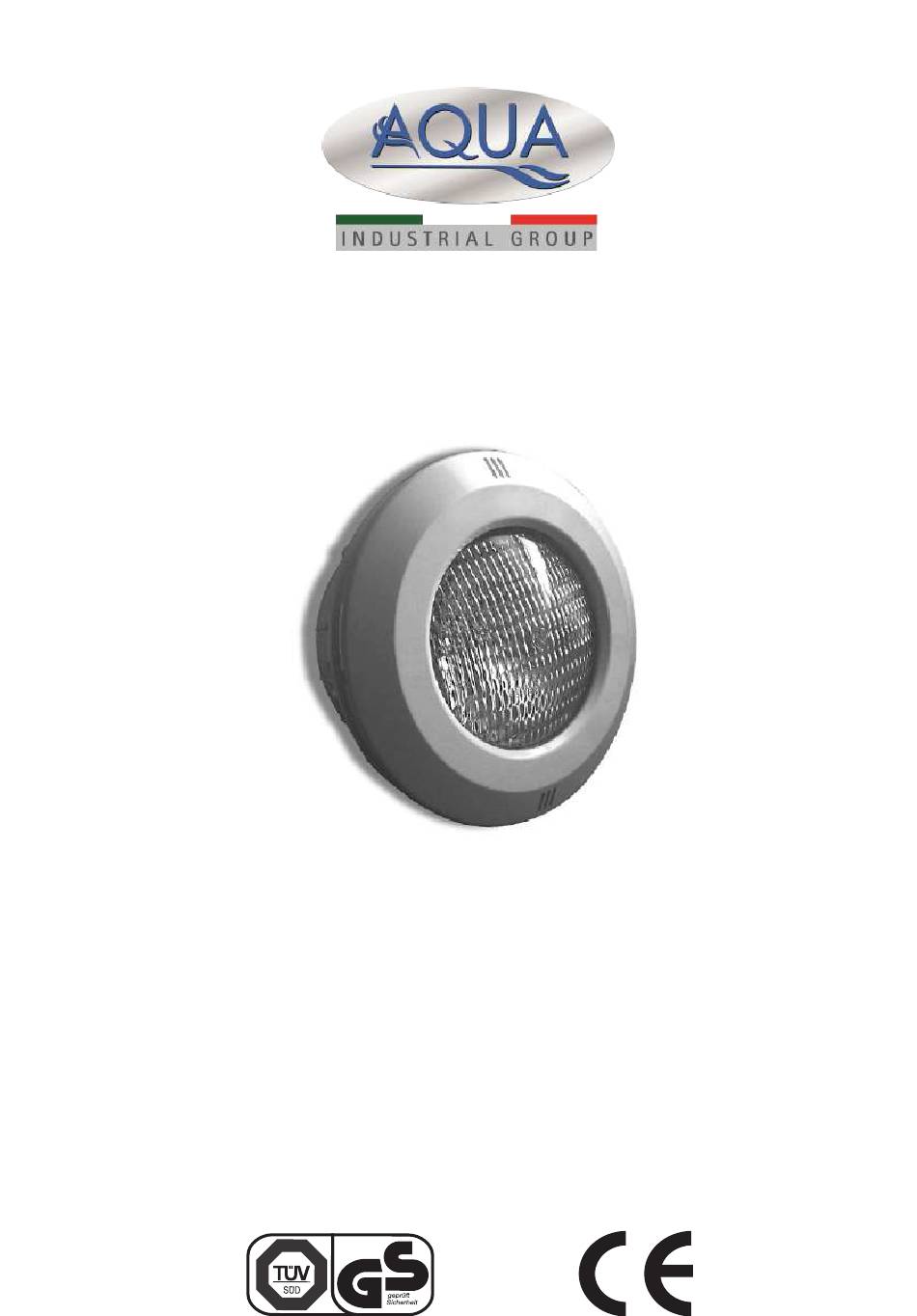

FARO SUBACQUEO

UNDERWATER LIGHT

PROJECTEUR SOUS-MARIN

UNTERWASSER-SCHEINWERFER

PROYECTOR SUBACUÁTICO

Table of Contents

Need help?

Do you have a question about the STANDARD Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Aqua STANDARD Series

Page 1 MANUALE DI INSTALLAZIONE E MANUTENZIONE INSTALLATION AND MAINTENANCE MANUAL MANUEL D’INSTALLATION ET D’ENTRETIEN EINBAU-UND BETRIEBSANLEITUNG MANUAL DE INSTALACIÓN Y MANTENIMIENTO “STANDARD” SERIE Halogen bulb FARO SUBACQUEO UNDERWATER LIGHT PROJECTEUR SOUS-MARIN UNTERWASSER-SCHEINWERFER PROYECTOR SUBACUÁTICO...
Page 2 IMPORTANT: The following operating manual contains fundamental information regarding the safety measures useful for installation and commissioning of the projector service. It is imperative that the installer and user read the instructions before beginning installation and commissioning. Please keep this manual for future reference regarding the operation of this device. For maximum efficiency of the underwater projector carefully follow the instructions below.
Page 3 Prefabricated swimming pool: To install a floodlamp in prefabricated swimming pool make a circular hole with a diameter of 240 mm (Fig. 2). Install the housing (no. 12) and one of the adhesive joints (no.18) on the outer side of the pool. Install the other adhesive joint.
Page 4 Piscina cemento Piscina prefabbricata Concrete pool Prefabricated pool Fig.1 Fig.2 Fig.3 Fig.4 Fig.5 Fig.6 Fig.7...
Page 5 Fig 8 Fig 9 Fig 10 Fig 11...
Page 6 • DATI TECNICI Ø 280 • TECHNICAL CHARACTERISTICS • CARACTERISTlQUES TECHNIQUES • TECHNISCHE ANGABEN • CARACTERÍSTICAS TÉCNICAS MODELLO STANDARD Tensione nominale/ Rated voltage/ Tension nominale/ Anschlusspannung/ Tensión nominal. 12 V Tipo de corrente/ Current supply/ Type de courant/ Stromtype/ Tipo de corriente Lampada/ Lamp/ Lampe/ Lampe/ Lámpara.
