WORNG Electronics Vertex Manual

Thank you for purchasing a WORNG Electronics Vertex stereo VCA, we
hope it's just what you need to bring your modular system into the
world of stereo.
Connecting your Vertex:
Vertex requires 8hp of space in your Eurorack system, and a depth of
25mm. Connect the included power cable to the back of the module
and to your power busboard. The connection on the module is
shrouded and can only go one way, but is also marked with a line to let
you know which way the red stripe should be facing. The module is also
protected against damage from reverse power connection, but you
should still always be careful connecting power.
WORNG Electronics Vertex manual
Vertex essential concepts:
Vertex is much more than just two mono VCAs
with common controls to perform stereo duties, it
uses a combination of four linear and exponential
VCAs to give you convenient and powerful control
of stereo signals.

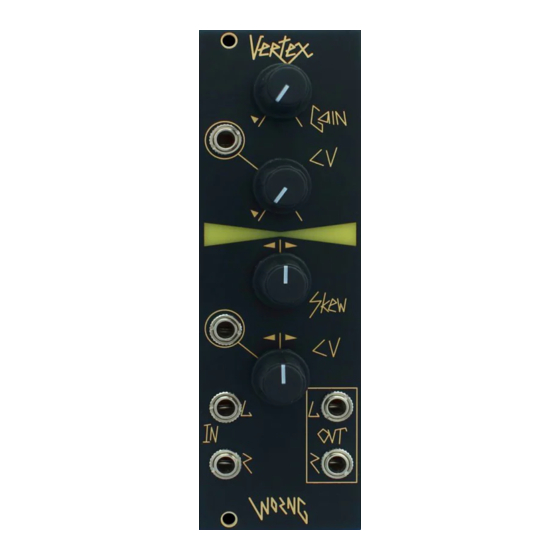

At the top of the module you will find the Gain and
Gain Cv Amount controls, along with a Gain CV
input. These set the gain for both L and R channels
together. The CV amount has enough range to use
with envelopes from 5V to 10V, as well as bipolar
CVs.
Below the Gain controls are a pair of LED indicators
to clearly show you the amount of CV being sent to
the L and R VCAs. These amounts are controlled by
both the Gain and Skew controls, as well as their
CVs.
