BULB REPLACEMENT ：
1.
This searchlight use H3 base Bulb (Xenon or Halogen).
2.
Release the front frame to take Lens and Reflector out.
3.
Replace the bulb.
＊IMPORTANT NOTE：
Human Hands should not touch glass tube to avoid
bulb life reduced.
SAFTY NOTICE ：
◎
H.I.D. bulb do NOT switch on and off within 5 seconds or it will reduce bulb and
electronic board life
◎
Magnetic mount is designed for portable usage.
It's dangerous to use this searchlight while sailing or driving without installation.
◎
FCC RULE Part. 15.21 ： The changes or modifications not expressly approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
◎
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
◎
This searchlight is a Radio Frequency (RF) device which operates on Channel
433.92MHz.It will send out RF energy when it is on operating.
1. RF energy may affect some electronic equipment.
2. Some electronic equipment on vehicle or boats may be affected by RF energy.
Packing included ：
Model 970 Searchlight
Optional Control Accessory
Handheld Wireless Remote Control Unit
TX-SL003B-2 (Dual Speed Function)
Handheld Wired Control
Dash-mount Wired Control
Wired Toggle(Joystick) Control Panel
ME-03-0008 V.MAY14

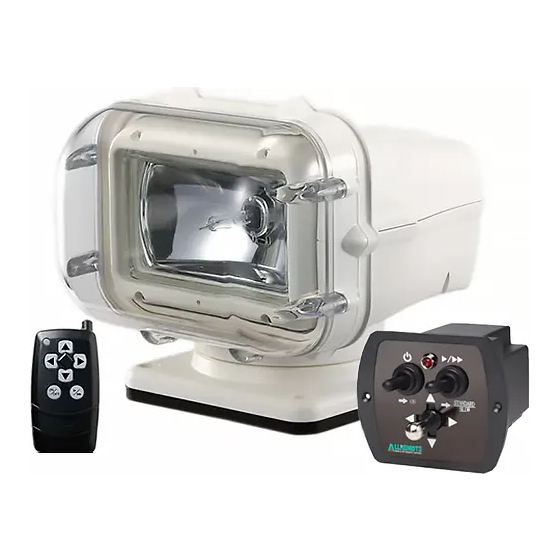

Multi-Function Motorized Searchlight
FEATURES ：
440 degree Rotation 120 degree Tilt
Programmable Handhold Wireless Remote Control Unit
UV Ray and Saltwater Resistant
Be applied in
Security, Sports, Working and Boating Multi-Function.
SPECIFICATION ：
Housing Color : Black / White
Dimension：
Unit：mm
Bulb ：
Halogen Bulb Type H3 12V 55W
12V DC 55W 5.6Amps / 24V DC 70W 2.8Amps
Xenon Bulb (High-Intensity Discharge)
12V/24V DC 35W 9.5 Amp Max at cold start;
3.5 amp max steady operation at 12v
3 amp max steady operation at 24v
Beam Pattern: Spot
Performance：440 degree Rotation / 120 degree Tilt
Radio Frequency ：433.92MHz
Wireless Remote Battery: 23A*2pcs
Wireless Remote Operation Distance: 65 Meters
Power ：DC 12V / 24V
Weight ：2.3Kgs / 5.1 lbs (Permanent Mount)
2.7Kgs / 6.0 lbs (Magnetic Mount)
Model 970 Series
Instruction Guide
Advertisement
Related Manuals for Allremote Wireless Technology 970 Series
Summary of Contents for Allremote Wireless Technology 970 Series

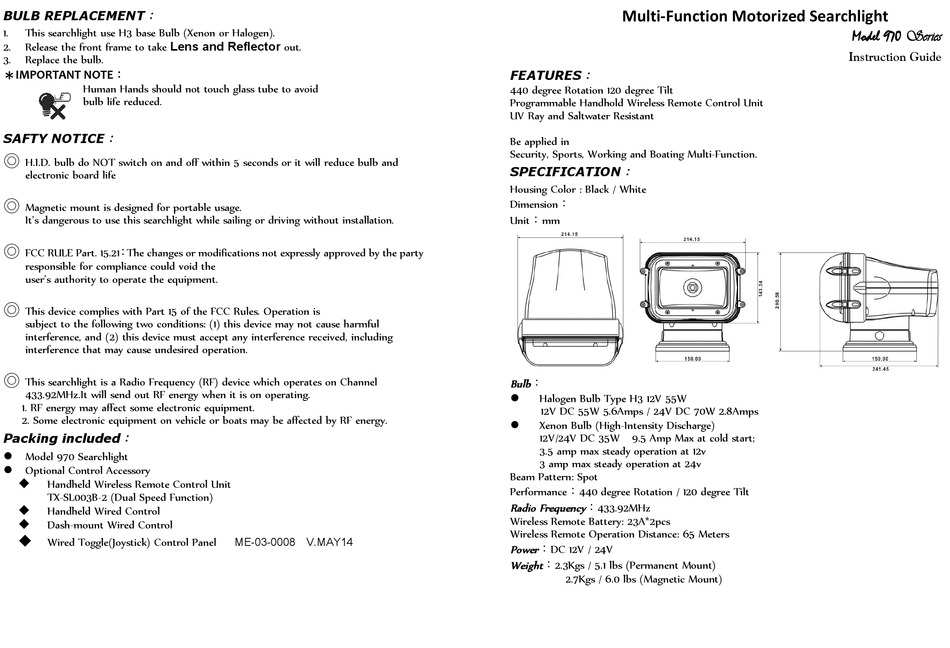

- Page 1 Multi-Function Motorized Searchlight BULB REPLACEMENT ： This searchlight use H3 base Bulb (Xenon or Halogen). Model 970 Series Release the front frame to take Lens and Reflector out. Instruction Guide Replace the bulb. ＊IMPORTANT NOTE： FEATURES ： Human Hands should not touch glass tube to avoid 440 degree Rotation 120 degree Tilt bulb life reduced.
- Page 2 INSTALLATION ： 970 Series Lights Exploded View No.1: Upper Housing Unit：mm No.2: Ballast (HID Type) No.3: Motor Holding Structure No.4: Rotation Gear Ring No.5: Lower Housing No.6: Upper Base No.7: Middle Base No.8: Lower Base Permanent Mount Dash-mount Wired Handheld Wired Control socket No.9: Horizontal Holding...
