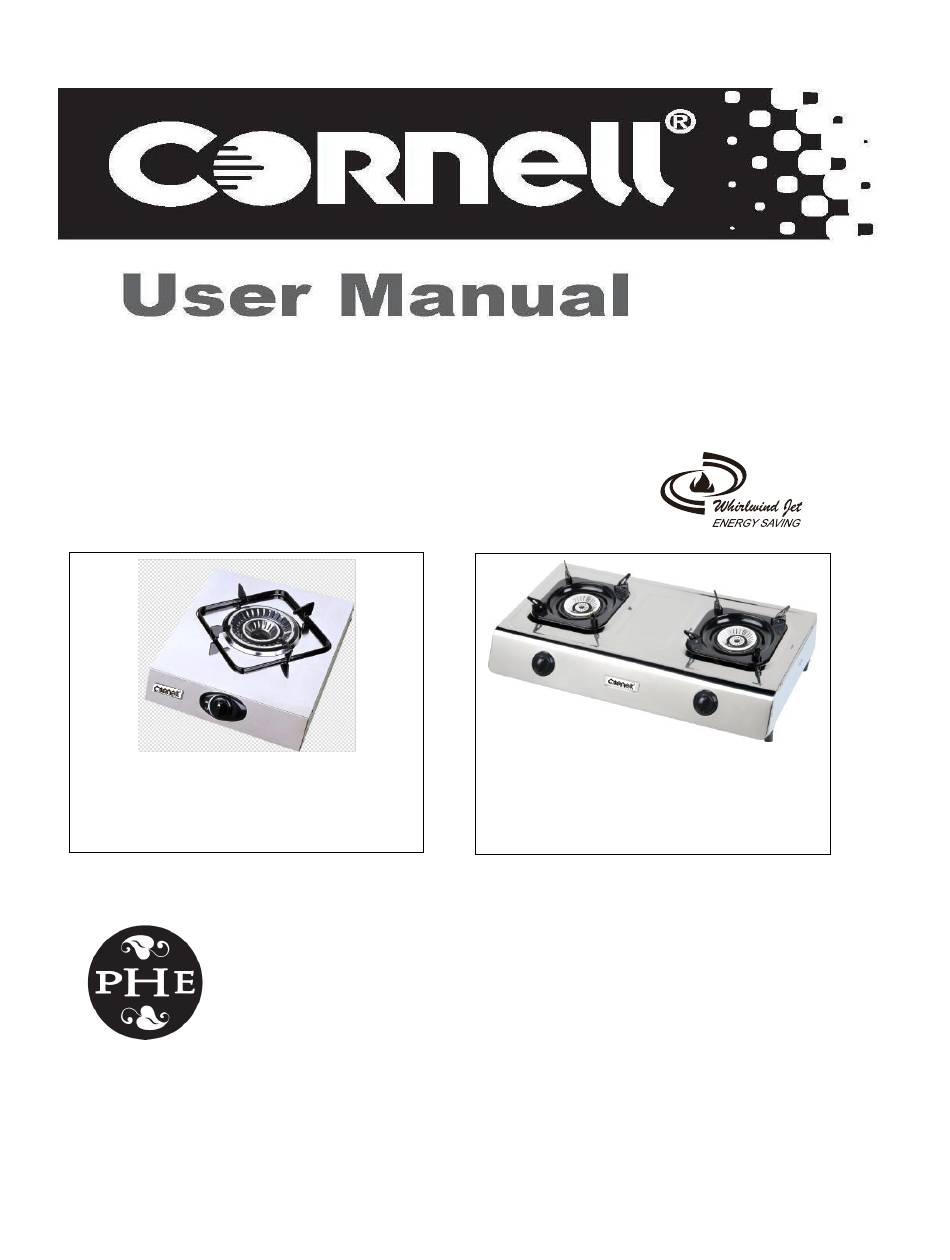

- Page 1 CGS-P1102SSD CGS-P125SSD CGS-P125SSD GAS COOKER CGS-P1102SSD...
-
Page 2: Table Of Contents
Attention Contents Important safety information 3 - 6 Specifications 7 - 8 CGS-P125SSD CGS-P1102SSD Using the gas table top hob 9 - 11 Before first use The gas table top hob Automatic ignition with flame failure safety device Energy saving tips... -
Page 3: Important Safety Information
Important safety information Your safety is of the utmost importance. Please ensure that read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact AMTEK MARKETING SERVICES PTE LTD. - Page 4 o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface. o Repairs may only be carried out by AMTEK MARKETING SERVICES PTE LTD service engineers or their authorised service agent.
- Page 5 During use o Any film or stickers that are present on the hob surface when it is delivered should be removed before use. o Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.
- Page 6 o Make sure that all of the cooking zones are switched off after use. Cleaning o Cleaning of the hob should be carried out on a regular basis. o IMPORTANT: Before attempting to clean the appliance, it should be disconnected from the mains and cool. o Great care should be taken whilst using this appliance and when following the cleaning procedure.
-
Page 7: Specifications
Specifications Gas Cooker surface layout CGS-P125SSD A = 4.50 kW outer ring Φ125mm and inner ring Φ70 burner Min heat input 0.9KW F = Control knob Product dimensions: Depth: 415 mm Width: 300 mm Height: 97 mm Product specifications: o 1 x 4.50 kW outer ring Φ125mm and inner ring Φ70 burner... -
Page 8: Cgs-P1102Ssd

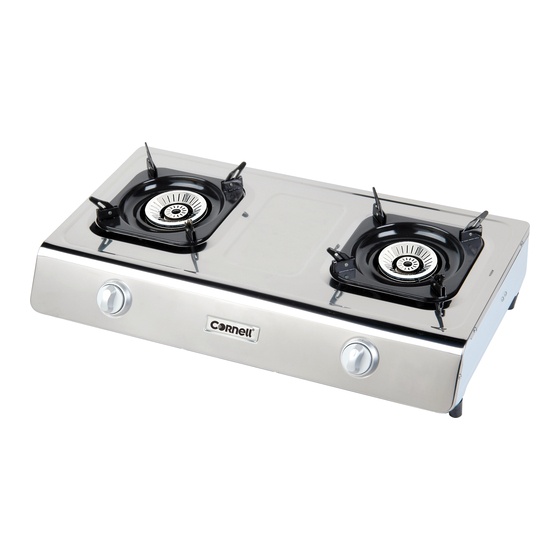

CGS-P1102SSD B= 4.20 kW outer ring Φ110mm and inner ring Φ40 burner Min heat input 0.6KW F = Control knob Product dimensions: Depth: 300 mm Width: 690 mm Height: 115 mm Product specifications: o 2x 4.20 kW outer ring Φ110mm and inner ring Φ40 burner o Front control operation o Black enameled pan stands o Automatic ignition... -
Page 9: Using The Gas Table Top Hob
Using the gas table top hob Before first use IMPORTANT: You should clean the hob surface (see “Cleaning and maintenance” section). The following symbols will appear on the control panel, next to each control knob: Black circle: gas off Large flame: maximum setting Small flame: minimum setting o The minimum setting is at the end of the anti-clockwise rotation of the control knob. -
Page 10: Automatic Ignition With Flame Failure Safety Device
Automatic ignition with flame failure safety device The appliance is fitted with a flame failure safety device on each burner, which is designed to stop the flow of gas to the burner head in the event of the flame going out. To ignite a burner: o Press in the control knob of the burner that you wish to light and turn it anti-clockwise to the maximum position. -
Page 11: Energy Saving Tips
Energy saving tips o The diameter of the bottom of the pan should correspond to that of the burner. o The burner flame must never extend beyond the diameter of the pan. o Use flat bottomed pans only o When possible, keep a lid on the pan whilst cooking. o Cook vegetables with as little water as possible, to reduce cooking times. -
Page 12: Cleaning
Cleaning Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process. Cleaning the hob top Any residues that are left on the hob top surface from cleaning agents will damage it. -
Page 13: Cleaning The Hob Burners
Cleaning the hob burners The hob burners should be cleaned once a week or more frequently if they get soiled. o IMPORTANT: Make sure that the hob surface, pan stands and hob burners have cooled before you attempt to touch them. o Remove the hob burners by pulling them upwards and away from the hob top. -
Page 14: Installation
Installation The installation must be carried out by a registered installer, in accordance with the current version of the following. Gas connection This appliance must be installed by a competent person Important information o The appliance must not be installed in a bathroom or shower room. - Page 15 Ventilation requirements o The room containing the hob should have an air supply in accordance with the current edition of BS 5440: Part 2: o The room must have opening windows or equivalent; some rooms may also require a permanent vent. o If the room has a volume between 5 and 10m³, it will require an air vent of 50cm²...
-
Page 16: My Appliance Isn't Working Correctly
My appliance isn’t working correctly IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and contact AMTEK MARKETING SERVICES PTE LTD. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.
