HME ServerCall 12 Quick Setup Manual

Components
•

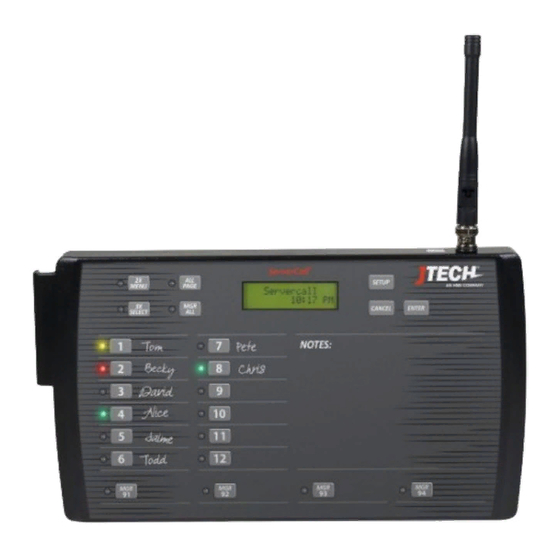

JTECH Transmitter
Applies to models: ServerCall (12/24)
& ServerCall Cancel Panel (12/24)
•
Rugged Pagers
•
Rugged Charger
Step 1
Mount the transmitter to the cook line using the
included brackets. Bracket can also be used as a
stand by reversing its position on the back of the
transmitter.
Step 4
Compile charger bases and connector wires if
applicable. Plug charger power supply into
charger and then into a standard outlet. Surge
protection is recommended for charging bases.
©2017 JTECH, an HME Company logo and product names are registered trademarks of HM Electronics, Inc. All rights reserved.
ServerCall
Step 2
Lock the antenna to the transmitter by placing the
antenna on the connector and twisting left to lock
into place.
Connector Wire
Step 5
Add pagers to charger slots. You will see a BLUE
light on each pager. This indicates the charging
status.
®
Paging w/Rugged Staff Pagers
Quick Setup Guide
Step 3
Plug the power supply in to the transmitter and
then into a standard outlet. A surge protector is
recommended.
> 'LO' on the number display: Battery is below
20% charged and SHOULD NOT be used.
> Flashing BLUE: Pager is charging and CAN BE
used.
> Solid BLUE: Pager is fully charged.
> Allow 4 hours for a complete charge of the
pagers.
QSSCRG-1
