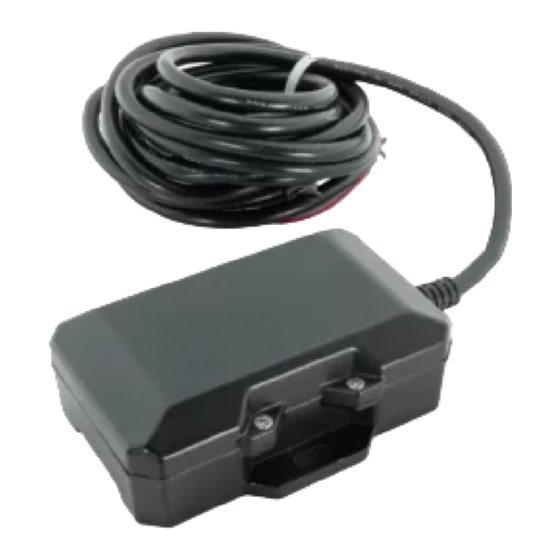

Summary of Contents for Echomaster EFS-CA1200
- Page 1 EFS-CA1200 INSTALLATION MANUAL...
- Page 2 High voltage supported • Configurable I/O In and outputs • Built-in Accelerometer With EFS-CA1200, your mobile assets are in good hands. This durable IP66 • Movement notification rated asset tracker will add GPS tracking and asset manager to fleet equipment, •...
- Page 3 STEP 1: INSTALLATION PREPARATION INSTRUCTION It is important to note that the EFS-CA1200 battery in the device should be charged before the installation, you can connect the Red power wire and the Black ground wire to a 12-volt battery for 4 hours or make sure the Asset you are working on has a fully charged battery.
- Page 4 CONFIRMING THE LED LIGHTS Upon initial power-up of the EFS-CA1200, the LEDs on the top of the device will start flashing, Identifying the Mode status of the device. Note: The vehicle must be outside with a non-obstructed view of the sky for its first location to be set in the application.
- Page 5 7. In the list of devices, find the device you just 4. Select Add Vehicle installed. Click the from the upper right “>” symbol on the corner right side to open that device, and assign it to the vehicle you just added.
- Page 6 Issue Cause Unit Does Not Power is not connected to the unit. With a Digital Volt- Power-up meter, measure the voltage at the input to the unit. A positive voltage should be measured on the + terminal SPECIFICATION CHART of the unit when measuring between the + terminal and the - terminal or chassis ground.
- Page 7 Phone – 866-931-8021 E-Mail – support@aampglobal.com EchoMasterFleetSolutions.com...
