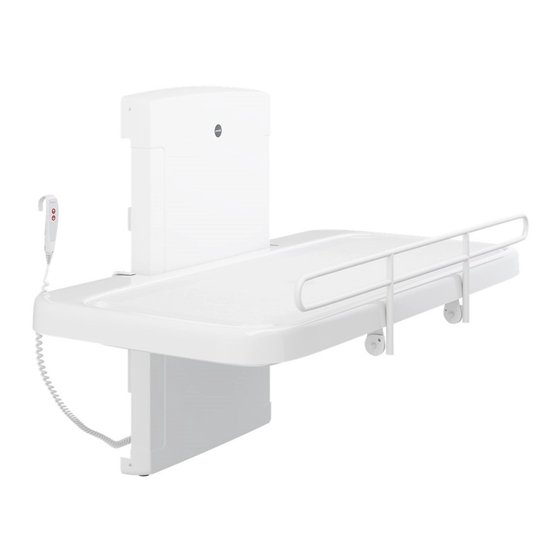

Nursing bench 2000 – Operation and maintenance manual
Bruseplejebriks 2000 – Brugs- og vedligeholdelsesvejledning
Dusch- und Pflegeliege 2000 – Gebrauchs- und Pflegeanleitung
Table de douche 2000 – Manuel d'utilisation et d'entretien
Verpleegbank 2000 – Gebruiks- en onderhoudshandleiding
Duschbrits 2000 – Bruks- och underhållsanvisning
Dusjstellebord 2000 – Bruks- og vedlikeholdsveiledning
Camilla de ducha 2000 - Instrucciones de uso y mantenimiento
R8468
R8478
RB2290
en
dk
de
fr
nl
sv
no
es
Advertisement
Table of Contents
Related Manuals for Pressalit Care R8468
Summary of Contents for Pressalit Care R8468
- Page 1 R8468 R8478 RB2290 Nursing bench 2000 – Operation and maintenance manual Bruseplejebriks 2000 – Brugs- og vedligeholdelsesvejledning Dusch- und Pflegeliege 2000 – Gebrauchs- und Pflegeanleitung Table de douche 2000 – Manuel d’utilisation et d‘entretien Verpleegbank 2000 – Gebruiks- en onderhoudshandleiding Duschbrits 2000 –...
- Page 2 English ..............3 Dansk .
-
Page 3: Table Of Contents
Content General safety ..........4 Symbols used in this manual. -
Page 4: General Safety
• The information in this manual is based on correct fitting of the product in accordance with our Assembly instruction. • Pressalit Care cannot be held liable if the product is used in any way which differs from that described in the guide. -
Page 5: Symbols Used In This Manual
Symbols used in this manual The following symbols are used in this manual as well as the associated documentation supplied with the product. WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION indicates a potentially CAUTION hazardous situation which, if not... -
Page 6: Product Label
Product label DD-MM-YYY XXX V IPXX RZZZZYYYXXX(X) XX-XX Hz XXX kg XXX kg XXX kg XXX lbs XXX lbs XXX lbs Pressalit A/S • Pressalitvej 1 • DK - 8680 Ry • T: +45 8788 8777 E-mail: pressalit@pressalit.com • Web: www.pressalit.com This product is CE-marked in accordance with the European Medical Device Directive 93/42/EEC, including amendments incorporated in Directive 2007/47/EEC. - Page 7 This product does not contain any of the hazardous substances mentioned in the Council Directive 2011/65/ EC on RoHS. Do not dispose as unsorted municipal waste. The product should be collected separately and returned to the designated recycling service. Name and adress of manufacturer. Maximum user weight XXX kg XXX kg...
-
Page 8: Intended Use
Product label placement Intended use This product is intended for bathing a person who is unable to stand up or sit down. The person is lying horizontally on the bench. Intended operator profile The product is to be used by personnel trained in health care and trained in washing a person in their care. -
Page 9: Assembly And Installation
Assembly and installation For assembly and installation, please refer to the assembly instruction supplied with the product. R8468 - R8478 RB2290 Assembly Instruction Montage-voorschrift Assembly Instruction Montage-voorschrift Monteringsvejledning Monteringsanvisning Monteringsvejledning Monteringsanvisning Montageanleitung Monteringsveiledning Montageanleitung Monteringsveiledning Notice de montage Instrucciones de montaje... -
Page 10: Versions
Versions The nursing bench comes in two versions, and the safety rail in one version. R8468 R8478 RB2290... -
Page 11: Operating Instructions
Operating instructions Support the bench using your hand or body when folding it down, to avoid the risk of damage. The built-in gas cylinders make it easy to fold the bench up against the wall after use. Take care to avoid injury to hands when in the vicinity of closing mechanical parts... -
Page 12: Height Adjustment
Height adjustment When the bench is installed at the correct height (recommended installation height is 868 mm above the floor), it can be adjusted between 300 and 1000 mm above the floor. The height adjustment is controlled by the wired remote control unit. -
Page 13: Cleaning
Cleaning Clean the nursing bench after each use. Use ordinary soapy water. Rinse off with fresh water and dry with a soft cloth. The frame with the PVC mesh cover can be removed for cleaning. The mesh cover can be zipped off and washed in regular washing machine at max 70 Dry the water collection tray... -
Page 14: Disinfection
Disinfection When using the nursing bench for multiple patients, it is necessary to both clean and disinfect the nursing bench between uses on different patients to prevent the risk of cross infection. A list of suitable cleaning agents and disinfectants can be found at www. pressalitcare.com CAUTION Always read the material safety data sheet (MSDS) and supplied... -
Page 15: Maintenance
Maintenance Expected service life of the nursing bench is 10 years, provided that maintenance is carried out as described below: It is recommended on a weekly basis to run the motors on the product to their maximum positions by raising the product to its full height, and then lowering it to its lowest position, so that the internal parts are lubricated. - Page 16 Remove the upper and lower retaining screws on the lift unit cover and carefully remove the cover. • Check the wall brackets tighten if necessary. • Oil moving parts with WD40, especially the sliding brackets • Check all electrical connections to the control box •...
-
Page 17: Trouble-Shooting
Oil the sliding brackets runs up and down are not properly as described under unevenly. lubricated. Maintenance, Contact Pressalit Care or your dealer if the problem cannot be remedied. Do not attempt to repair the product yourself, as this will invalidate the guarantee. -
Page 18: Technical Data
Max load 175kg Materials Powder laquered stainless steel Plastics PVC (mesh cover) Dimensions R8468: 875 mm x 1800 mm (width x length) R8478: 899 mm x 1800 mm Weight R8468: 67 kg R8478: 73 kg IP class The product has an ingress protection class rating of IPX6. -
Page 19: Disposal And Recycling
Disposal and recycling The unit contains reusable materials. There are no known hazards or risks associated with disposal of the product. All components can be discarded after having been cleaned and disinfected. When disposing of the product, we recommend that it be disassembled and broken down into different waste groups for recycling or combustion.
